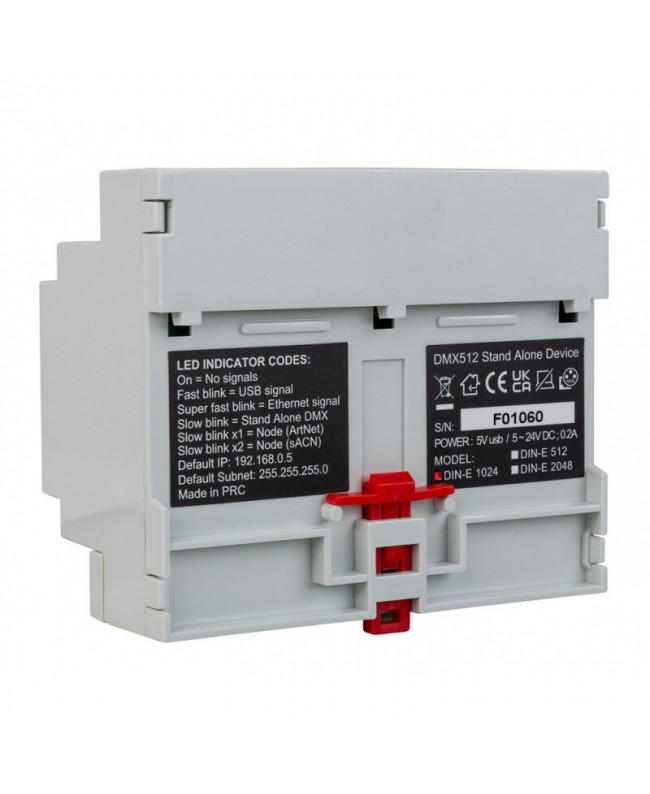

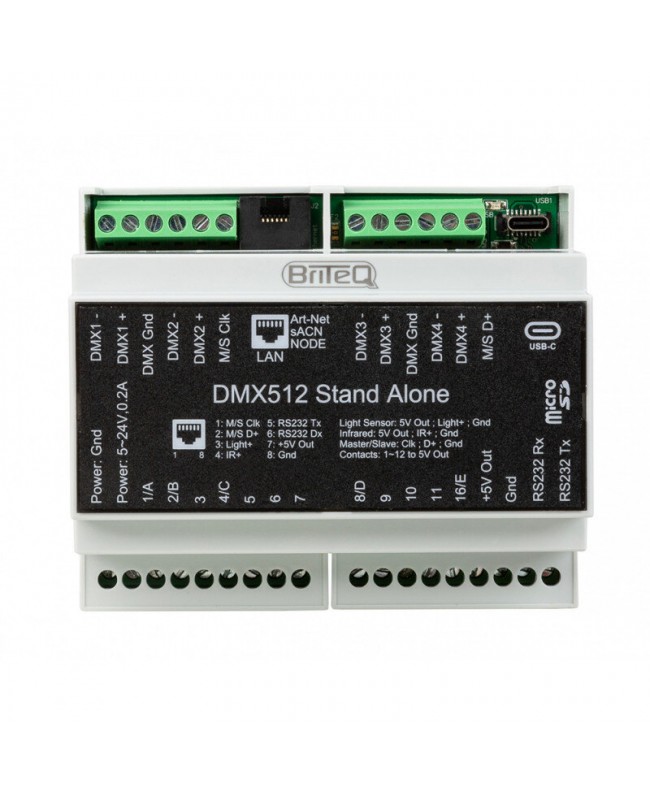

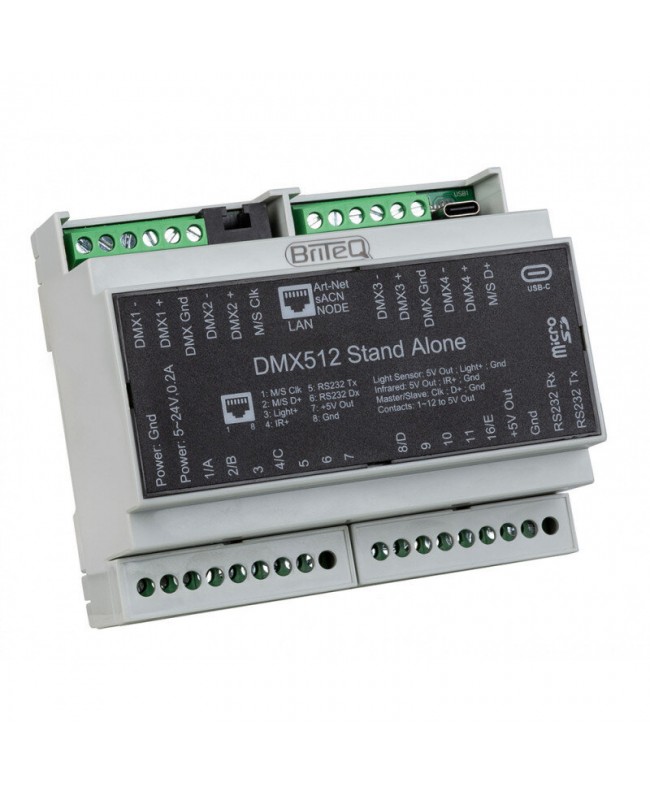

Briteq LD-1024DIN NET

1024 Channel DMX interface and amp; Multizone controller with Ethernet port for Local Area Network (LAN, WLAN) that can be easily mounted on a DIN Rail.

• Main features
• 1024-Channel DMX interface with Ethernet port for LAN or WLAN
• Can be used with the Wi-Light APP from a mobile device (Android and #43; i. OS)
• 1024 Output channels when used with a computer
• Multi-zone 1024 output channels when used stand-alone
• 30 Minutes of timeline sync of lights, audio and video with Pro DMX software
• Works with Chromateq Led Player, Pro DMX, Pixxem, Studio DMX and Wi-Light 2 software (included)
• Functions and control in standalone mode:
• Art-Net and s. ACN from SD card (including triggers)
• Node to decode Art-Net and s. ACN in DMX (4 universes)
• Automatic real time clock triggering for different scenes (day, week, month, year)
• External Triggering via 12 smart contacts
• RS232 input / output (16 characters for RS232 triggers, commands or commands)
• UDP / Ethernet triggers and commands (from SDK)
• Default start scene, scene priority, crossfade time
• Full control via the Wi-Light 2 app (Android and i. OS)
• Control multiple zones: 10 different programs can run simultaneously
• Master/Slave mode for up to 64 interfaces connected together
• An optional external infrared receiver (LD-512Kit-IR and #61; IR receiver and #43; 2 remote controls) can be connected to the unit
• Micro SD card slot for memory extension
• Power: 5 - 24 VDC, 0.2 A or 5 VDC input via USB-C
