Briteq LD-NET16-E Software Controllers
  • -22%
  • New

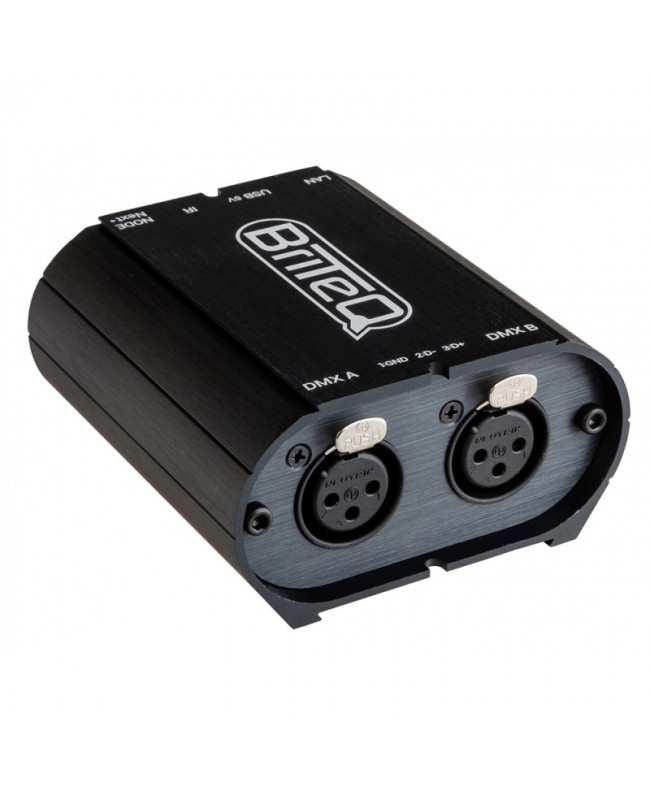

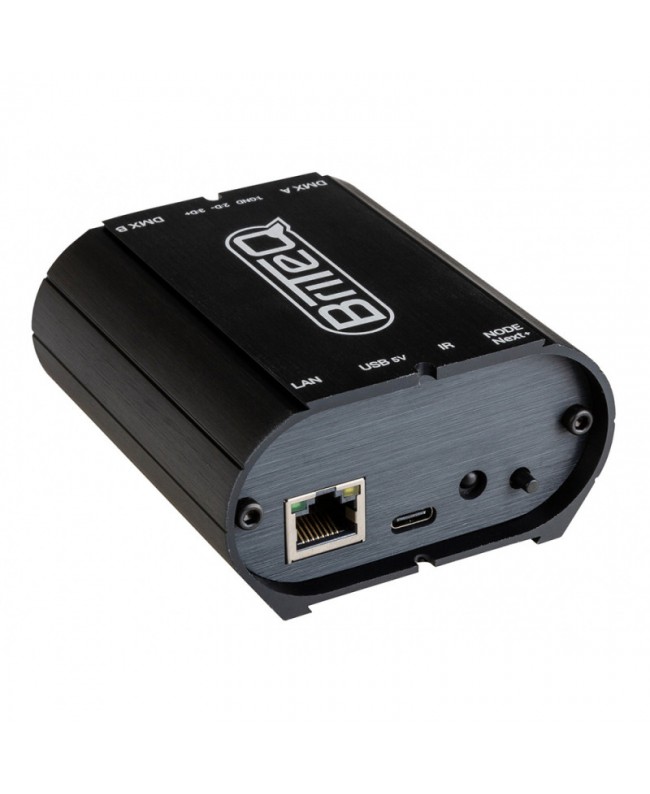

Briteq LD-NET16-E


€584.00
€454.00 -22%
Tax included
Lowest price within the last 30 days: €454.00

DMX interface 1024 ch and 16 Art-Net universes


Qty

In Stock

Delivery

Do You want Your order by Friday, 03/07/2026? Order within 3 hours and 4 minutes

Free shipping


wishlist

Briteq LD-NET16-E



1024 Channels DMX interface (when connected to PC) and 16 Art-Net universes. This controller is ideal for more demanding projects when a high number of DMX channels are needed and/or when all the fixtures use the Art-Net protocol and have an IP-Ethernet cable wiring. Main features:

Up to 16 Art-Net universes (8192 DMX channels) per connected box to the PC when using the LED PLAYER or PRO DMX software. The Art-net will be sent over the RJ45 network connector of your PC

  • 512 Channels in Stand Alone ((200 KB internal memory = 200 to 2000 DMX steps)
  • Up to 64 Art-net universes (32,768 DMX channels) per connected box to the PC when using the Pixxem software
  • 4 Dry Contacts on 3 ~ 5 V (On, On/Off, Release, Restart, Scene Priority)
  • Infrared receiver (with optional IR remote)
  • 10 Scene selections, scene speed, general dimmer and next scene
  • 1 NEXT button for scene selection
  • 24 Hour Timeline for synchronized Lighting, audio and video loops! (Pro DMX software)

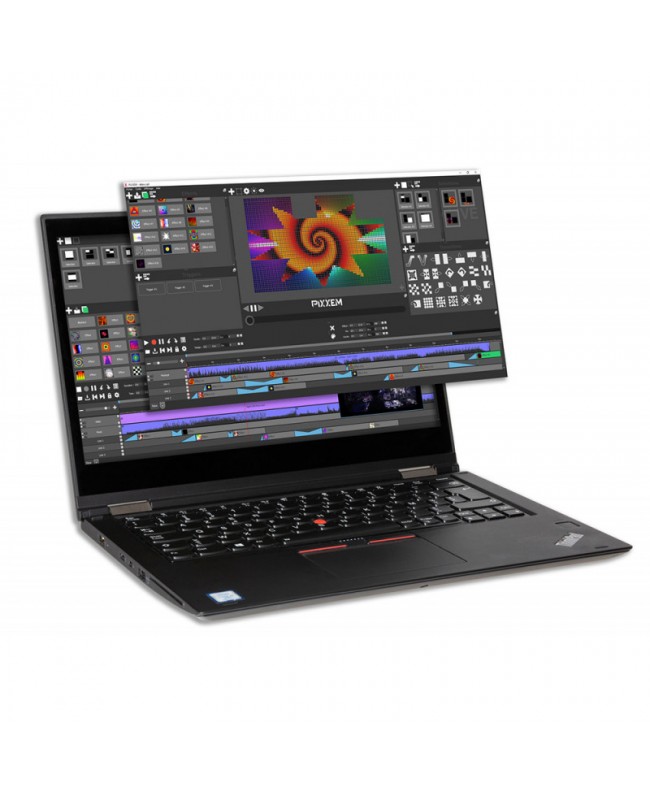

  • Works with the Chromateq Led Player, Pro DMX and the Pixxem software (included)
  • 3-Pin XLR connectors
  • Power supply for the use in stand-alone mode: 9 -36 V via DC connectors
  • An optional external infrared receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
  • General: Dimensions (cm): 7 x 9 x 5
  • General: Weight ( kg): 0.5
  • General: Energy Label: No
  • General: Color: black
  • General: Display: none
  • General: IP rating: indoor
  • Control: Protocol: Art-Net, DMX
  • Control: programmable: Yes
  • Control: upgradable software: Yes
  • Control: maximum DMX channels: 8192
  • Connections: input: 3-pin XLR, usb, RJ45
  • Connections: output: 3-pin XLR

BEG-B05033
