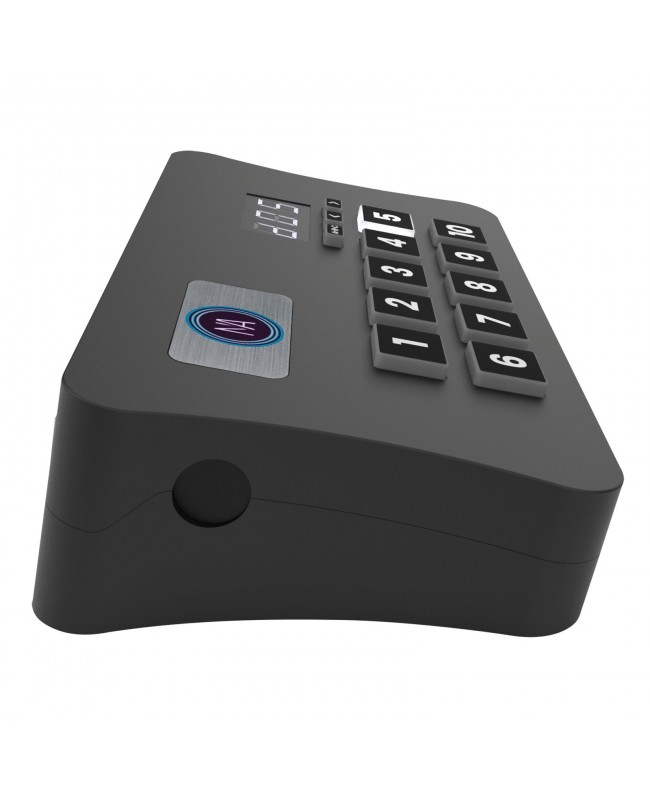

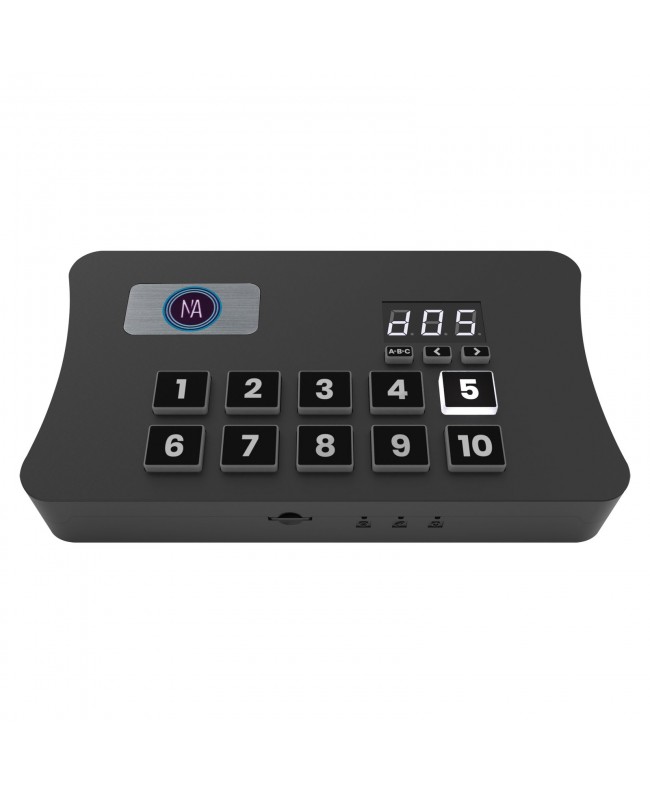

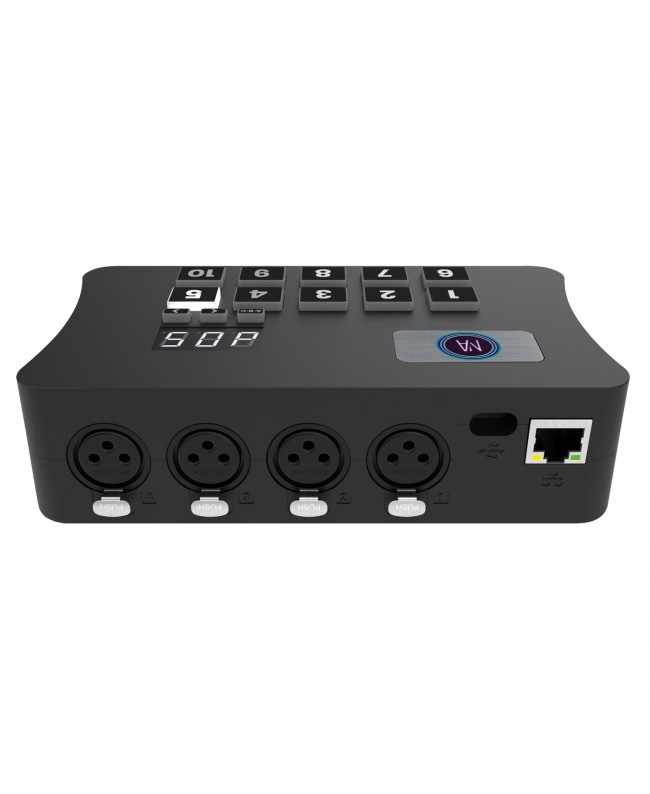

NICOLAUDIE ARCHITECTURAL SLESA-U11 Smart DMX interface

The Nicolaudie Architectural SLESA-U11 is a USB-C to DMX interface that can also work stand-alone with user-programmable presets. It can control 2 universes of DMX (1024 channels) and can be upgraded to 4 universes (2048 channels). It offers 5-zone control with 99 scenes that can be stored on a microSD card. The backlit keypad allows direct selection of a zone and a preset. The SLESA-U11 has 16 GPIO trigger inputs and scenes. It can also be triggered based on date/time and via TCP/UDP commands sent over the Ethernet connection.

When connected to an external router via the Ethernet port, the SLESA-U11 can be controlled from a smartphone or tablet using Arcolis Remote Pro or Arcolis Remote apps. Via the USB-C connection, it is programmable via ESA Pro 2, ESA2 and Daslight 5 (Windows and MacOS), as licences for both software suites are unlocked, making the SLESA-U11 suitable for fixed installation applications as well as the entertainment market. Power is supplied via USB-C (power supply not included).

• Compact and easy-to-use DMX controller with RDM
• 2 DMX universes (1024 channels) in standalone and PC mode
• 16 GPIO trigger inputs
• Clock/timer function for automatic scene triggering
• 99 Scenes / 5 zones / 10 preset buttons
• ESA2, ESA Pro 2, and Daslight 5 license included
• Optionally expandable to 4 DMX universes
