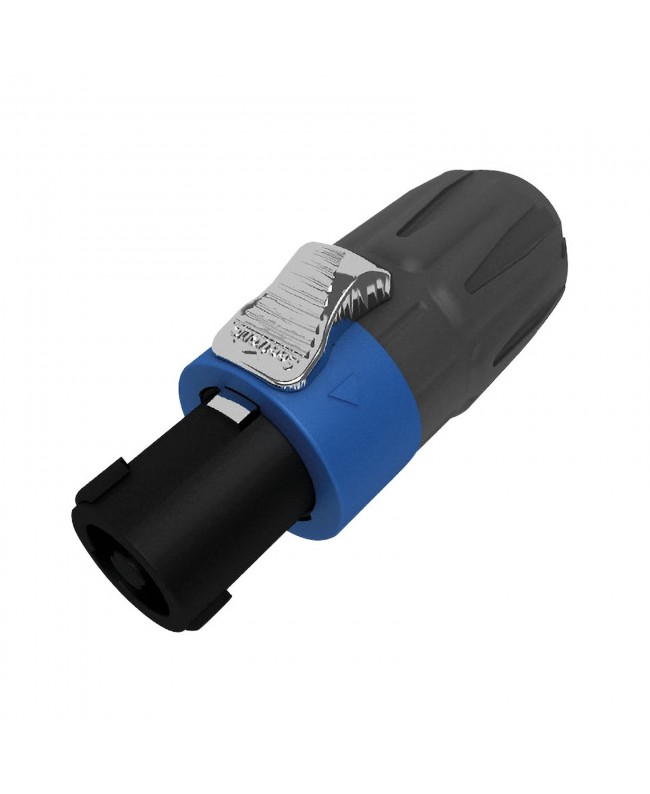

SEETRONIC Speaker 4P Connector - male Blue/black housing
  • New

SEETRONIC Speaker 4P Connector - male Blue/black housing


€3.10
Tax included

Blue/black housing


Out of Stock



wishlist

SEETRONIC Speaker 4P Connector - male Blue/black housing



The Seetronic SL4FXN is a sturdy 4-pole connector intended for loudspeaker signals up to 250 V / 40 A RMS. It is suitable for wires up to 4 mm² with outer diameters between 7 and 14.5 mm. It has silver-plated contacts with less than 5 mΩ contact resistance, an easy to assemble plastic housing with only three parts, and an improved grip on the latch for easy operation.

  • 4-Pole
  • Up to 40 A RMS
  • For wires up to 4 mm² and cables from 7 to 14.5 mm outer diameter
  • Impact-resistant housing
  • Flashover Voltage: 250 V
  • Pins: 4
  • Outer Cable Diameter: 14.5 mm
  • Length (mm): 73.15 mm
  • Height (mm): 27.76 mm
  • Width (mm): 27.76 mm
  • Diameter: 27.76 mm
  • Weight: 0.01 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Polyamide
  • Colour: Black
  • Bushing Colour: Blue
  • Contact Resistance: 5 mΩ
  • Locking Device: Latch
  • Maximum Ambient Temperature: -30 °C
  • Minimum Ambient Temperature: 80 °C

SL4FXN
