Featured Products

SEETRONIC 4-Pin Speaker Chassis Female connector - D-size
  • New

SEETRONIC 4-Pin Speaker Chassis Female connector - D-size

€1.80
Tax included

Female connector - D-size

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 21/07/2026? Order within 0 hours and 35 minutes

Compare

wishlist

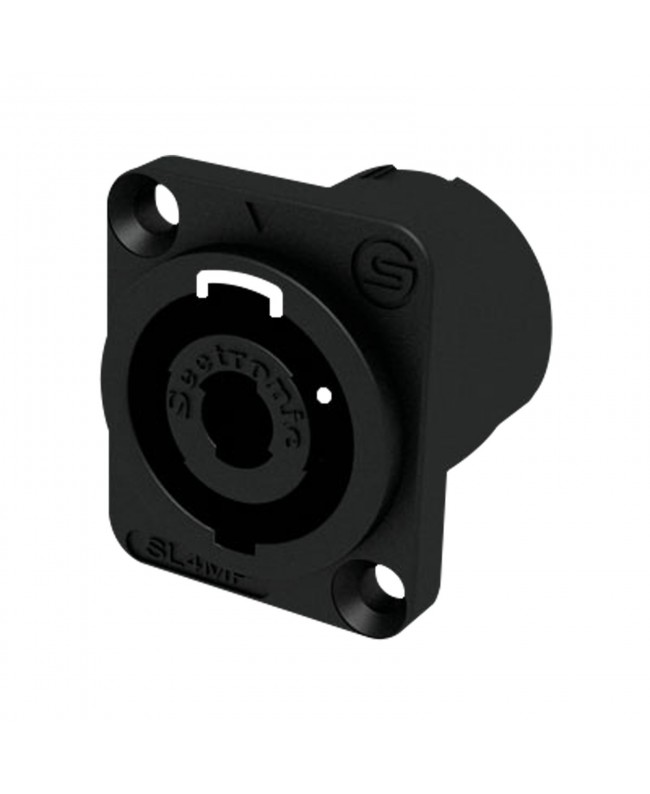

SEETRONIC 4-Pin Speaker Chassis Female connector - D-size



This 4-way heavy duty chassis connector fits D-size holes and installs from the front or the back. It is intended for reliable loudspeaker connections and is airtight. Glass-reinforced materials make it extremely robust and dependable. It uses a quick-lock system to securely lock the matching connector plug in place. It has silver-plated contacts and is rated for currents up to 30 A.

  • Easy locking system
  • Silver-plated contacts
  • Rated up to 30 A
  • Flashover Voltage: 250 V
  • Impedance: 10000 Ω
  • Pins: 4
  • Wire Connection: 4 mm²
  • Maximum Wire Size: 4 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Outer Cable Diameter: 10 mm
  • Length (mm): 35.5 mm
  • Height (mm): 24 mm
  • Width (mm): 26 mm
  • Diameter: 24 mm
  • Weight: 0.01 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Polyamide
  • Colour: Black
  • Bushing Colour: Black
  • Contact Resistance: 3 mΩ
  • Locking Device: Latch
  • Contact Type: Silver plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SL4MP

Data sheet

Color
Black
Giorni di elaborazione
3

Specific References
