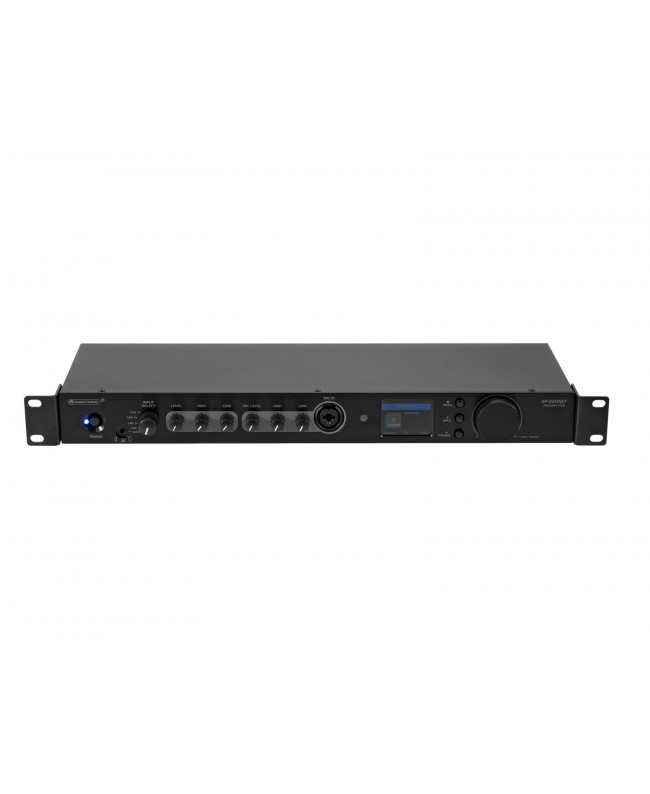

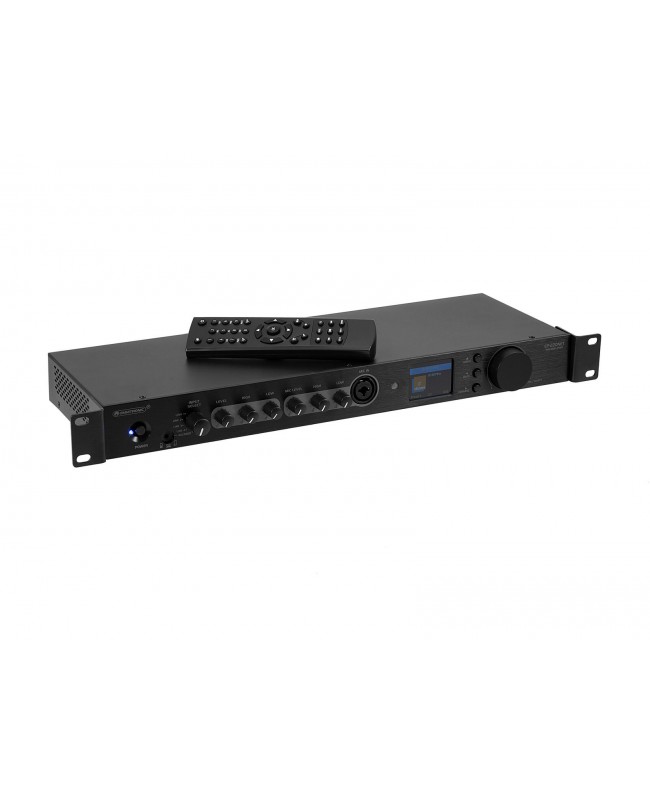

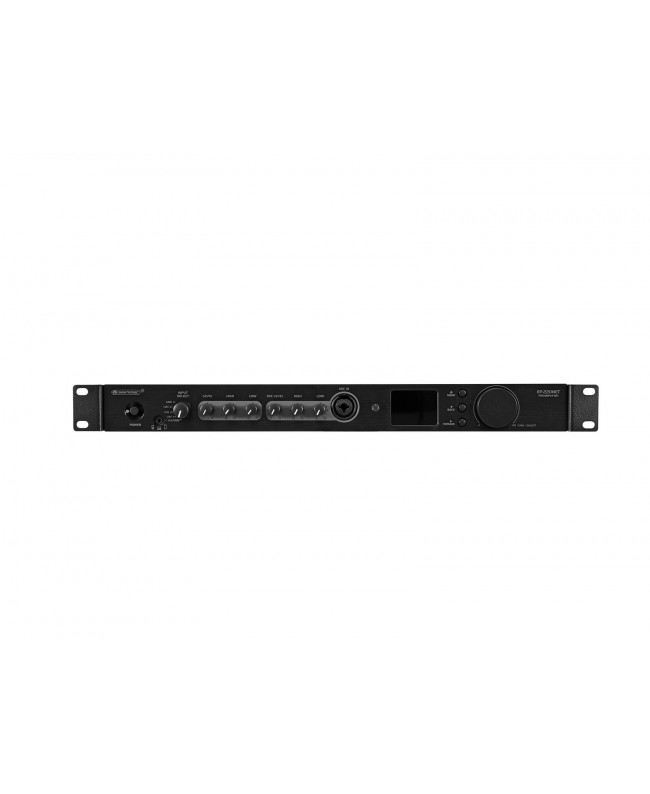

Omnitronic EP-220NET Preamplifier with Internet Radio, DAB+ and Bluetooth

• Internet radio with DAB+ and FM tuner, Bluetooth and UPnP/DLNA support
• Wide range of streaming options via Wi-Fi, LAN jack and Bluetooth
• Large 2 TFT color display, easy jog dial operation, equalizer presets, sleep timer and alarm function
• Access to thousands of radio stations and podcasts worldwide
• Station scan by genre, station name, location
• 4 stereo line inputs (RCA) on the back panel
• 3.5 mm AUX input on the front panel
• 1 combo microphone input with controls for volume, bass and treble on the front panel
• Audio source selector
• Controls for volume, bass and treble
• 3 stereo master outputs
• Digital and analog audio outputs (Toslink, coaxial, RCA)
• Control via Wi-Fi; IR remote control
• 2.4 GHz license-free worldwide
• Multicolor TFT display
• Desktop console housing
• (19) 48.3 cm rack installation possible
• For application areas such as: Installation; restaurants, bars and hotels

Scope of delivery

• 1 x device
• 1 x power cord
• 1 x remote control
• 2 x antenna
• 1 x RCA cable
• 4 x foot
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 6 W
• IP classification: IP20
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20.000 Hz
• S/N ratio: 100 dB
• THD: 0.1 % at 1 kHz
• Wi-Fi: Standard: IEEE 802.11 b/g/n, Security protocol: WEP/WPA/WPA2
• Network connection: Protocol: Ethernet TCP/IP via RJ-45 (F) mounting version, 10/100 Mbit/s
• Impedance: Input: 10 kOhm , unbal., Input: 20 kOhm , bal.
• Control: Wi-Fi; IR remote control
• Bluetooth: Version: 4.2 + EDR
• Bluetooth device name: EP-220NET
• Audio player: FM-tuner + Internet radio + BT + DAB+
• Frequency band: 2.4 GHz
• Housing color: Black
• Display type: Multicolor TFT display
• Tuner frequency range: FM 87-108 MHz, DAB(+) 174.928-239.200 MHz
• Control elements: Power switch, source selector, level control, tone control, menu; navigation keys, encoder
• Status LED: Power

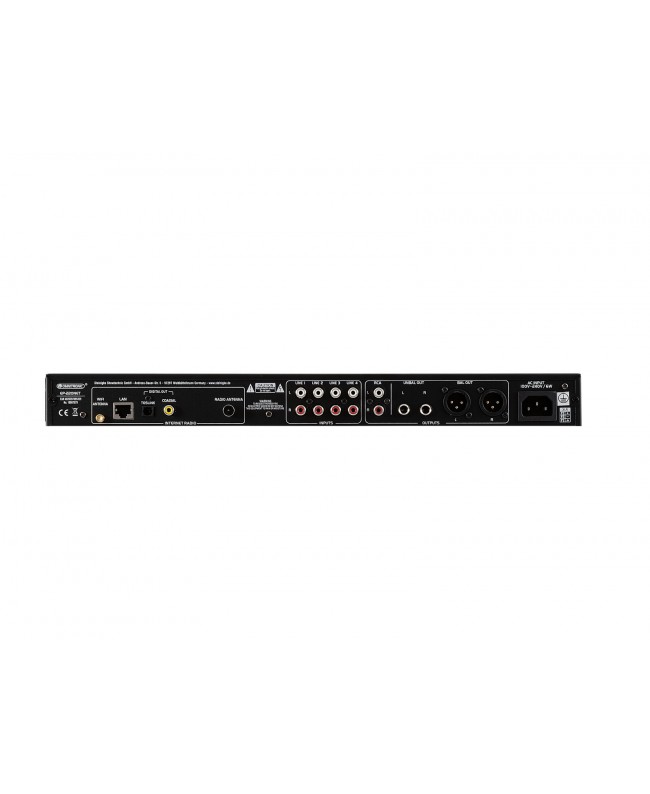

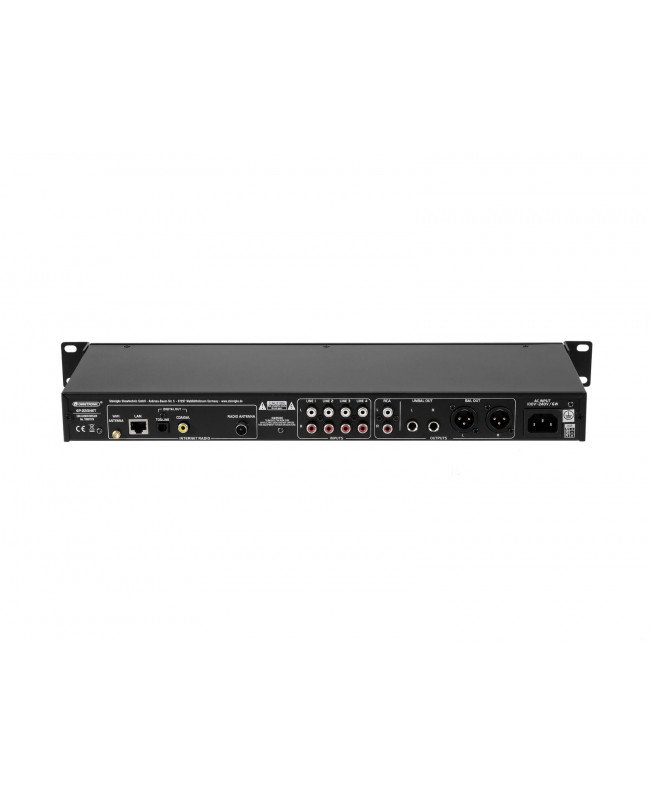

• Connections: Antenna via 1 x SMA (F) mounting version, Network connection via 1 x RJ-45 (F) mounting version, Input: antenna via 1 x Belling-Lee (F) mounting version, Input: line via 4 x stereo RCA, Input: AUX via 1 x 3.5 mm jack (stereo) mounting version, Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 3-pin XLR (M) mounting version, Output: line via 2 x 6.3-mm-jack (bal.), Output: line via 1 x stereo RCA, Output: optical via 1 x toslink, Output: coaxial (S/PDIF) via 1 x RCA (F) mounting version
• Channels: Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via rotary dial, 2-band tone control EQ, Master output: stereo, channel control via rotary dial, 2-band tone control EQ, source selector
• Music format: MP3, AAC/AAC+; FLAC
• Max. level: Input: line +20 dBu, Output: +22 dBu
• Material: Metal
• Housing design: Desktop console housing, (19) 48.3 cm rack installation possible
• Dimensions: Width: 48.3 cm, Depth: 19 cm, Height: 4.4 cm
• Weight: 2.20 kg
• Power supply: 3V
• Battery: 2 x Micro (AAA) (not included)
