Comfortable track selection via skip buttons and +10 button
Bargraph display
Pitch adjustment is displayed in %
Sample rate: 44.1 kHz
(19) 48.3 cm rack installation 1 U
Control via IR remote control
Pitch range: +-4%, +-8%, +-16%
For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 10 W
Power connection: Mains input via C8 (M) figure 8 mounting version power supply cord with Euro plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: 80 dB
THD: 0.1 % at 1 kHz
Control: IR remote control
Audio player: CD player, (ID3 tag), Anti-shock, Seamless loop
Sample rate: 44.1 kHz
CD player drive: Slot in-single CD drive
Display reading: MP3 ID3-Tags , play time remaining , play time elapsed; CD-DA play time remaining , play time elapsed , total play time remaining

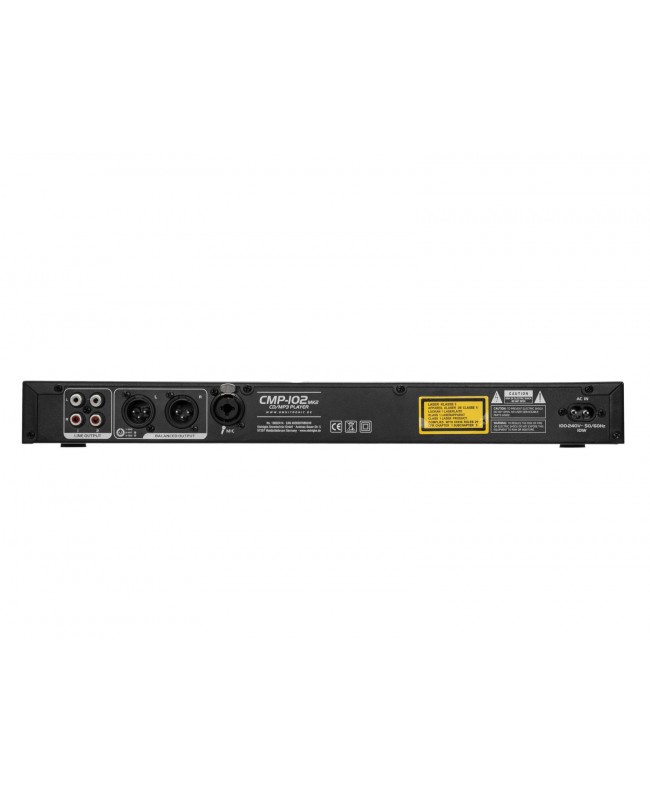

Connections: Output: line via 1 x 3-pin XLR, Output: line via 1 x stereo RCA, Output: rec. via 1 x stereo RCA, Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: microphone via 1 x 6.3 mm plug (unbal.)
Music format: CD, CD-R, CD-RW, CD-DA, MP3
Frame accuracy: 1/75 s
Pitch range: +-4%, +-8%, +-16%
Converter: 1 bit
Material: Metal
Color: Black
Housing design: (19) 48.3 cm rack installation 1 U
Dimensions: Width: 48.3 cm, Depth: 27 cm, Height: 4.45 cm
Weight: 3.14 kg
Battery: 2 x 1.5 V AAA Micro R03 zinc carbon included
