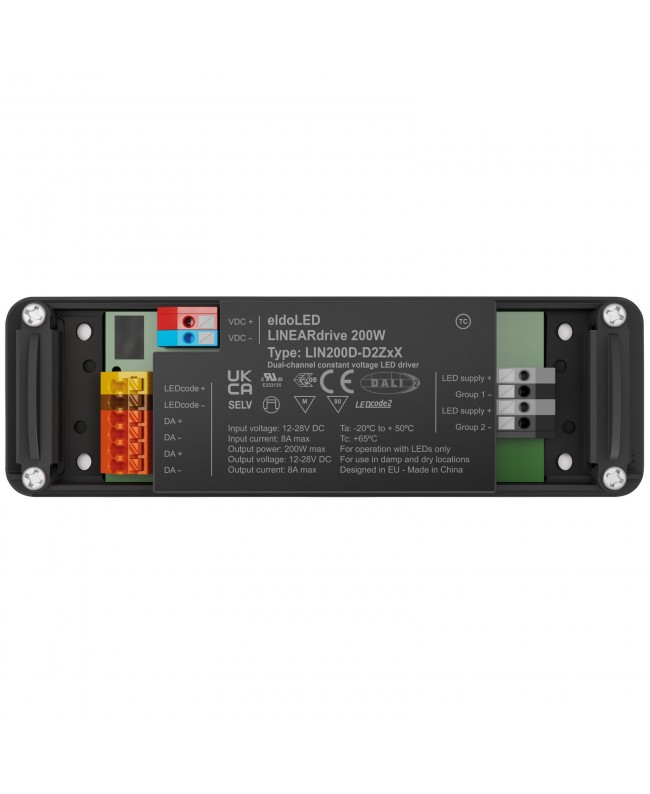

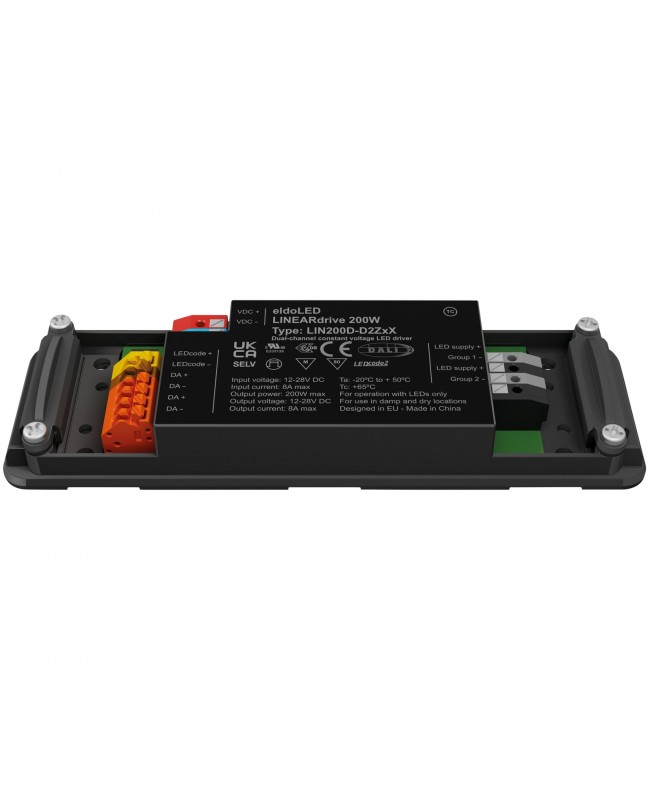

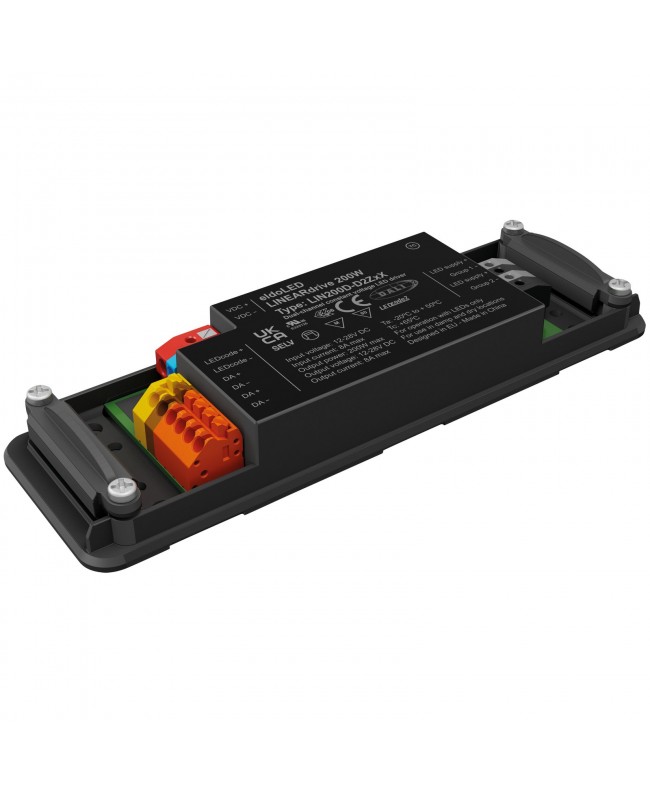

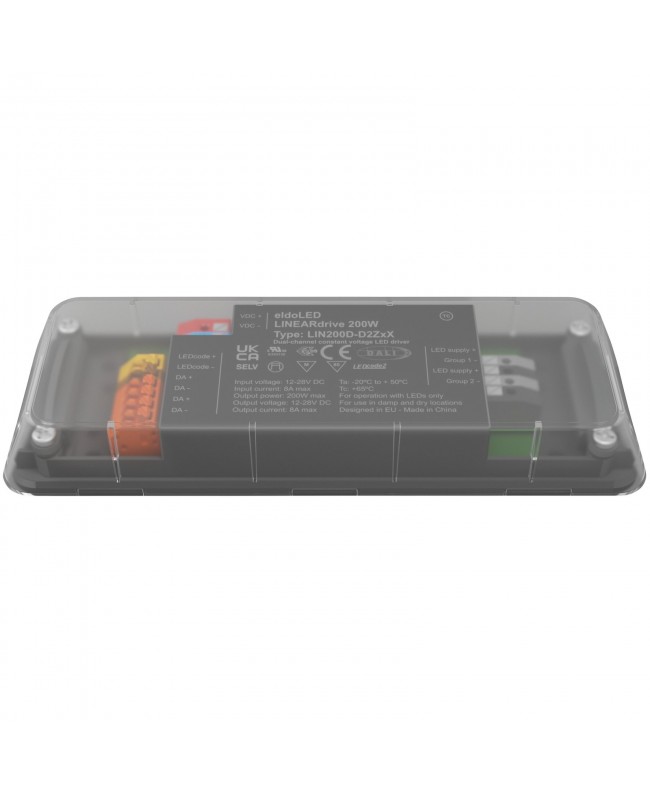

ELDOLED LINEARdrive DC - 200 W

The eldoLED LINEARdrive DC - 200 W is a programmable constant-voltage LED driver designed for architectural, commercial and entertainment lighting applications. It offers smooth dimming, precise control and robust compatibility with DALI DT6. This driver supports up to 224 W output power, with a 12-28 V DC input and output range and up to 8 A maximum output current, shared across two independent LED outputs. It features two LED outputs driven by two separate control channels, making it ideal for tuneable-white systems with independent control. It is perfect for cove lighting, LED strips and dynamic architectural effects.

The LINEARdrive DC series is designed for applications ranging from single-colour to Dim-to-Warm and full-colour effects, with deep dimming down to 0.1% and compliance with international flicker standards. Programming is fully supported through the eldoLED TOOLbox and FluxTool software, enabling custom dimming curves, LightShape features and LEDcode2 functionality for advanced integration and accessory control.

• 200 W constant-voltage driver with 12-28 V DC input
• DALI DT6 compatible
• 0.1% Deep, flicker-free dimming with Hybrid HydraDrive
• Two LED outputs and two control channels
• LEDcode2 support
