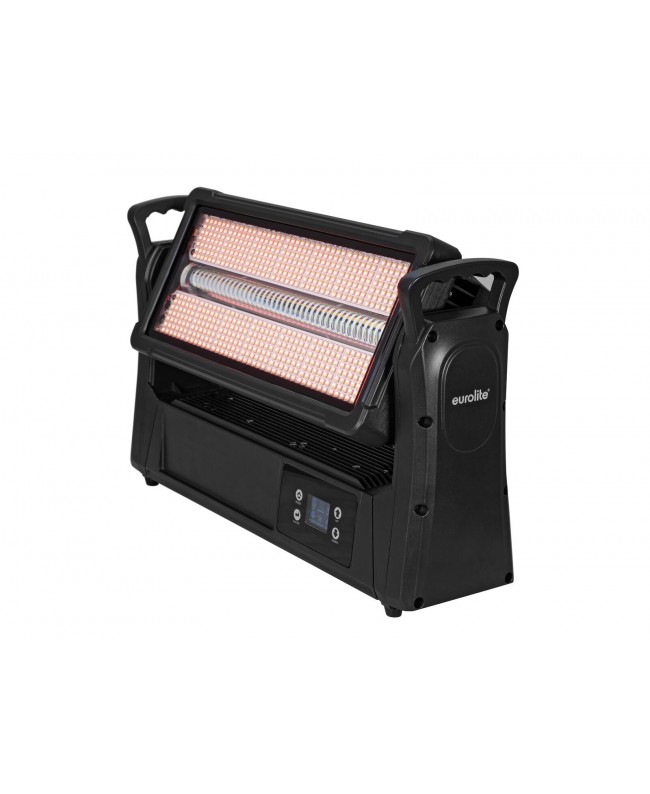

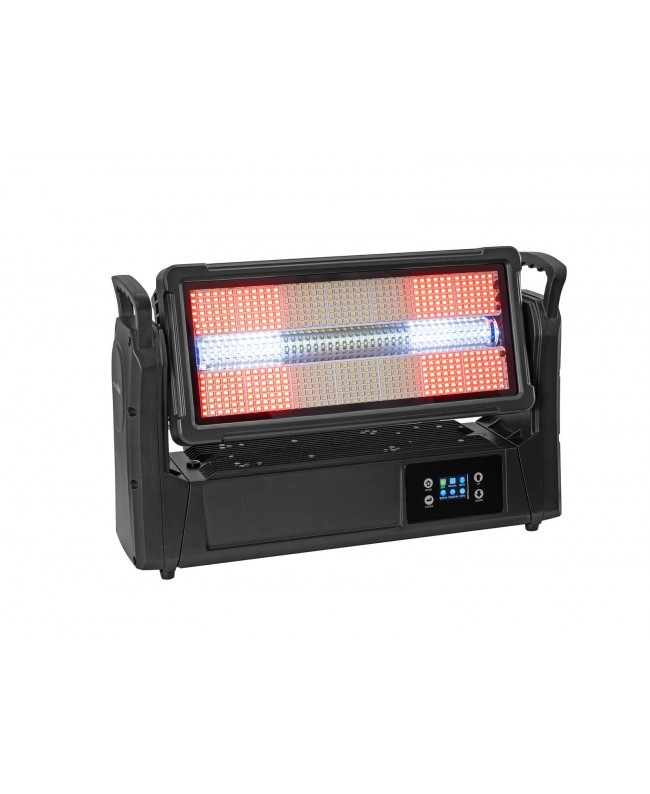

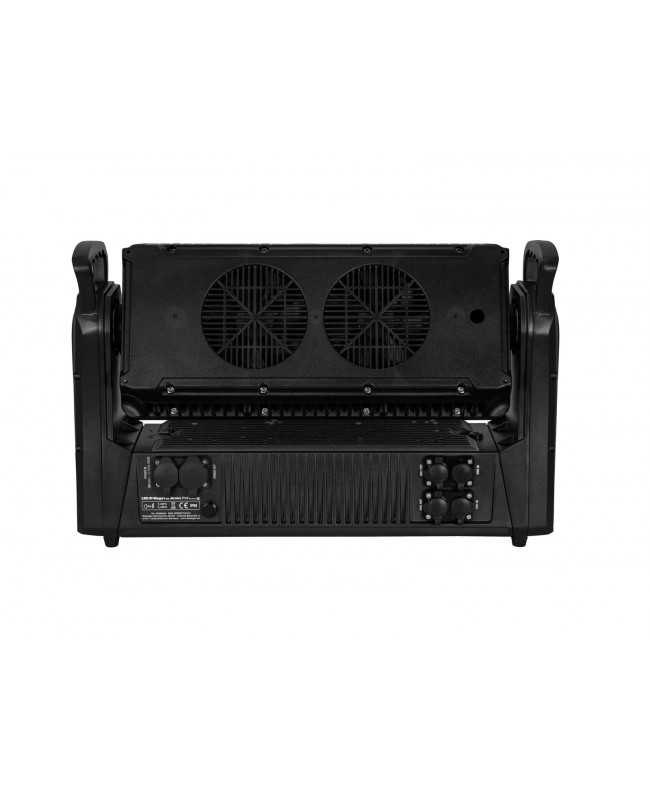

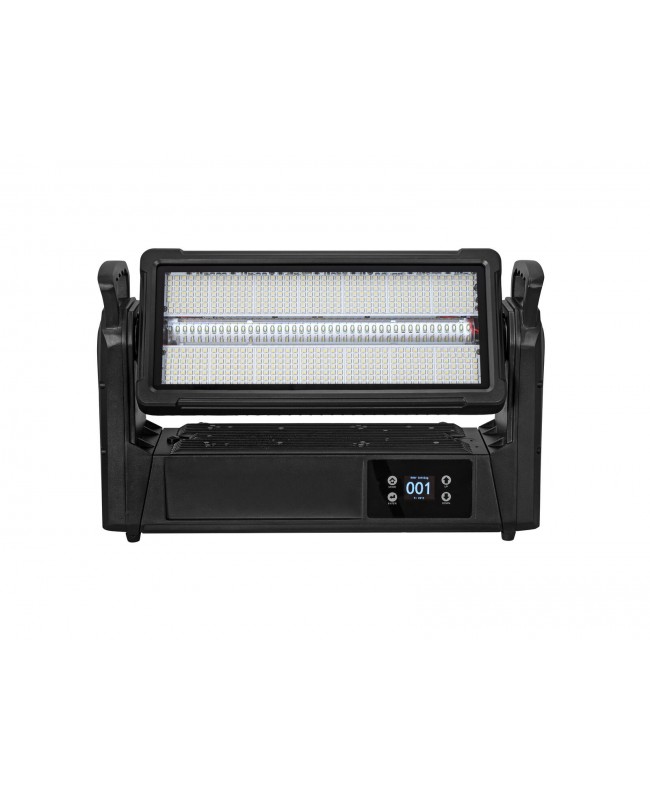

Eurolite LED IP Mega PIX Strobe 714 Swing Strobes
  • -18%

Eurolite LED IP Mega PIX Strobe 714 Swing

€950.00
€783.00 -18%
Tax included
Lowest price within the last 30 days: €783.00

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects

Qty

In Stock

Delivery

Do You want Your order by Thursday, 25/06/2026? Order within 4 hours and 9 minutes

Free shipping

Compare

wishlist

Eurolite LED IP Mega PIX Strobe 714 Swing



  • 126 LEDs 3 W SMD 3535 cold white (CW)
    7 segments controlled separately
  • 588 LEDs 0.25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
    14 segments controlled separately
  • Positioning within 200° TILT
  • Dimmer
  • Color macros adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; color animations with two adjustable colors
  • Matrix effect; strobe effect; Blinder effect
  • 46 integrated show programs
  • The device is cooled by cooling fan at the base; temperature-controlled fan at the head
  • Control via DMX; RDM; stand-alone; master/slave function
  • Preprogrammed in Light Captain
  • Flicker-free
  • With a beam angle of 120°
  • With omega bracket
  • Multicolor TFT display
  • 2 Rugged carrying handles
  • 4 x rubber feet
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • Suitable for outdoor use IP65
  • With pressure compensation membrane
  • For application areas such as: Stage; clubs/dancing school; wedding/gala/events; rental
  • Application possibility: Standing; suspended

Scope of delivery

  • 1 x device
  • 1 x user manual
  • 1 x power cord
  • 2 x omega bracket

TECHNICAL SPECIFICATIONS

  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 365 W
  • IP classification: IP65
  • Protection class: Protection class I
  • Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug
  • Cable construction: 3 x 1,5 mm² H07RN-F
  • Power output: IP T-Con (F) mounting version
  • Lamp type: LED lamp
  • LED type: 126 x 3 W SMD 3535 cold white (CW)
  • 588 x 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
  • Max. TILT movement: 200° positioning auto position correction (feedback)
  • Flash rate: 0,5 - 17 Hz
  • Equipment Dimmer
  • DMX channels: 8; 9; 11; 12; 17; 18; 71
  • DMX input: 3-pin XLR (M) mounting version IP
  • 1 x 5-pin XLR (M) mounting version IP
  • DMX output: 3-pin XLR (F) mounting version IP
  • 1 x 5-pin XLR (F) mounting version IP
  • Cooling: 1 x cooling fan at the base
  • 2 x temperature-controlled fan at the Head
  • Control: DMX; RDM; stand-alone; master/slave function
  • Preprogrammed in Light Captain
  • Projection: Flicker-free
  • PWM frequency: 4100 Hz
  • Beam angle: 120°
  • Beam angle (1/2 peak): Matrix effect 120°
  • Beam angle (1/10 peak) Matrix effect 170°
  • Housing color: Black
  • Attachment system: 2x omega bracket
  • Display type: Multicolor TFT display
  • Carrying handle  2 pc/pcs
  • Transport aid:4 x rubber feet
  • Use of brands Built with SEETRONIC connector
  • Material:Aluminum casting
  • Dimensions:Width: 52,5 cm
  • Depth: 14,0 cm
  • Height: 33,5 cm
  • Weight: 12,85 kg
  • Noise classification: Class 2 (slight noise)
  • Legal specifications
  • Special product: Not designed for household room illumination
  • Intended use:Show effect lighting
