Datavideo NTP-100 Teleprompter
  • -26%
  • New

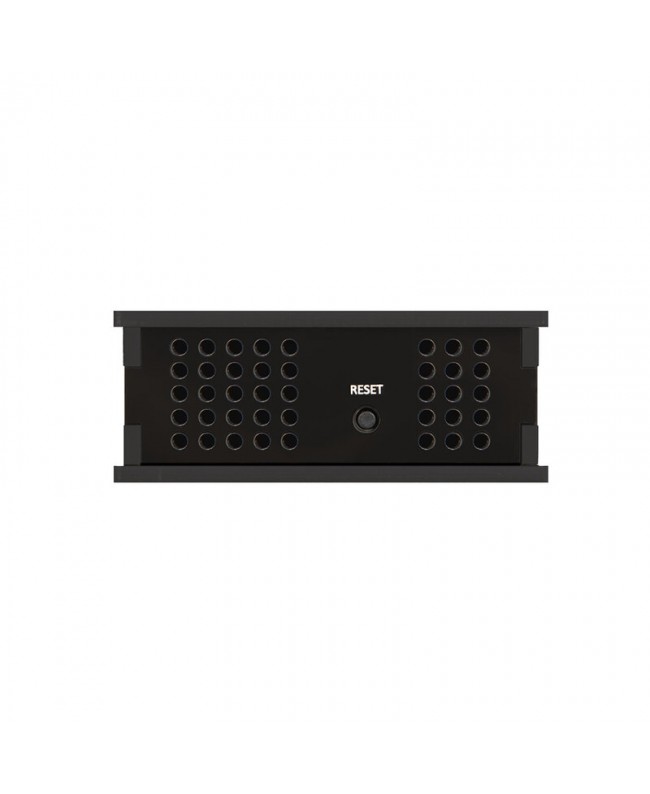

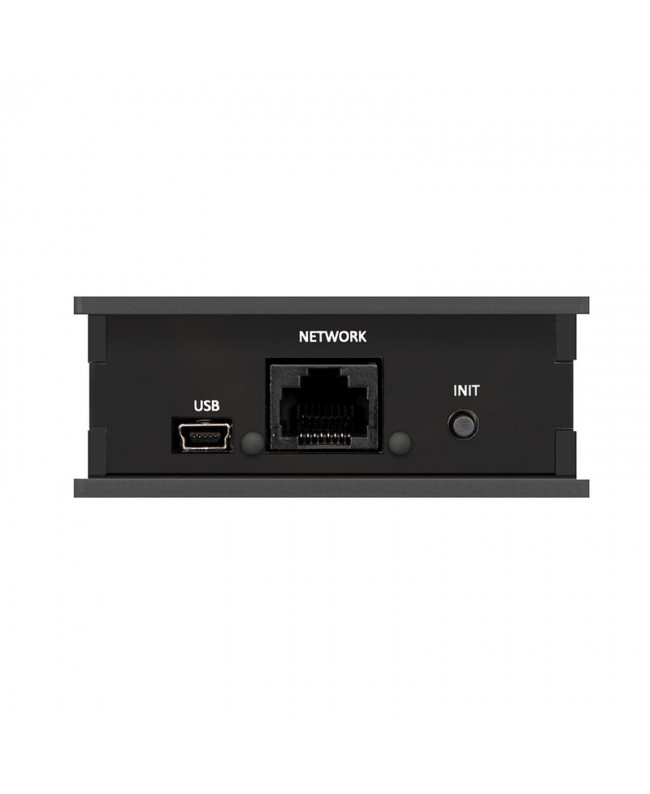

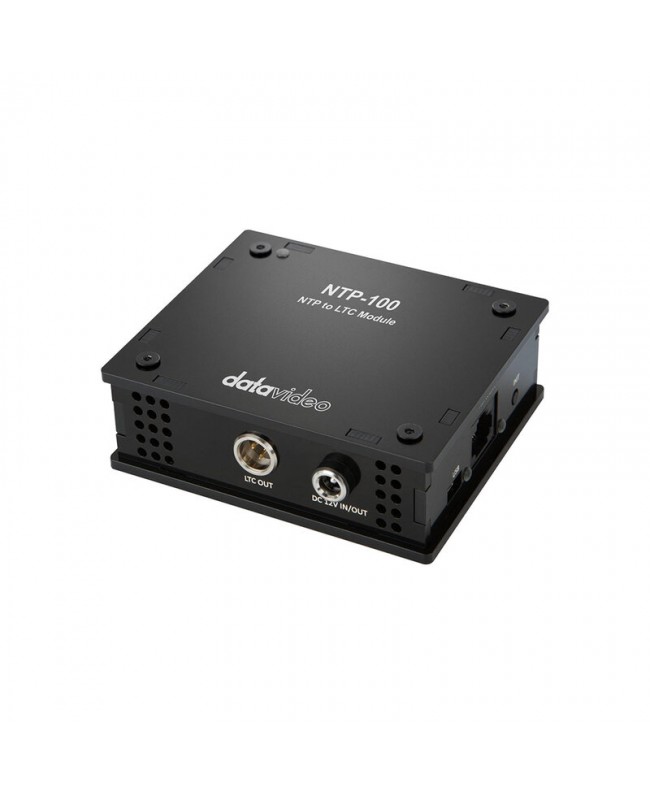

Datavideo NTP-100

€645.00
€477.00 -26%
Tax included
Lowest price within the last 30 days: €477.00

NTP-to-LTC converter with PoE power, Ethernet connectivity, 12 V output for driving LTC-45 clocks

Out of Stock

Free shipping

Compare

wishlist

Datavideo NTP-100



The TP-100 is a module designed to convert time code from NTP (Network Time Protocol) servers to LTC (Linear Time Code), ensuring accurate and reliable synchronization within broadcast studios and similar technical infrastructures.

It connects directly to the network via wired Ethernet and is powered via Po. E, eliminating the need for external power supplies and simplifying integration into existing systems. The device ensures stable time code distribution, offering a seamless and seamless workflow.

The NTP-100 can be combined with the LTC-45 clock to create a complete time synchronization solution, also using the integrated 12 V output to directly power the LTC-45 Datavideo display.

  • Areas of use
  • Television studios
  • Mobile broadcasting
  • OB Vans
  • Technical characteristics
  • Power supply: PoE IEEE 802.3af, Mini USB, 12 VDC
  • Power consumption: 1 W without external load, 12 W max with 800 mA external load
  • LTC output: unbalanced 3 Vpp, 25 fps
  • Additional output: 12 VDC, max 800 mA for external devices
  • Network settings: WebUI configuration, NTP server address, UTC offset, DST settings

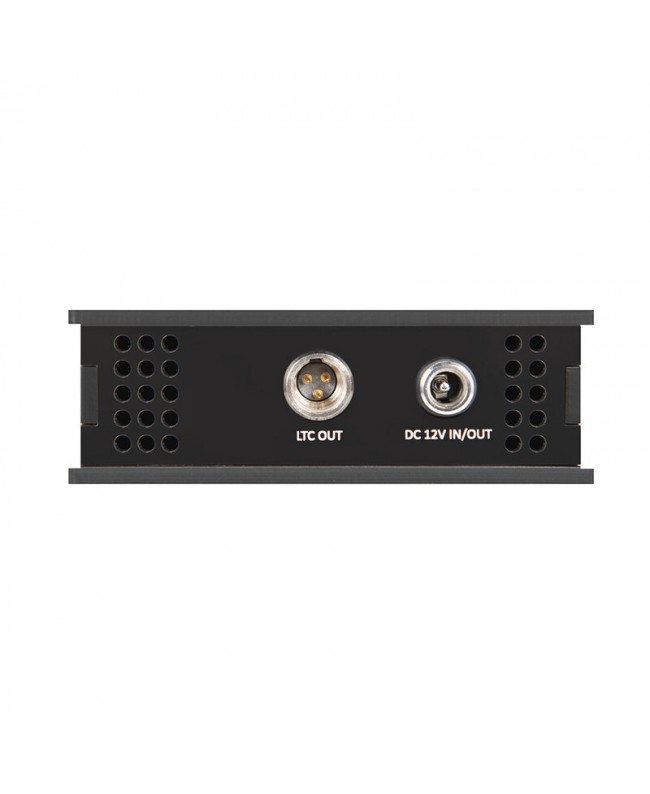

  • Mini XLR pin-outs: pin-1 = GND, pin-2 = LTC+, pin-3 = LTC+
  • Dimensions: 8.9 x 7.8 x 2.7 cm
  • What's in the box: 1 x NTP to LTC module

DTV-2400-5650
