Relacart UH-222D Microphone 522-554 MHz Home
  • New

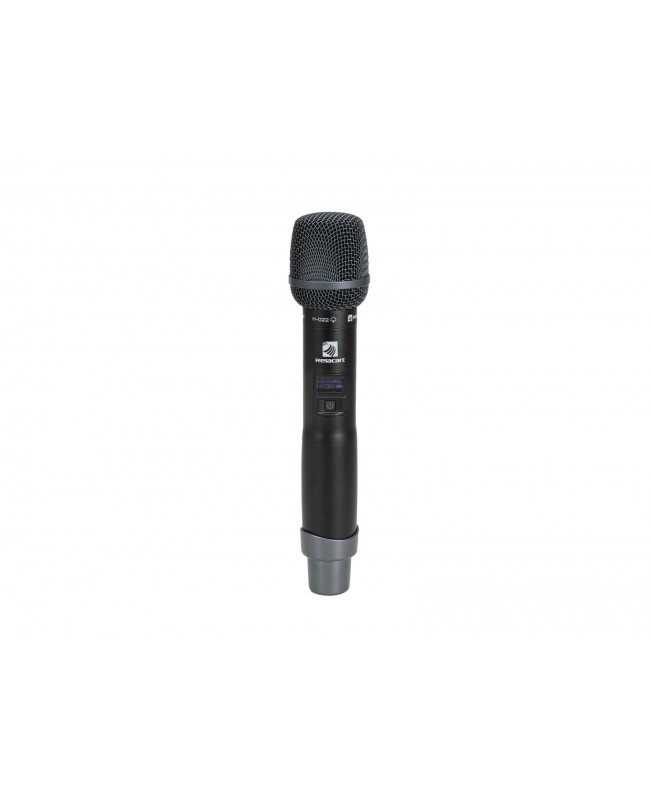

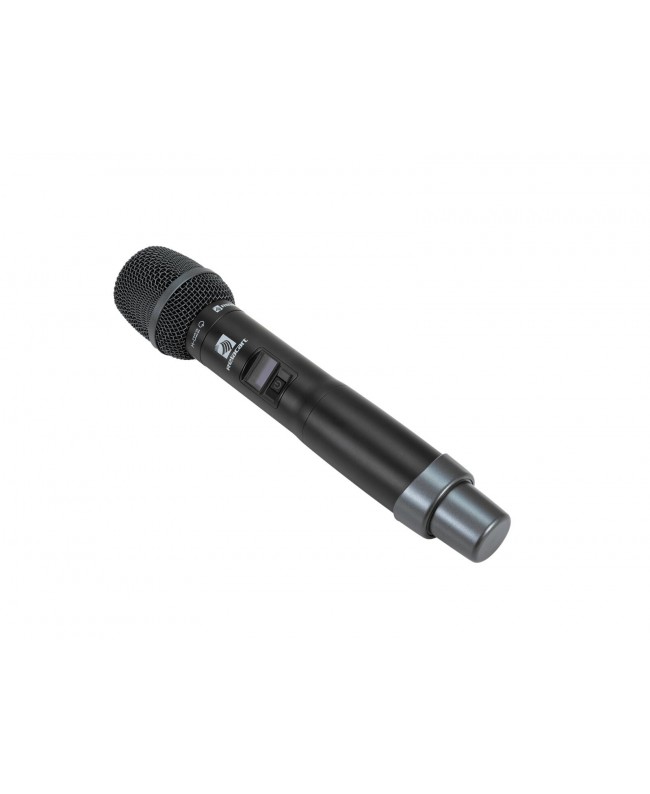

Relacart UH-222D Microphone 522-554 MHz

€90.70
Tax included

Hand-held microphone with PLL multifrequency transmitter

Qty

Available upon request

Compare

wishlist

Relacart UH-222D Microphone 522-554 MHz



  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Capsule M-022
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Super cardoid
  • Operating range up to 80m
  • Up to 12 transmitters can be operated in parallel without interference
  • OLED display
  • Charge status indicator

Scope of delivery

  • 1 x microphone
  • 1 x user manual
  • 1 x declaration of conformity
  • Type: Hand-held transmitter
  • Power supply: 3V DC
  • Capsule type: Dynamic
  • Polar pattern: Super cardoid
  • Battery: 2 x Mignon (AA) (not included)
  • Frequency range: 120 - 16000 Hz
  • Sensitivity: -53 dB
  • Max. SPL: 145 dB
  • Range: Range up to 80m
  • Frequency band: UHF 522 - 554 MHz
  • Switching bandwidth: 32 MHz
  • Parallel mode: Max. 12 transmitter
  • RF power output: 10 mW (LO); 30 mV (HI)
  • Modulation: FM
  • Frequency selection: 151 switchable frequencies, In 10 groups with up to 18 preset frequencies each
  • Display type: OLED display
  • Display: Charge status indicator , frequency , goup , channel; Mute
  • Control elements: Gain-switch (high-mid-low), transmitter power switch (high-low)
  • Switch: On/off/mute switch
  • Material: Aluminum
  • Dimensions: Length: 26 cm, Diameter: Ø 5.4 cm
  • Weight: 0.28 kg

13055181
