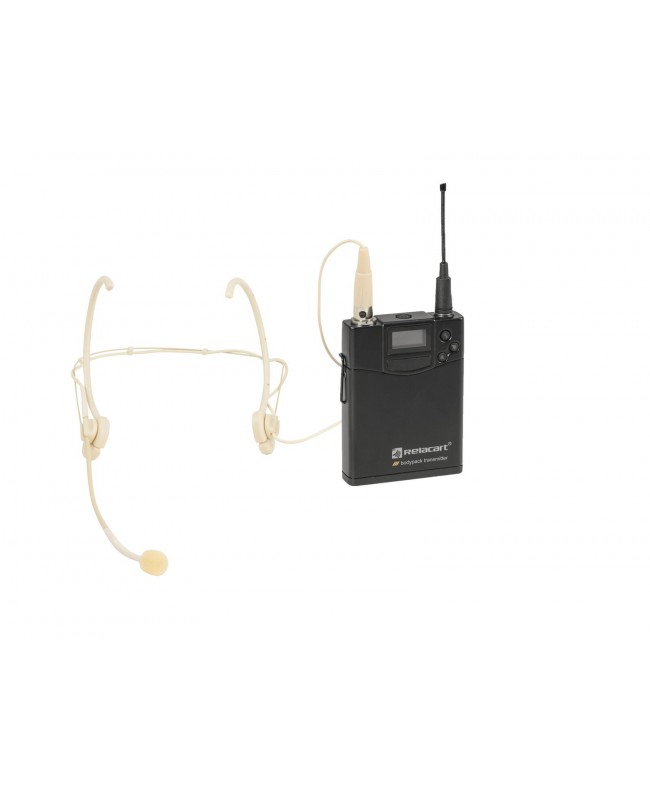

Relacart UT-222 Bodypack 522-554 MHz with HM-600S Headset

Scope of delivery

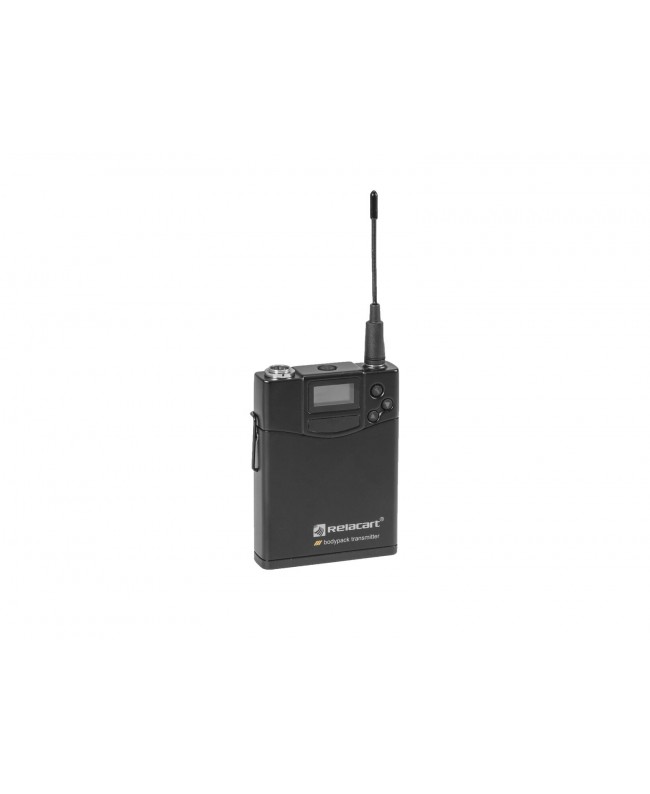

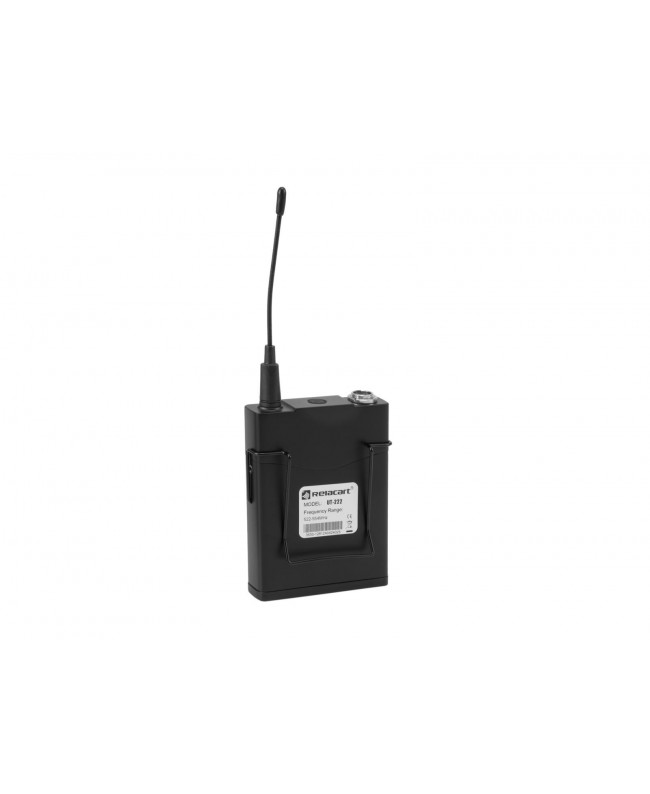

• 1 x transmitter
• 1 x microphone
• 1 x windshield
• 1 x user manual
• 1 x declaration of conformity

• Parallel mode: Max. 12 transmitter
• Weight: 0.22 kg
• Type: Bodypack with microphone
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Battery: 2 x Mignon (AA) (not included)
• Gain: 0 dB, -6 dB, -12 dB
• Range: Range up to 80m
• Frequency band: UHF 522 - 554 MHz
• Switching bandwidth: 32 MHz
• RF power output: 10 mW (LO); 30 mW (HI)
• Modulation: FM
• Frequency selection: 151 switchable frequencies, In 10 groups with up to 18 preset frequencies each
• Display type: OLED display
• Control elements: Transmitter power switch (high-low)
• Connections: Output: Mini XLR (M) 4-pin mounting version
• Switch: On/off/mute switch
• Material: Aluminum
• Color: Black
• Dimensions: Width: 6.6 cm, Depth: 2.3 cm, Height: 8.4 cm
• Weight: 0.174 kg

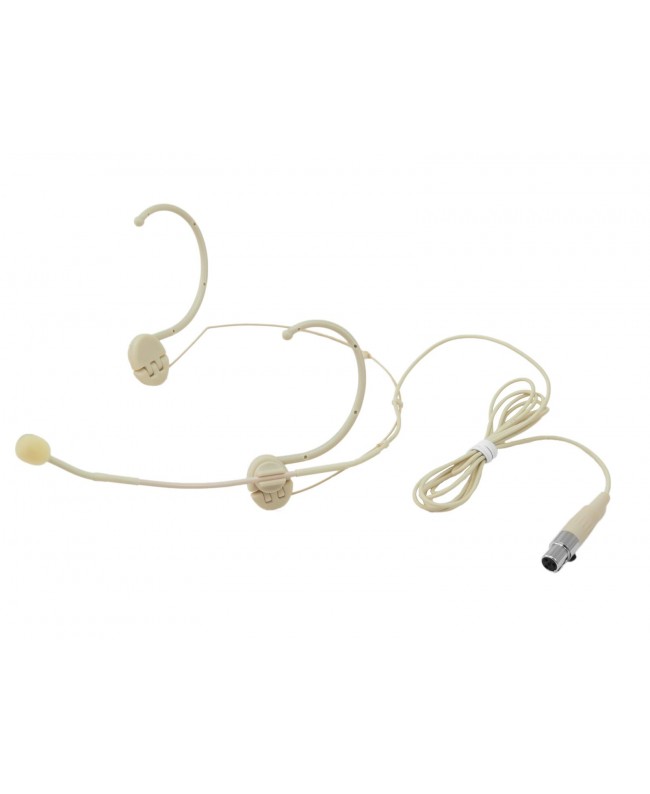

• Type: Headset microphone
• Power supply: 2-10V DC
• Cable length: 1.2 m
• Capsule type: Condenser, Size: Ø 5 mm x 6 mm
• Polar pattern: Omnidirectional
• Frequency range: 50 - 18000 Hz
• Sensitivity: -47 dB
• Impedance: 1800 Ohm
• Connector type: Mini XLR (F) 4-pin
• Color: Skin-colored
• Weight: 0.028 kg
