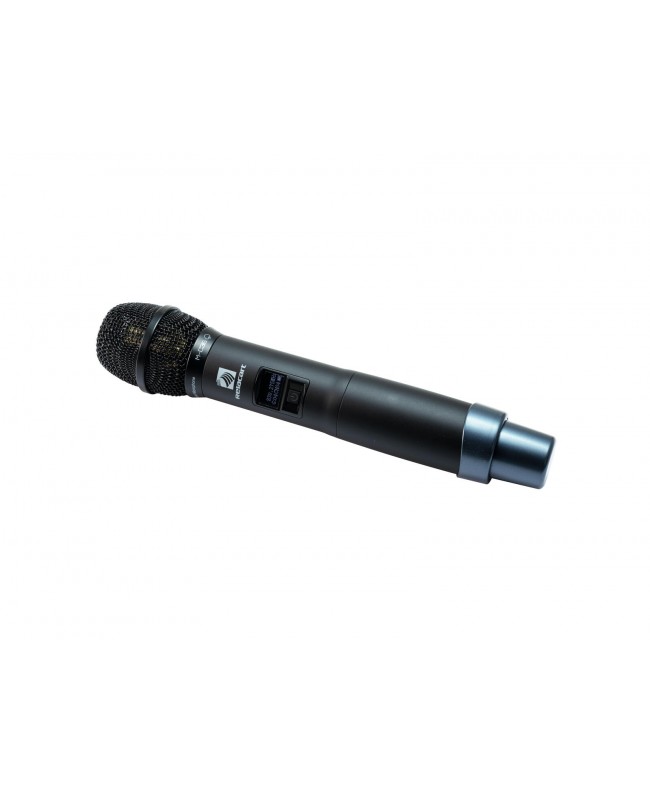

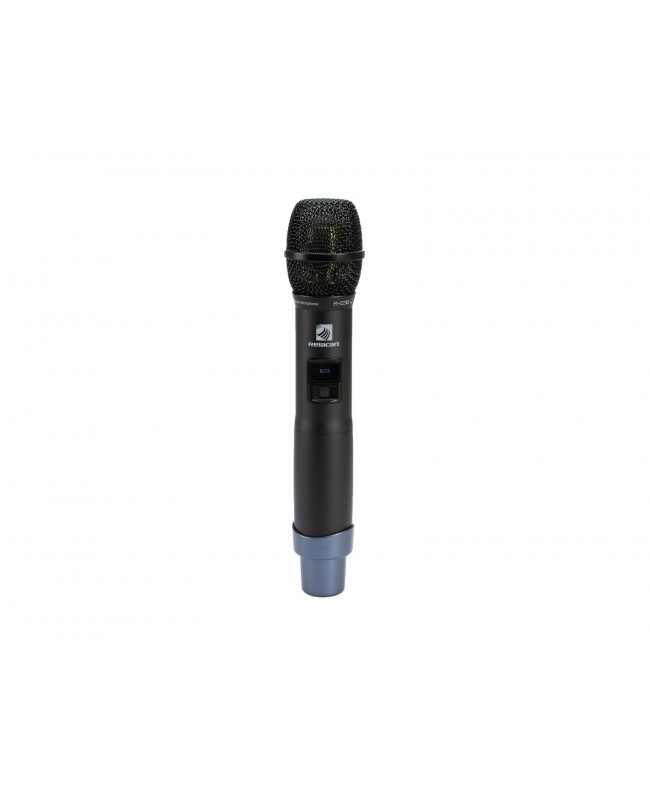

Relacart UH-222C Microphone 823-832 + 863-865 MHz

€109.40
Tax included

Hand-held microphone with PLL multifrequency transmitter

Qty

Available upon request

Free shipping

Compare

wishlist

Relacart UH-222C Microphone 823-832 + 863-865 MHz



  • Condenser hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Capsule M-C36
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Cardioid
  • Operating range up to 80m
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • OLED display
  • Charge status indicator

Scope of delivery

  • 1 x microphone
  • 1 x user manual
  • 1 x declaration of conformity
  • Type: Hand-held transmitter
  • Power supply: 3V DC
  • Capsule type: Condenser
  • Polar pattern: Cardioid
  • Battery: 2 x Mignon (AA) (not included)
  • Frequency range: 100 - 18000 Hz
  • Sensitivity: -52 dB
  • Max. SPL: 145 dB
  • Range: Range up to 80m
  • Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
  • Switching bandwidth: 11 MHz
  • RF power output: 5 mW (LO); 10 mW (HI)
  • Modulation: FM
  • Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
  • Display type: OLED display
  • Display: Charge status indicator , frequency , goup , channel; Mute
  • Control elements: Gain-switch (high-mid-low), transmitter power switch (high-low)
  • Switch: On/off/mute switch
  • Material: Aluminum
  • Dimensions: Length: 25.5 cm, Diameter: Ø 5.2 cm
  • Weight: 0.34 kg
