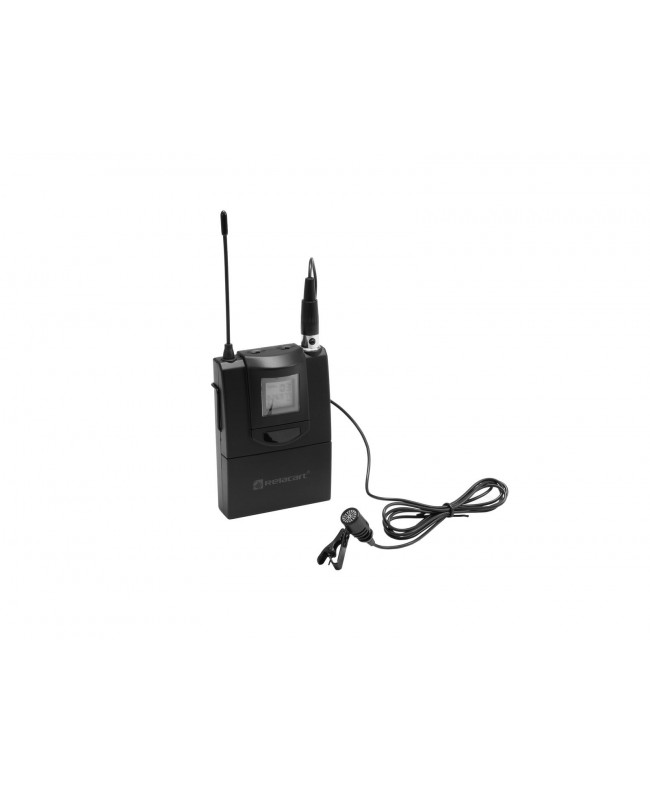

Relacart ET-60 Bodypack with Lavalier Microphone for WAM-402

Scope of delivery

• 1 x transmitter
• 1 x microphone

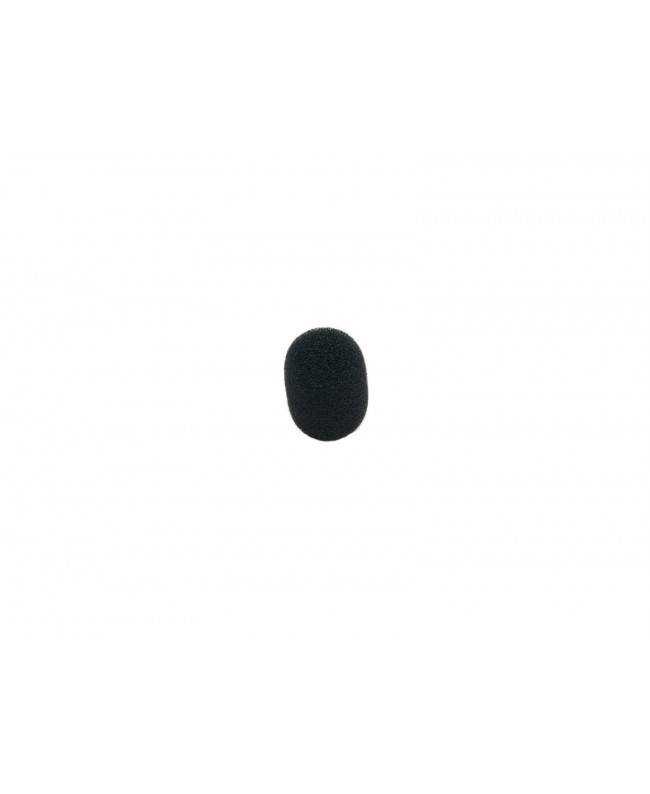

• 1 x windshield
• 1 x user manual
• 1 x declaration of conformity

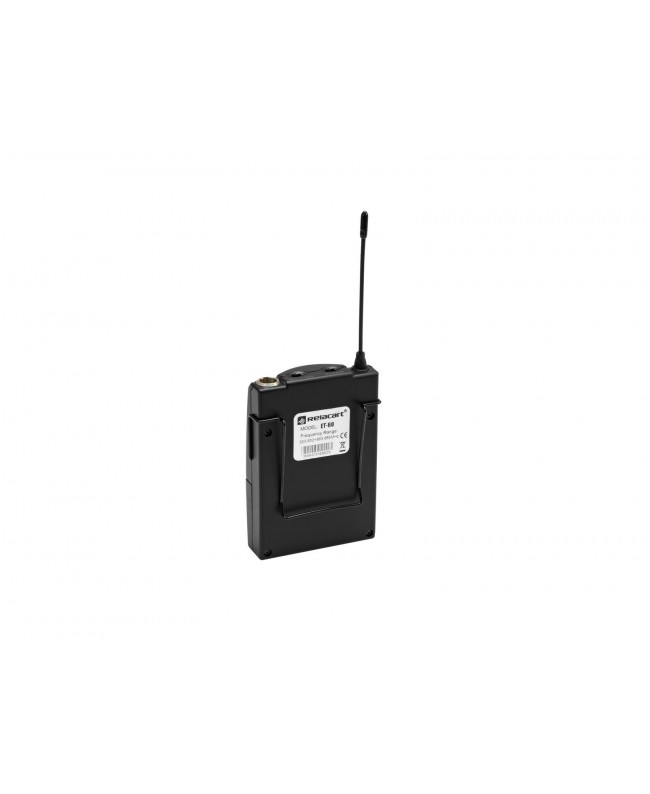

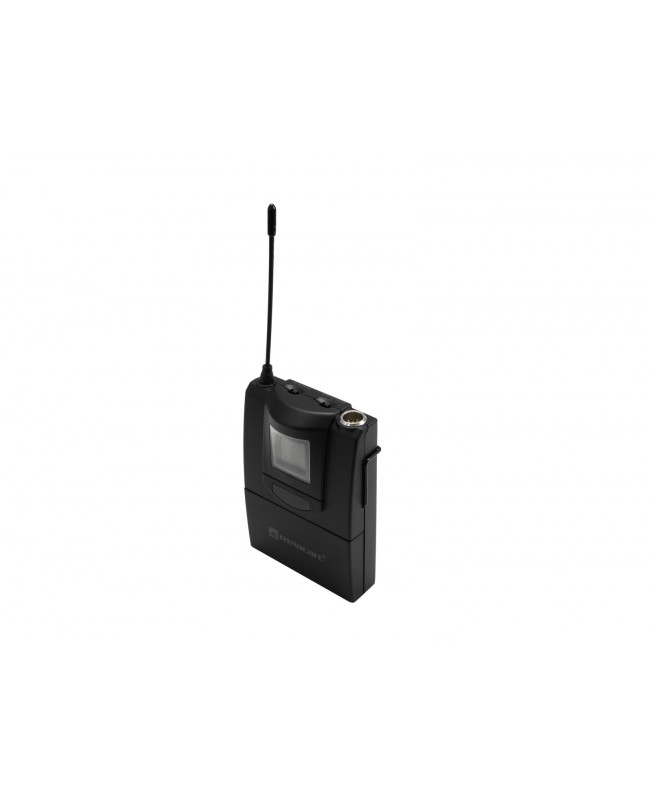

• Type: Bodypack with microphone
• Power consumption: 0.42 W
• Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
• Switching bandwidth: 11 MHz
• Parallel mode: Max. 8 transmitter
• RF power output: 10 mW
• Modulation: FM
• Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
• Weight: 0.11 kg
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 80m
• Control elements: Transmitter power switch (high-low)
• Switch: On/off switch; Mic/Ins switch
• Material: Plastic
• Color: Black
• Dimensions: Width: 6.5 cm, Depth: 2.5 cm, Height: 9.5 cm
• Weight: 0.086 kg

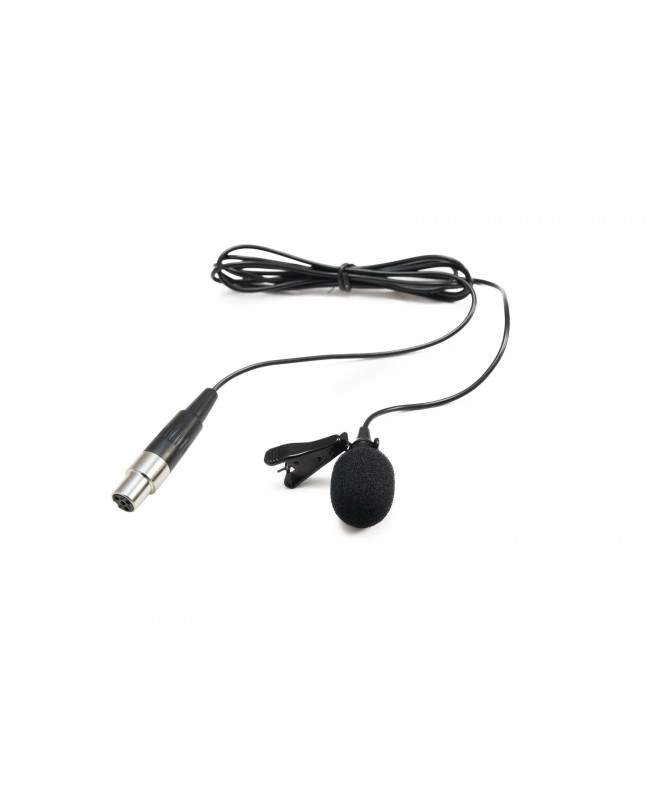

• Type: Lavalier microphone
• Cable length: 1.20 m
• Capsule type: Electret
• Polar pattern: Cardioid
• Frequency range: 60 - 12000 Hz
• Sensitivity: -42 dB
• Connector type: Mini XLR (F) 4-pin
• Material: Metal
• Color: Black
• Weight: 0.020 kg
