Relacart UT-222 Bodypack with HM-600S Headset

€96.00
Tax included

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

Qty

Available upon request

Compare

wishlist

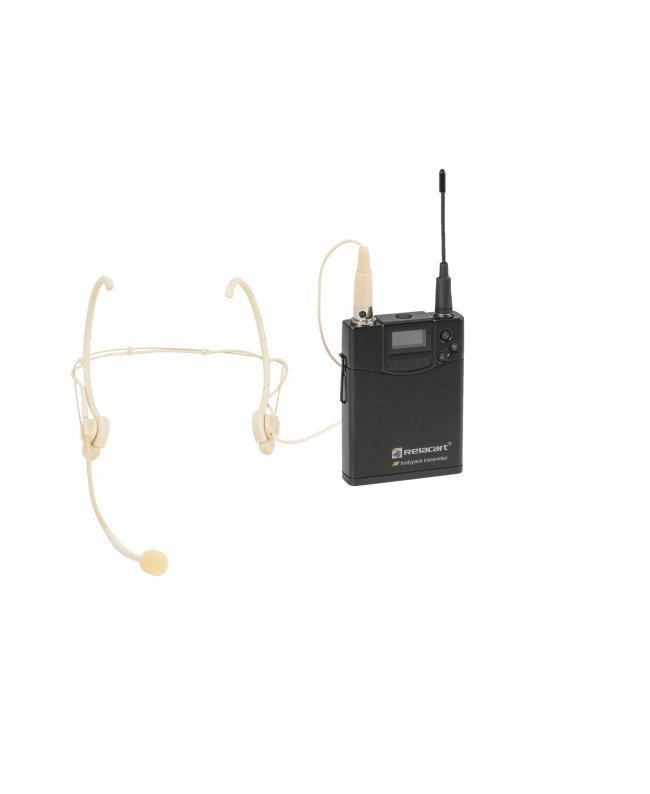

Relacart UT-222 Bodypack with HM-600S Headset



  • Durable aluminum alloy housing, applicable for touring
  • Pilot frequency squelch technology delete wireless RF interference
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Adjustable input gain
  • RF output power Hi/Low adjustable
  • Lock function for prevents undesired changes to settings
  • Up to 9 transmitters can be operated in parallel without interference

transmitter

  • Operating range up to 80m
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • UHF 863 - 865 MHz License-free and approved in Europe
  • OLED display

microphone

  • Polar pattern: Omnidirectional
  • For further information about this product, please refer to the Data Sheet under Downloads

Scope of delivery

  • 1 x transmitter
  • 1 x microphone
  • 1 x windshield
  • 1 x user manual
  • 1 x declaration of conformity
  • Parallel mode: Max. 9 transmitter
  • Weight: 0.21 kg
  • Type: Bodypack with microphone
  • Power supply: 3V DC
  • Power connection: Battery/battery pack
  • Battery: 2 x Mignon (AA) (not included)
  • Gain: 0 dB, -6 dB, -12 dB
  • Range: Range up to 80m
  • Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
  • Switching bandwidth: 11 MHz
  • RF power output: UHF 823 - 832 MHz: 10 mW (LO); 40 mW (HI); UHF 863 - 865 MHz: 5 mW (LO); 10 mW (HI)
  • Modulation: FM
  • Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
  • Display type: OLED display
  • Control elements: Transmitter power switch (high-low)
  • Connections: Output: Mini XLR (M) 4-pin mounting version
  • Switch: On/off/mute switch
  • Material: Aluminum
  • Color: Black
  • Dimensions: Width: 6.6 cm, Depth: 2.3 cm, Height: 8.4 cm
  • Weight: 0.174 kg

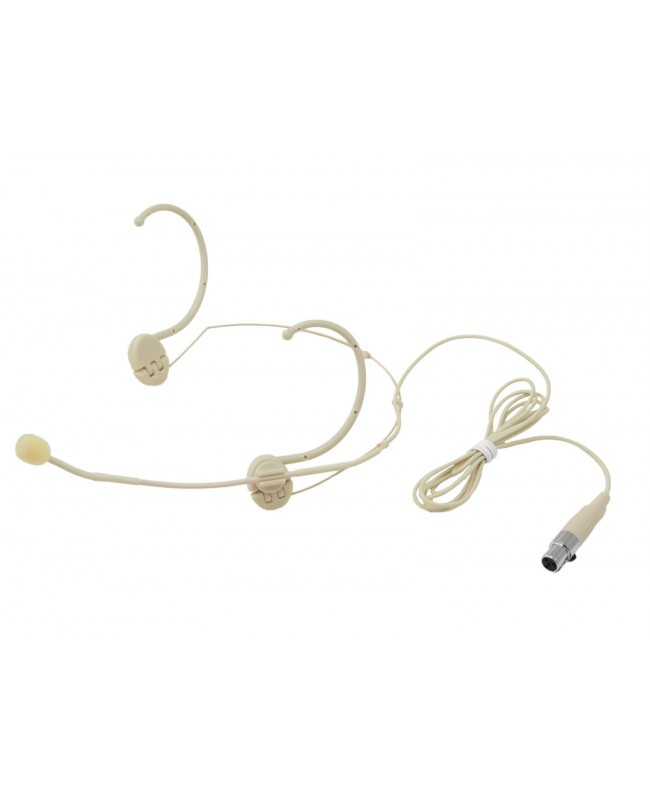

  • Type: Headset microphone
  • Power supply: 2-10V DC
  • Cable length: 1.2 m
  • Capsule type: Condenser, Size: Ø 5 mm x 6 mm
  • Polar pattern: Omnidirectional
  • Frequency range: 50 - 18000 Hz
  • Sensitivity: -47 dB
  • Impedance: 1800 Ohm
  • Connector type: Mini XLR (F) 4-pin
  • Color: Skin-colored
  • Weight: 0.028 kg
