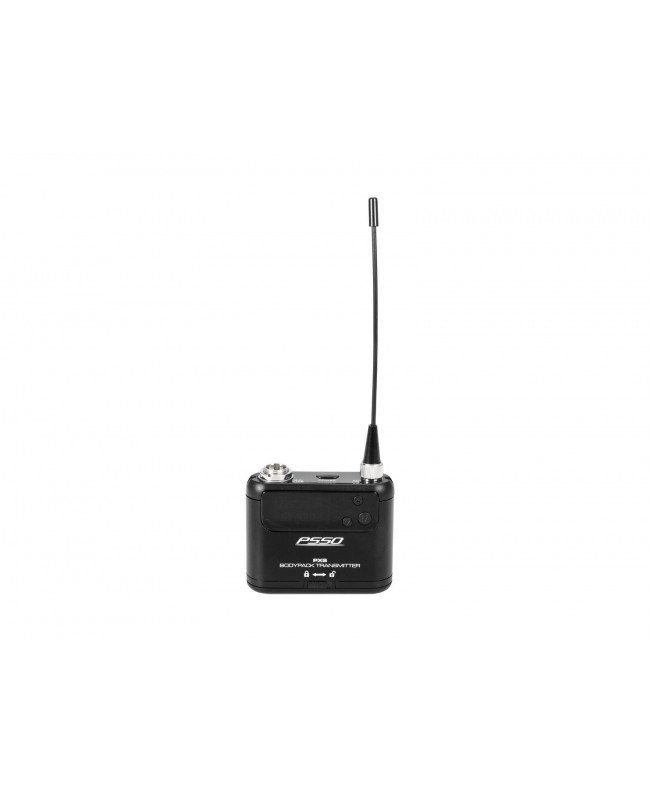

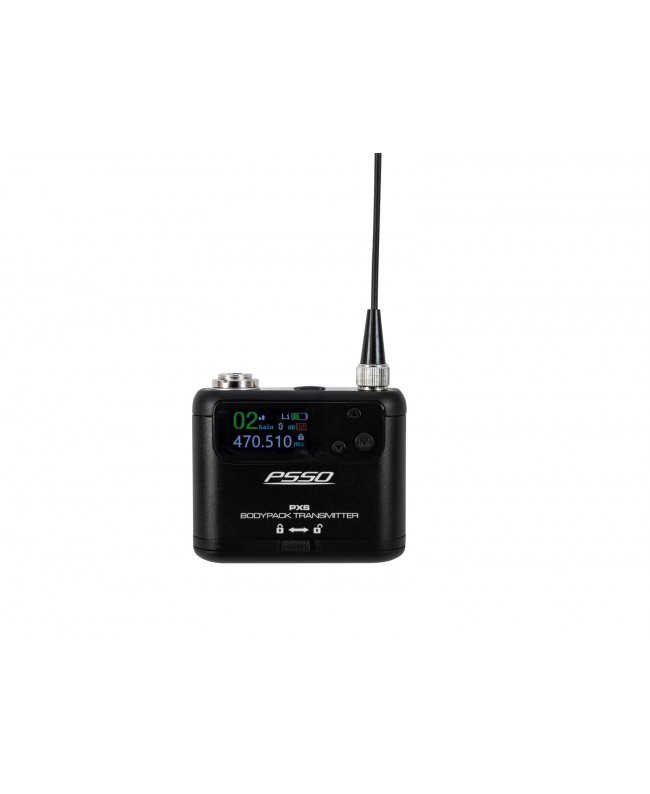

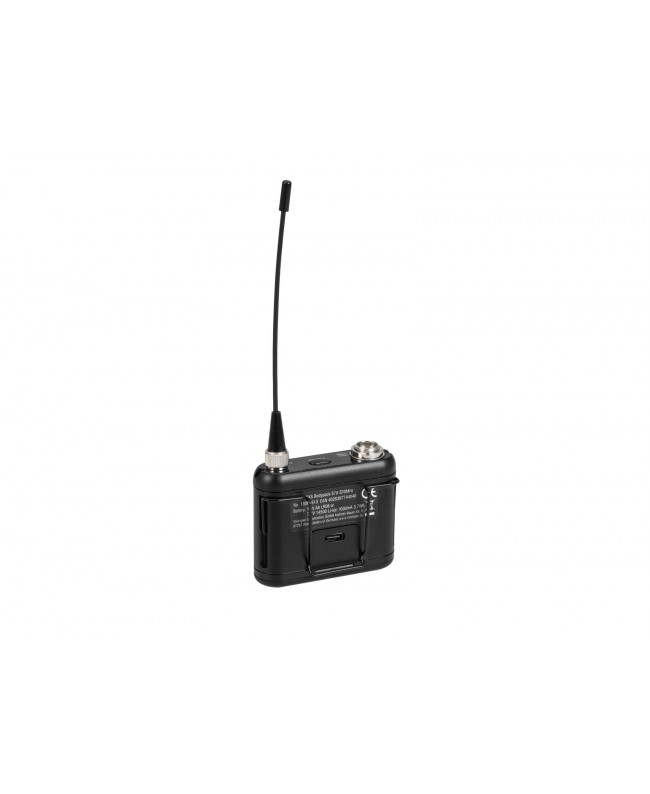

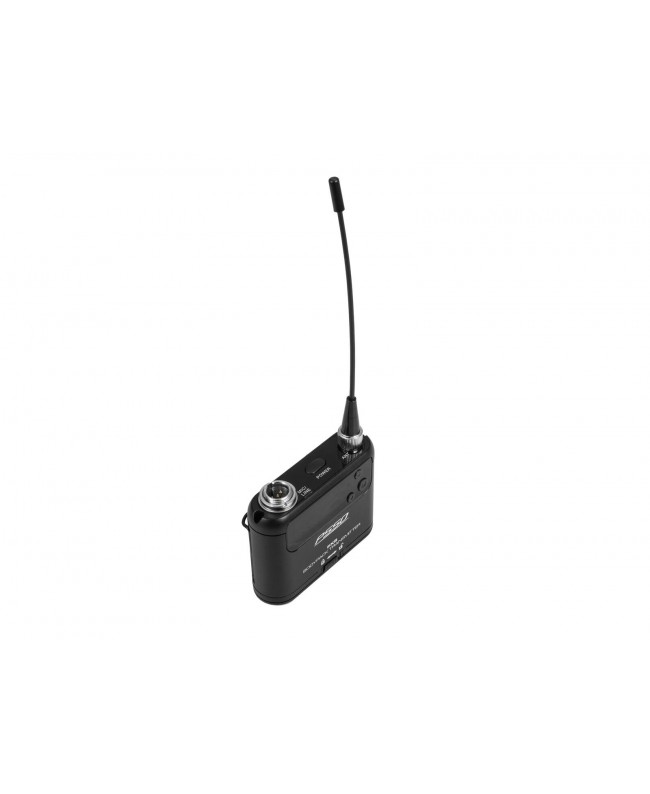

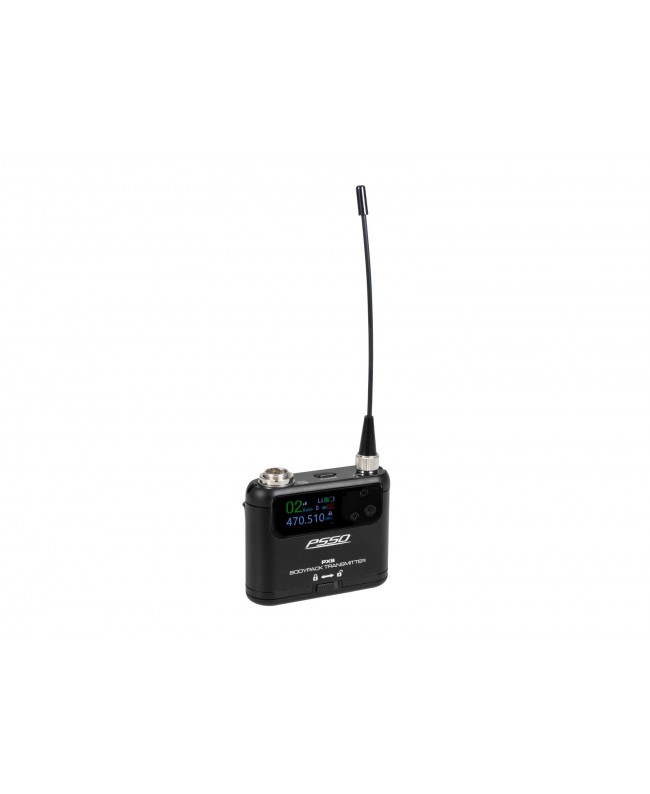

PSSO PXS Mini Bodypack 470-510 MHz

Scope of delivery

• 1 x transmitter
• 1 x battery pack
• 1 x user manual
• 1 x declaration of conformity

• Type: Pocket transmitter
• Power connection: Battery/battery pack built-in, Mains input via USB C (W) mounting version
• Battery pack type: 1 x lithium ion 3.7 V, 1000 mAh, 3.7 Wh
• Battery pack: Battery operation up to 10h, Recharging time 3h
• Battery: 1 x Mignon (AA) (not included)
• Frequency range: 30 - 19000 Hz
• Range: Range up to 200m with line-of-sight
• Frequency band: UHF 470 - 510 MHz
• Switching bandwidth: 40 MHz
• Parallel mode: Max. 28 transmitter
• RF power output: 20 mW (LO); 30 mW (HI)
• Housing color: Black
• Display type: Multicolor TFT display
• Display: Frequency , charge status indicator , Mute , gain; key lock
• Control elements: Menu, navigation keys
• Connections: Input: antenna via SMA (F) mounting version, Input: microphone via Mini XLR (M) 4-pin mounting version
• Switch: On/off/mute switch
• Material: Metal
• Dimensions: Width: 6.6 cm, Depth: 2.5 cm, Height: 15.5 cm
• Weight: 0.10 kg
• Dimensions: Length: 100 cm
