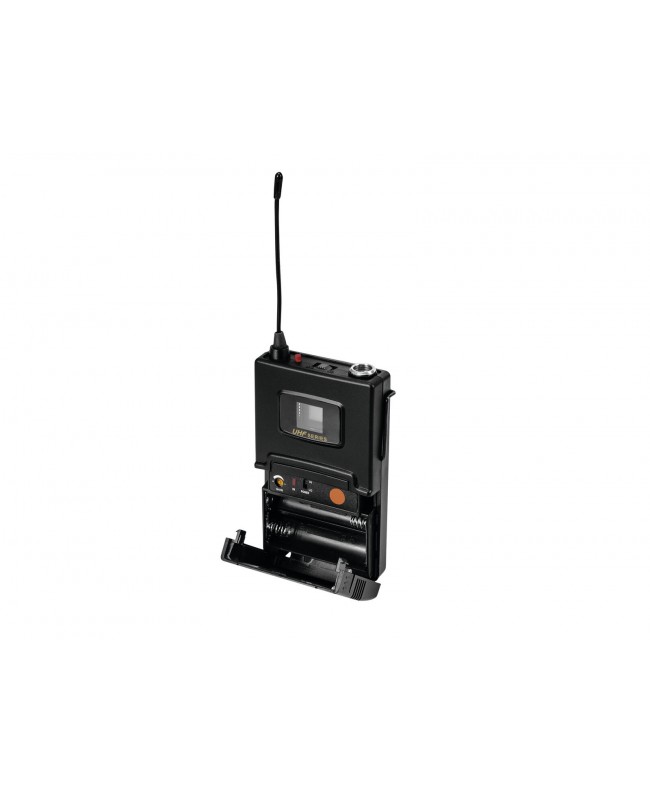

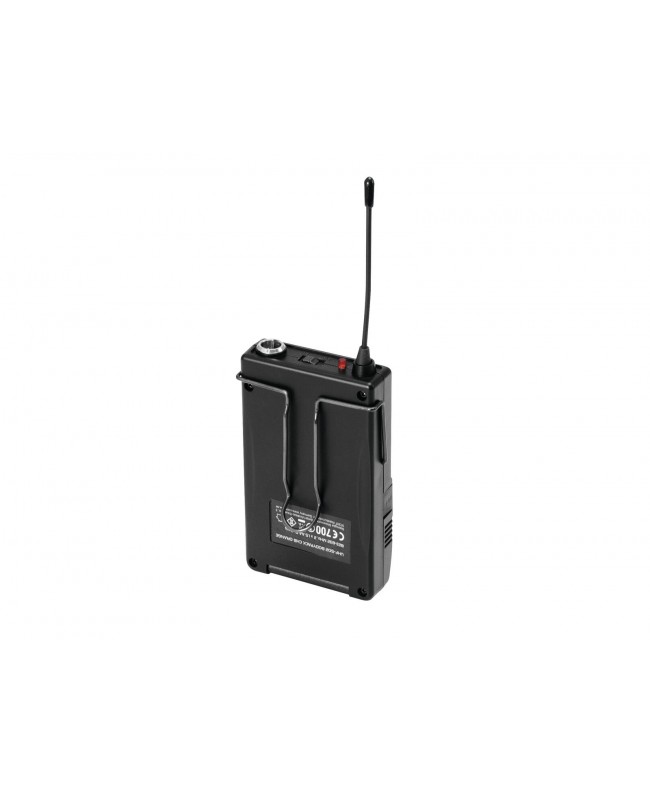

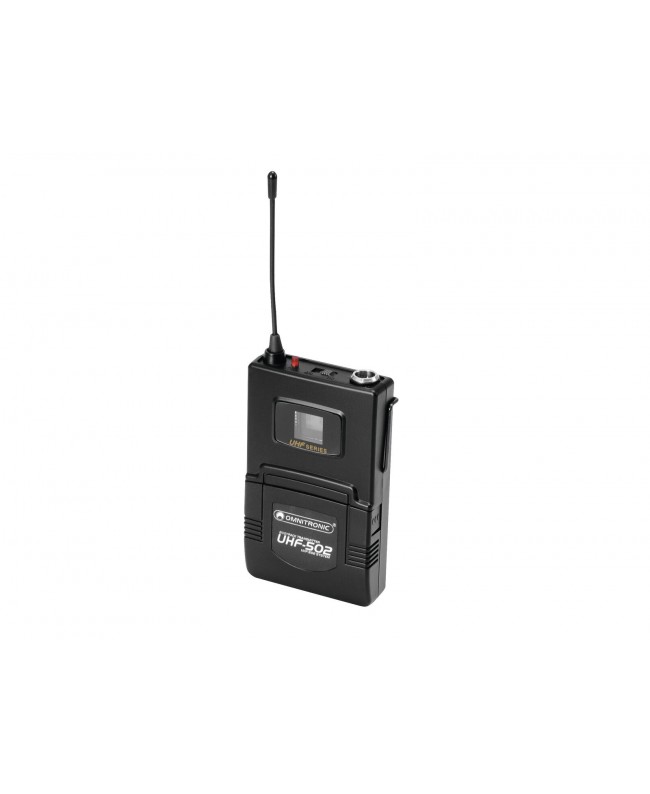

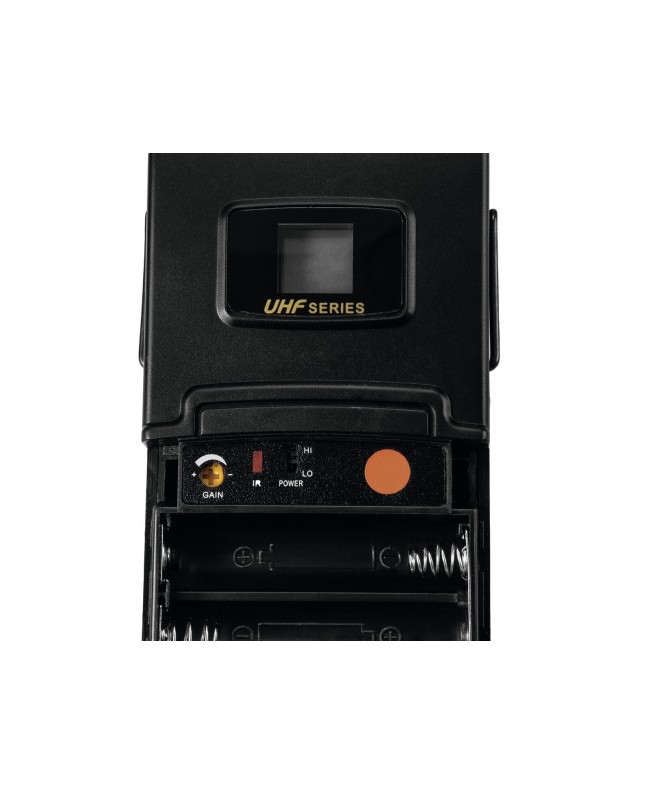

Omnitronic UHF-502 Bodypack incl. 823-832MHz Lavalier (CH B orange)

• Type: Bodypack with microphone
• Display type: LCD display
• Display reading: Charge status indicator , channel
• Weight: 0.14 kg
• Type: Pocket transmitter
• Power connection: Battery/battery pack
• Battery: 2 x Mignon (AA) (not included)
• S/N ratio: 90 dB
• THD: 1 % at 1 kHz
• Range: Range up to 50m with line-of-sight
• Frequency band: UHF 823 - 832 MHz
• Frequency stability: +- 0.001 %
• RF power output: 5 mW (LO); 10 mW (HI)
• Modulation: FM
• Frequency selection: 100 switchable frequencies
• Output voltage: 5 V
• Connections: Input: microphone via mini XLR (M) 3-pin mounting version
• Color code: CH A= green, CH B= orange,
• Switch: On/off switch
• Dimensions: Width: 6.6 cm, Depth: 2.2 cm, Height: 10.8 cm
• Type: Lavalier microphone
• Power supply: 2-10V DC
• Cable length: 1 m
• Capsule type: Electret, Size: Ø 5.2 mm x 9.7 mm
• Polar pattern: Cardioid
• Frequency range: 50 - 15000 Hz
• S/N ratio: 63 dB
• Sensitivity: -47 dB
• Impedance: 680 Ohm
• Connections: Output: 1 x Mini XLR (F) 3-pin

Scope of delivery

• 1 x transmitter
• 1 x microphone
