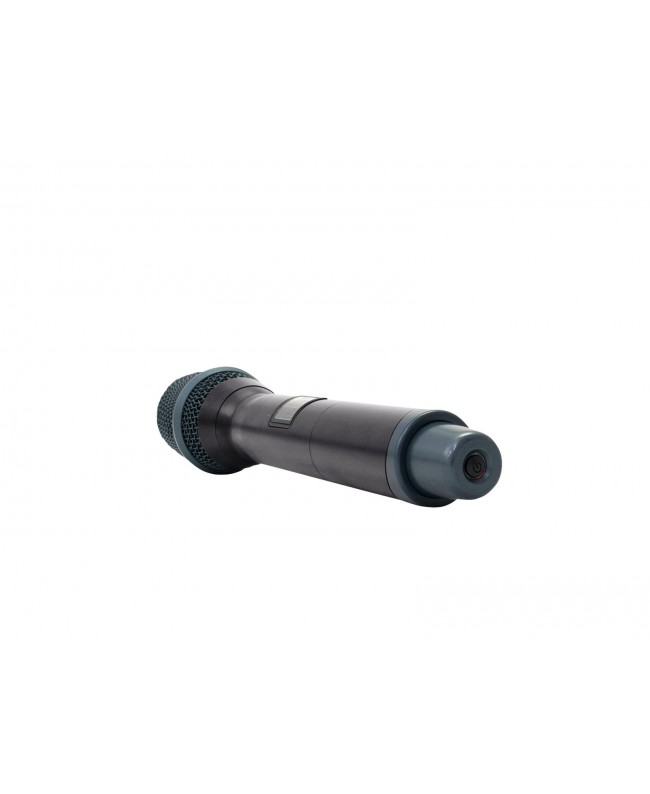

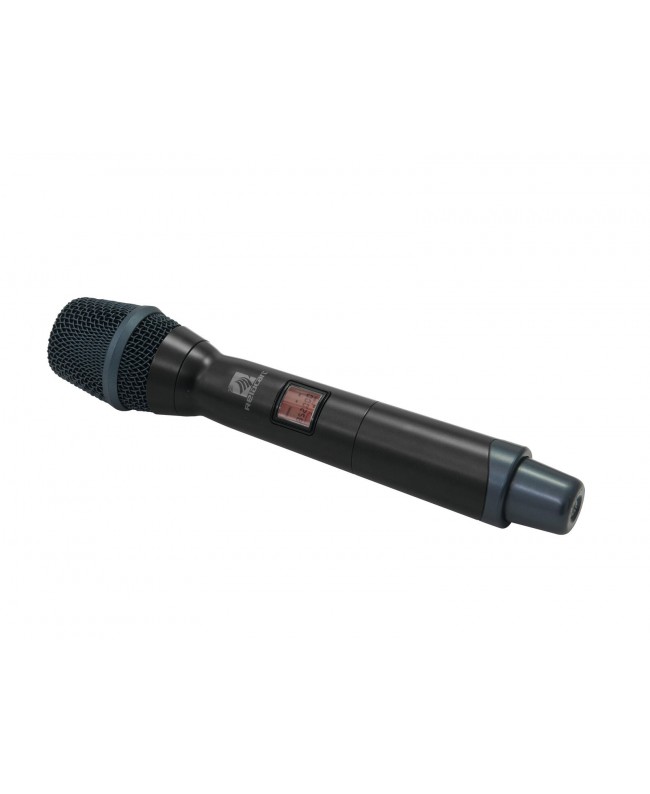

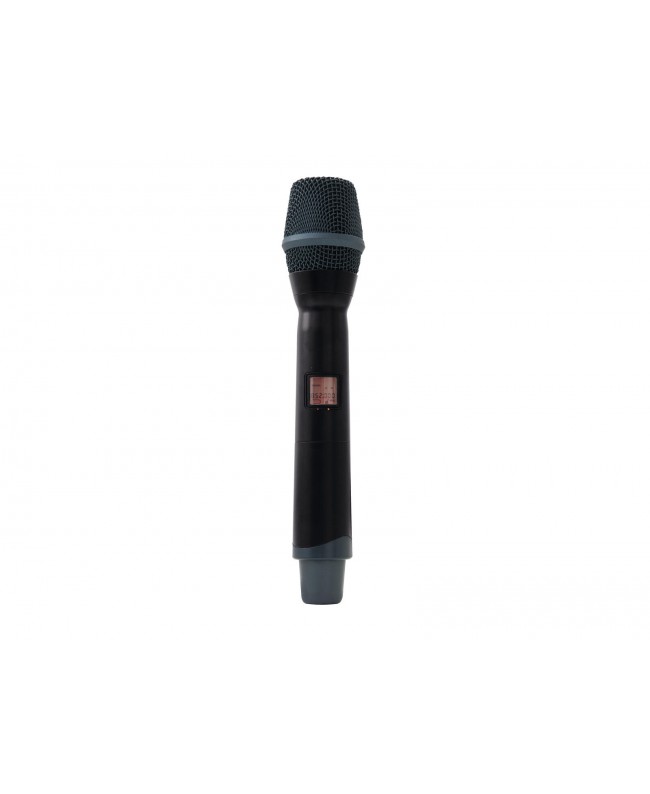

Relacart H-31 Microphone for HR-31S system Transmitters
  • -14%

Relacart H-31 Microphone for HR-31S system

€326.00
€280.00 -14%
Tax included
Lowest price within the last 30 days: €280.00

Hand-held microphone with PLL multifrequency transmitter

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 07/10/2026? Order within 15 hours and 3 minutes

Free shipping

Compare

wishlist

Relacart H-31 Microphone for HR-31S system



  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Ergonomic aluminum alloy housing, applicable for touring
  • 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
  • 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
  • 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • RF output power Hi/Low adjustable
  • Gain level Hi/Mid/Low adjustable
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Cardioid
  • Operating range up to 80m with line-of-sight
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • UHF 731 - 790 MHz License-free and approved in large parts of Europe
  • OLED display
  • Charge status indicator
  • Type: Hand-held transmitter
  • Power supply: 3V DC
  • Power connection: Battery/battery pack
  • Capsule type: Dynamic
  • Polar pattern: Cardioid

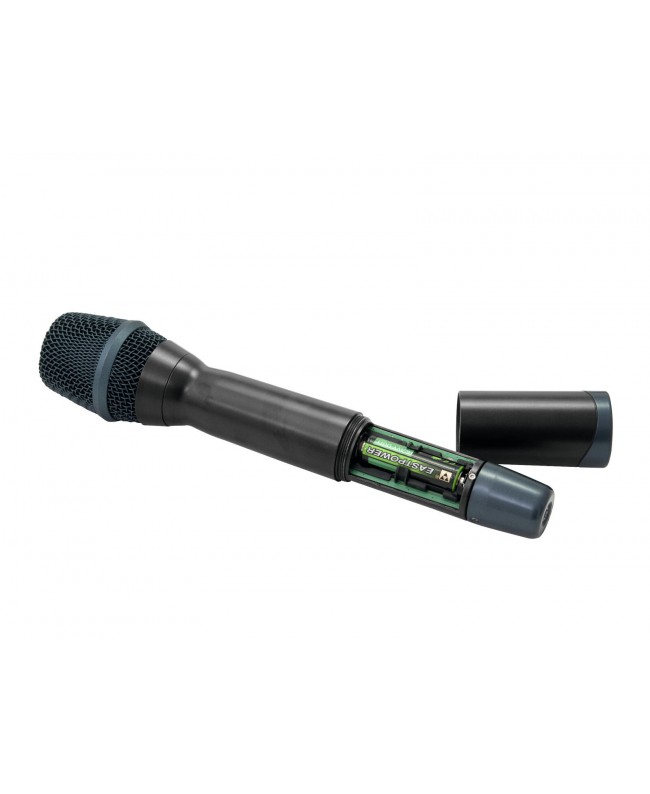

  • Battery: 2 x Mignon (AA) (not included)
  • Frequency range: 100 - 18000 Hz
  • Max. SPL: 145 dB
  • Range: Range up to 80m with line-of-sight
  • Frequency band: UHF 823 - 832 MHz; UHF 731 - 790 MHz
  • Switching bandwidth: 68 MHz
  • RF power output: 10 mW (LO); 40 mW (HI)
  • Modulation: FM
  • Frequency selection: 292 switchable frequencies, In 10 groups with up to 25 preset frequencies each and, In 8 groups with up to 7 preset frequencies each
  • Display type: OLED display
  • Display reading: Frequency , channel , charge status indicator , Mute
  • Switch: On/off/mute switch
  • Material: Aluminum
  • Color: Black
  • Dimensions: Length: 26.5 cm, Diameter: Ø 5.4 cm
  • Weight: 0.29 kg

Scope of delivery

  • 1 x microphone
  • 1 x user manual
  • 1 x declaration of conformity

13055201

Data sheet

Color
Black
Giorni di elaborazione
4
Transducer type
Dynamic
Radio frequency
UHF
