Alutruss Truss Transport Board Combo incl. 3 Wheels

• The article is delivered dismantled

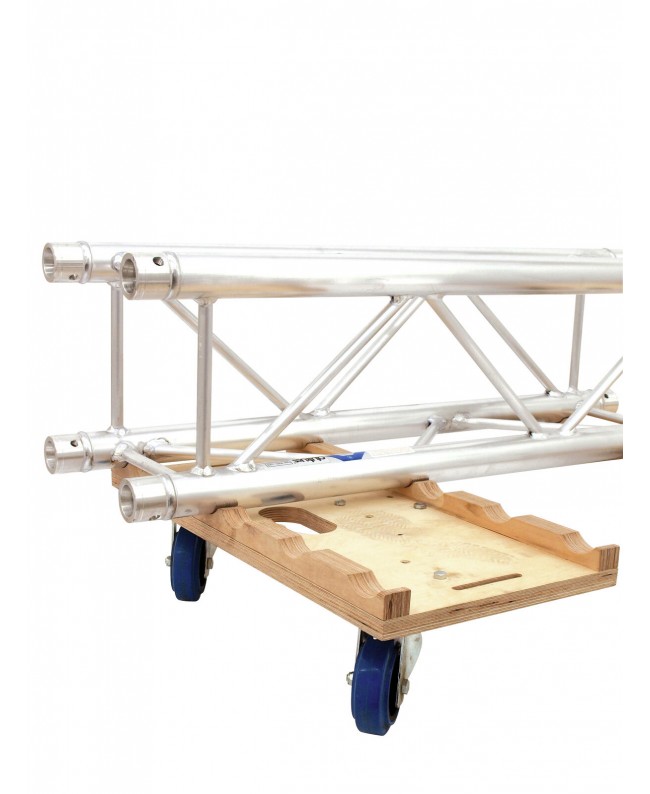

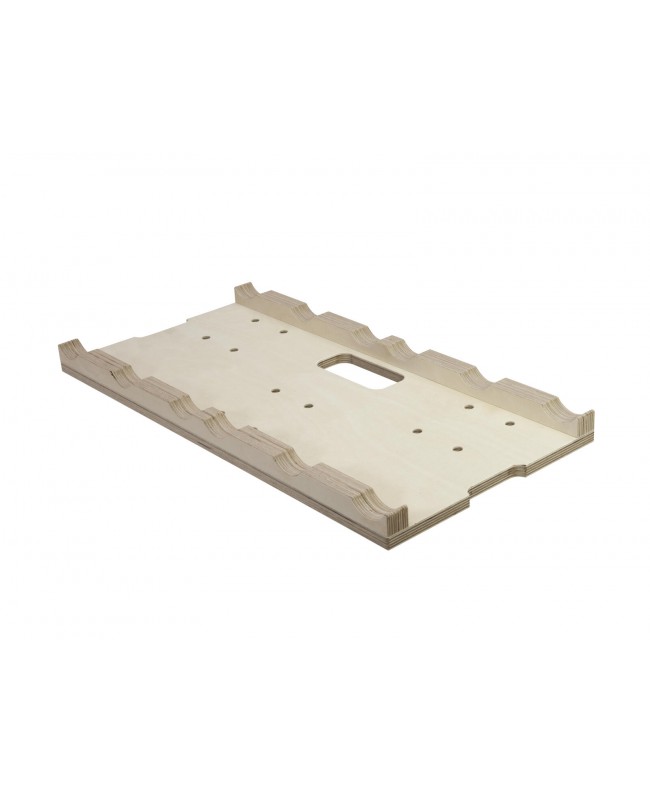

ALUTRUSS Truss Transport Board Combo for 3 Wheels

Transport cart for QUADLOCK and TRILOCK truss elements

• Practical transport cart made of multiplex wood
• Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
• Quick and secure stacking with optional stacking ridges
• Cut-outs for safety bands for safe transport of the truss elements
• Grip hole
• 12 borings for mounting castors (optional)

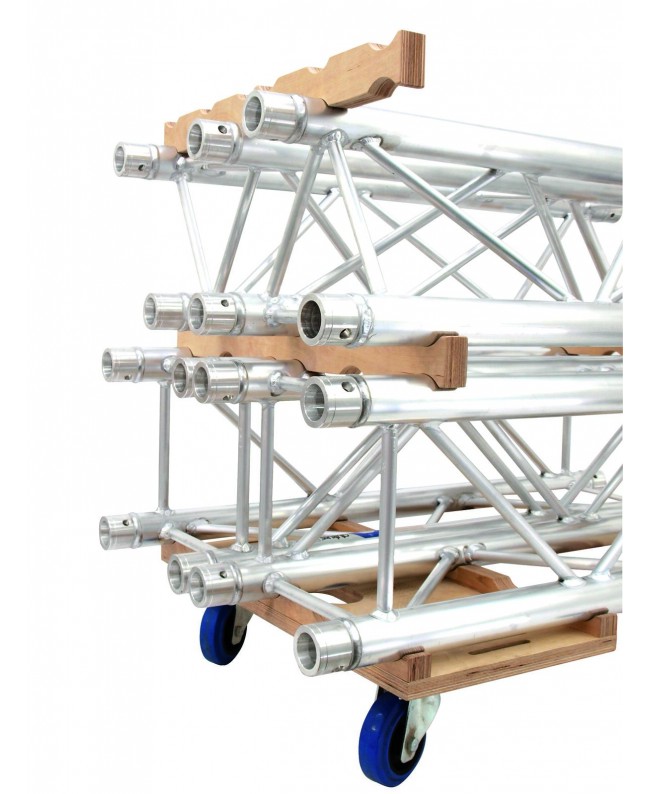

• The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
• Made in Germany

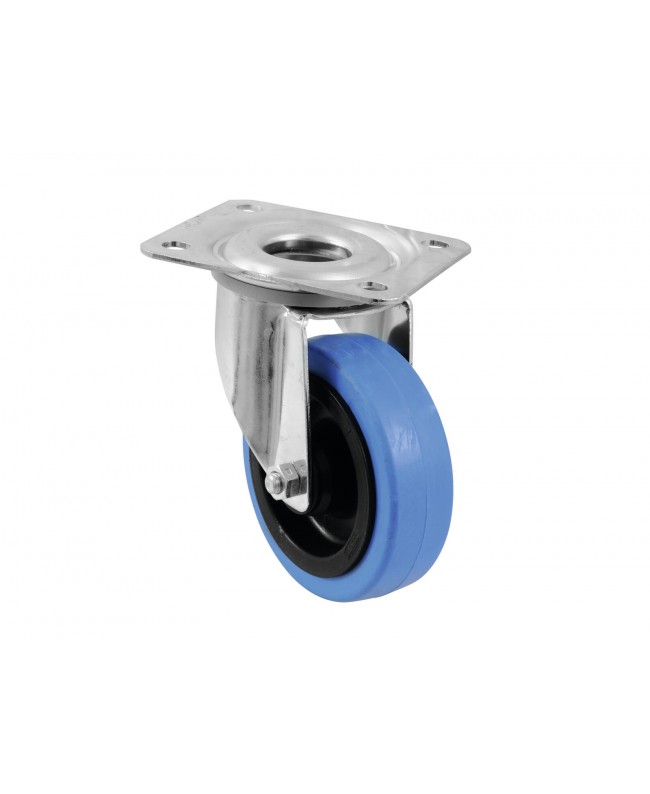

ROADINGER Swivel Castor 100mm BLUE WHEEL light blue

100 mm swivel castor

• Double ball race
• Housing made of steel, zinc-plated
• Roller race hub bearing
• Replaceable bolt-on wheel
• Carrying capacity: 450 kg per set (4 castors)
• Made in Germany
• For further information about this product, please refer to the Data Sheet under Downloads

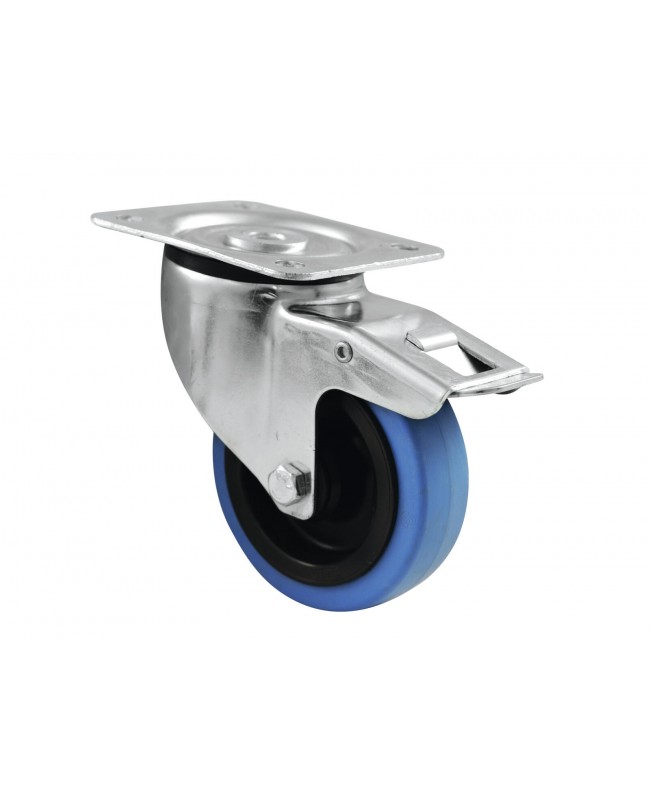

ROADINGER Swivel Castor 100mm BLUE WHEEL with brake

100 mm swivel castor

• Double-action brake (wheel and swivel)
• Double ball race
• Housing made of steel, zinc-plated
• Roller race hub bearing
• Replaceable bolt-on wheel
• Carrying capacity: 450 kg per set (4 castors)
• Made in Germany
• For further information about this product, please refer to the Data Sheet under Downloads

ROADINGER Bolt Set for Wheels

Complete set (4 x screw, 4 x nut, 4 x washer)

• Screw: hexagon screw M8 x30 DIN933 galvanized
• Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
• Washer: size 8.4 DIN125 electrogalvanized

Scope of delivery
