Freqport FreqInOut FO1


€623.00
€573.00 -8%
Tax included
Lowest price within the last 30 days: €573.00

Analog 4-channel patchbay with plug-in integration


Qty

In Stock

Delivery

Do You want Your order by Thursday, 16/10/2025? Order within 7 hours and 3 minutes

Free shipping


wishlist

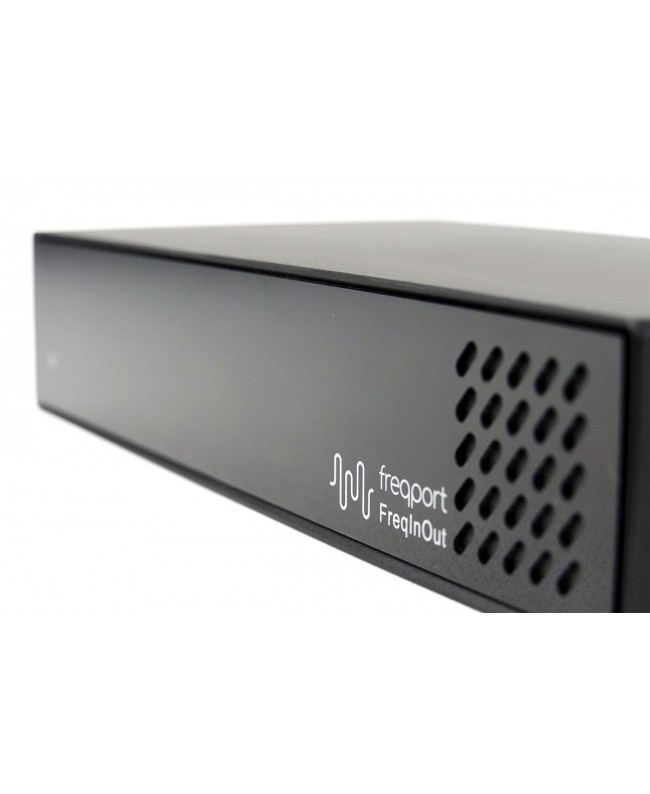

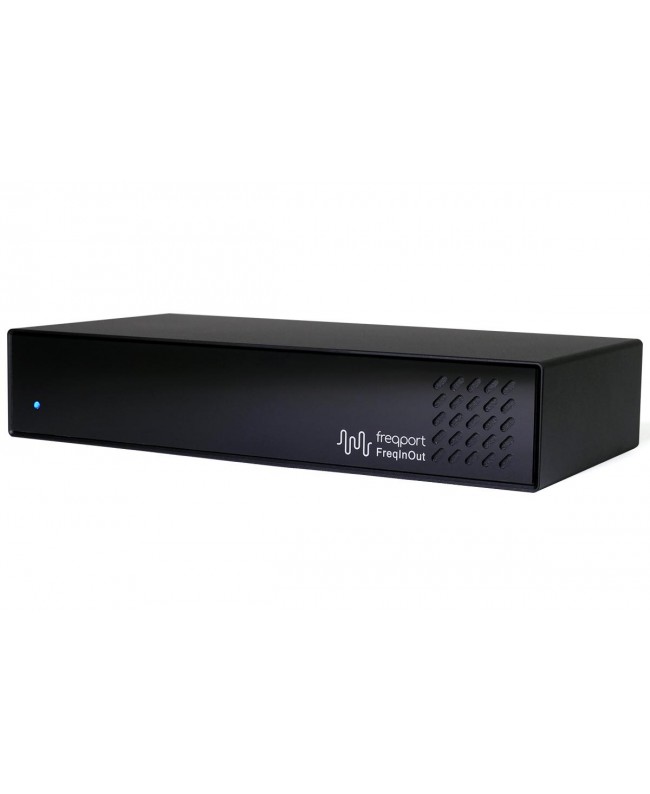

Freqport FreqInOut FO1

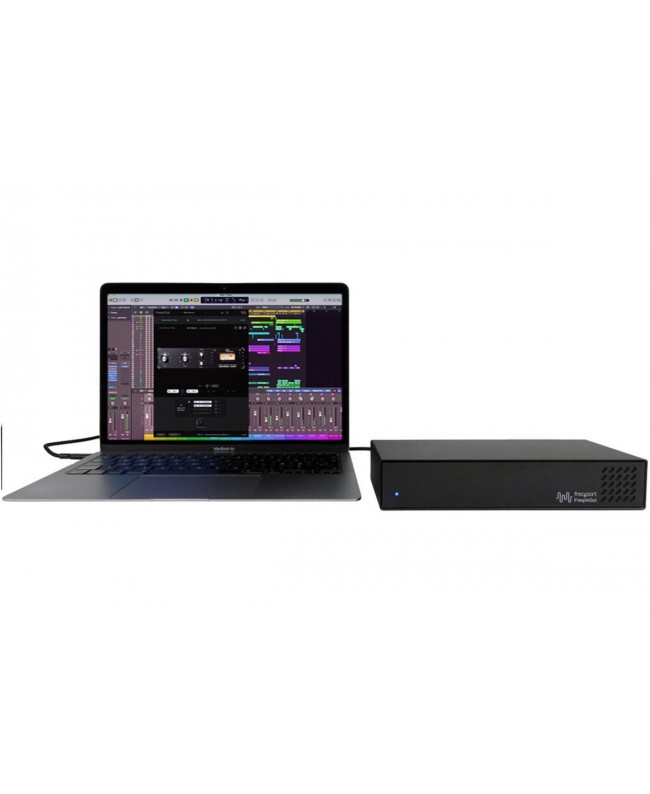

The FreqInOut FO1 is a user-friendly hardware interface with 4 audio inputs and outputs that connect to a computer via USB-C. FreqlnOut allows users to seamlessly integrate outboard audio gear, directly into preferred audio software via its hardware matrix. It's perfect for engineers and producers wanting to use outboard gear with least amount of hassle, removing the complexity of routing and cabling setup, removes inconsistent timing issues when recording, and enables you to process multiple signals simultaneously. Finally, the interface is expandable and allows you to add four or eight more I/O features a Mid-Side mode, a Hardware Mix for parallel processing, and sports top-tier ESS 32 bit converters with support for up to 192kHz sample rates. FreqInOut turns your outboard equipment into plugins in your DAW! How does it work? The FreqInOut couldn't be easier to use. Just plug it in with a single USB cable, install the software, power up, open the interface, and connect your outboard equipment, and get to work! All the complexity in setting up external effect and instruments inside your DAW has been removed. The built-in hardware Matrix allows you to reconfigure the signal flow through your outboard equipment and does so without adding latency. You can even capture your hardware settings by scanning a QR Code and create a custom skin inside the plug-in. Pretty cool, right? With FreqInOut, you can bring all you real outboard processors, effects and instruments into your mix effortlessly. Whether enabling M/S mode, utilizing Hardware Mix for parallel processing, or fine-tuning your gain staging, the Freqport FreqInOut Fo1 interface lets you do all that and more. Multiple analog processing circuits allow you to process more than one audio signal at the same time within your workflow, something that is impossible with single-circuit analog processors. It all adds up to a unit with improved efficiency that will save you time.

  • USB Power: 5 W
  • Power Input: DC plug-in power (optional) 12 V DC 1A Use only Freqport adaptor.

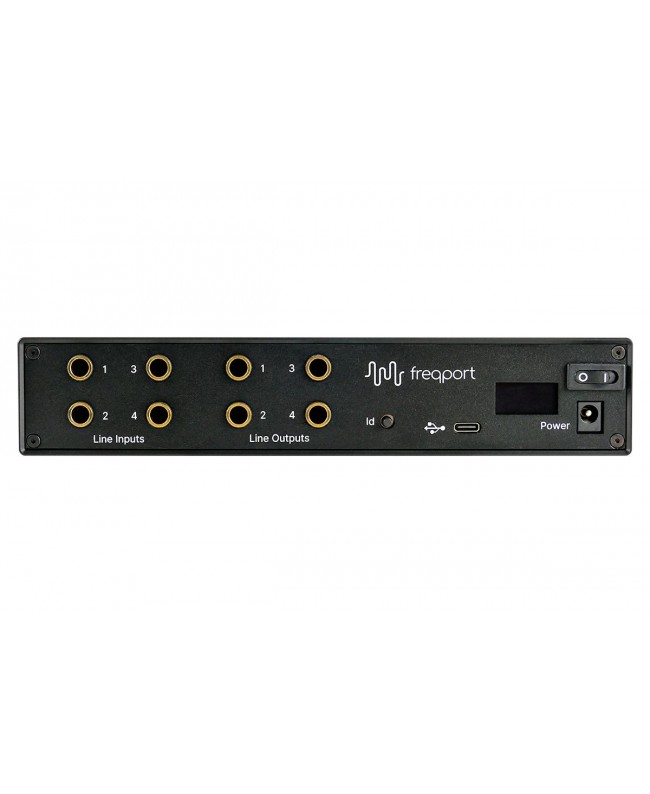

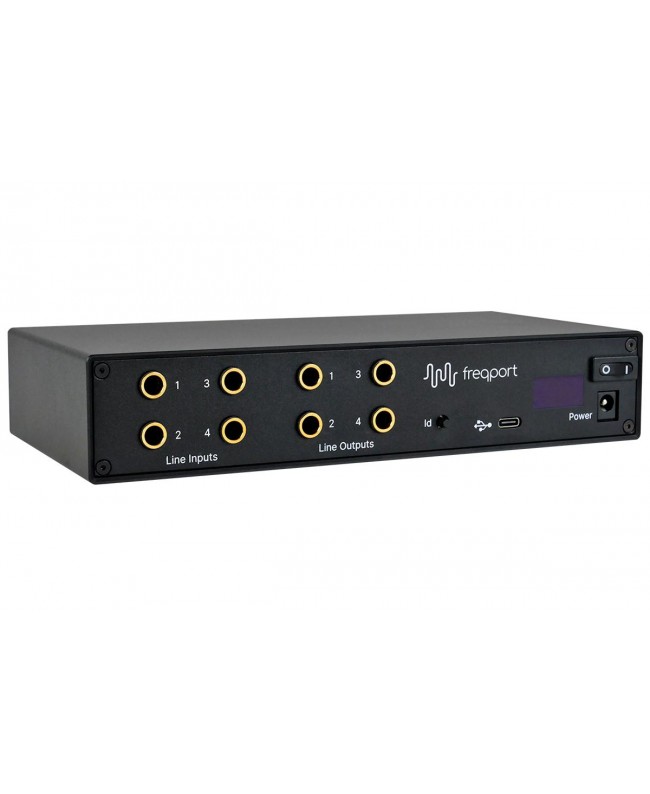

  • Audio Input & Output: 4x Jack Inputs (+18dBu levels with -10dBV/+4dBu) 4x Jack Outputs (+18dBu levels) with ANALOG MATRIX per output.
  • 100Vac: 240Vac. 50/60Hz
  • Ambient Temperature Range: 0 to 50C
  • Type-C: 07
  • PRO CONVERTERS: 120dB DNR 32bit DAC, 116dB DNR 32bit ADC Supporting up to 192kHz sample-rate
  • Unit: 220 mm X 105 mm X 43 mm (W x H x D) Boxed: 290 mm x 130 mm x 70 mm (W x H x D)
  • Unit: 810 g Boxed: 1.40 kg
  • Rackmount kit, universal, available at your local retailer. Recommended: Thomann; Sweetwater; PennElcom

F01
