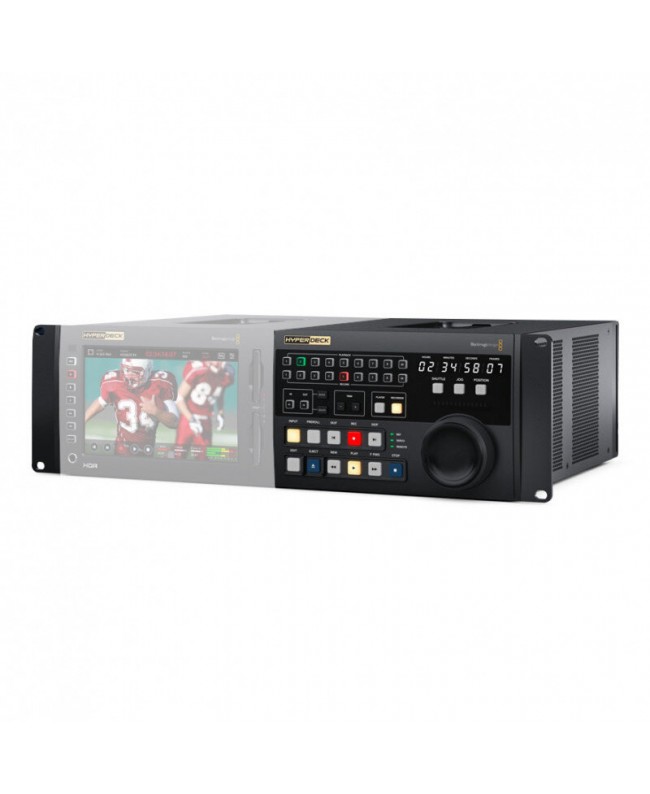

Hyper. Deck Extreme Control is an advanced control panel designed for broadcasters who want precise and intuitive control of multiple decks at once.
Its design is reminiscent of classic studio decks, with a familiar layout and a jog/shuttle wheel for smooth, detailed control over playback and recording. It supports up to eight devices via RS-422, allowing integration with both modern equipment like Hyper. Decks and legacy systems like Betacam SP or Digital Betacam.
One of its most exciting features is the ability to automatically edit from tape to Hyper. Deck, using video conversion via Teranex Express to adapt older formats to current standards. The large, easy-to-read timecode display updates in real time for maximum accuracy during operations.
Technical characteristics
Connections
SDI video inputs: 4
SDI video outputs: 5 (12G-SDI A, B, C, D and 3G-SDI monitor out)
SDI rates: 27 0Mb, 1.5G, 3G, 6G, 12G
HDMI 2.0 video inputs: 1
HDMI 2.0 video outputs: 1
Analog video inputs: 1 x component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
Analog video outputs: none
Analog audio inputs: 4 channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors
SDI metadata support: HD RP188 and closed captioning CEA-708, HDR metadata supported on SDI
Audio sampling: television standard 24-bit, 48 kHz sample rate
Video sampling: 4:2:2 YUV
Color precision: 10-bit
Color space: REC 601, REC 709, REC 2020
LUT support: 33 point 3D LUTs can be applied via the LUTs menu tab
Multi rate support: auto detection of SD, HD, 6G-SDI, 12G-SDI, 2SI quad link 12G-SDI
Copy protection: HDMI input is unable to capture from copy protected HDMI sources
Media
Cache recording: slot for optional M.2 PCIe NVMe card for cache recording up to 16 Gb/s, 60 mm, 80 mm and 110 mm supported
Media: 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K
Media type: CFast card and external USB-C flash drives
Media format: can format media to ExFAT (Windows / Mac) or HFS+ (Mac) file systems
Recording
Source: input options include SDI, 4 x SDI (simultaneously records 4 SDI inputs up to 2160p 60 as separate files), HDMI, component, composite
Supported codecs
Video codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 4320p 60, playback only of ProRes 4444 QuickTime up to 2160p 60 with auto routing of fill and key over SDI A and B outputs, DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps, DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps, H.265 medium 4:2:0 10-bit, H.265 low 4:2:0 10-bit for all 2160p formats up to 60fps, H.264 SDI 4:2:2 10-bit, H.264 high 4:2:0 8-bit, H.264 medium 4:2:0 8-bit, H.264 low 4:2:0 8-bit for all formats up to 1080p 60
