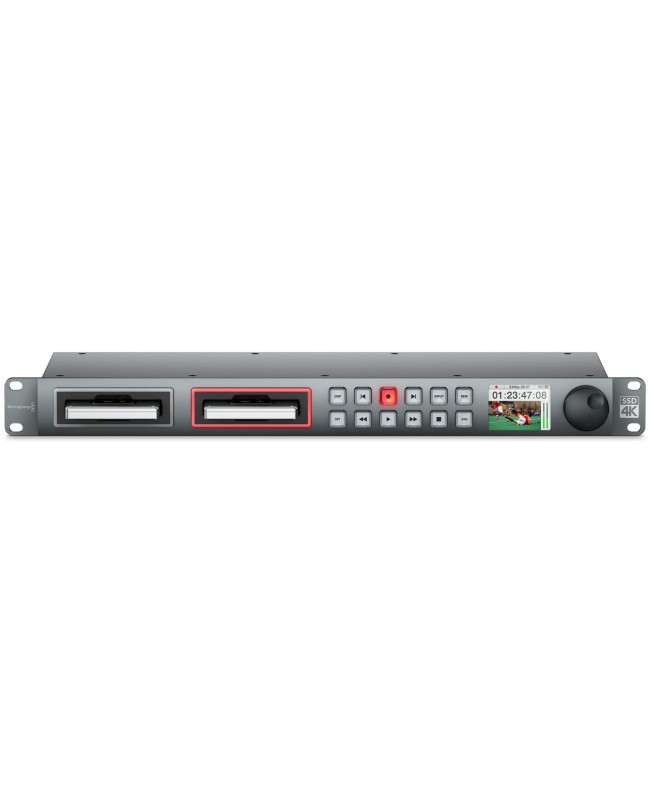

Blackmagic Design HyperDeck Studio Pro

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 4, Single Link or Quad Link.
• SDI Rates: 270Mb, 1.5G, 3G, 6G.
• HDMI Video Inputs: 1 x HDMI type A connector including Ultra HD 4K support.
• HDMI Video Outputs: 1 x HDMI type A connector including Ultra HD 4K support.
• Analog Video Inputs: Y, B-Y, R-Y
• Analog Video Outputs: Y, B-Y, R-Y
• Analog Audio Inputs: 2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.
• Analog Audio Outputs: 2 x XLR connectors for professional balanced analog audio.
• Timecode Connection: 1 x XLR in and 1 x XLR out.
• SDI Audio Inputs: 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
• SDI Audio Outputs: 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
• HDMI Audio Inputs: 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
• HDMI Audio Outputs: 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
• Reference Input: Tri-Sync or Black Burst.
• Recorder Configuration: Front panel configurable or USB 2.0 high speed interface.
• Computer Interface: 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B
• SDI Metadata Support: Time Code: HD RP188. Closed Captioning: CEA-708.
• Audio Sampling: Television standard sample rate of 48kHz and 24-bit
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 601, REC 709
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

• Media: 2 x SSD for SD, HD and Ultra HD recording.
• Media Type: SATA-II or SATA-III solid state disc.
• Media Format: Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

• Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60.

Control

• Built in Control Panel: 12 buttons for transport and menu control, 2.2 inch color display.
• External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.

Software

• Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start, or via updater software.

Display

• Built in LCD for video, audio and timecode monitoring and menu settings.

Physical Installation

• 1 rack unit size. Less than 7 inches deep.

Power Requirements

• Power Supply: 1x Internal 100 - 240V AC.

Environmental Specifications

• Operating Temperature: 5° to 40° C (41°to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• HyperDeck Studio Pro
• SD card with software, user manual, Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
