Novastar VX2000 Pro

The VX2000 Pro is a powerful video processor that offers an all-in-one solution for driving large LED screens. As the big brother of the VX1000, it can drive much higher resolutions and more LED screens. It manages up to 13 million pixels in total, with a maximum width of 16,384 pixels and a maximum height of 8,192 pixels, ideal for ultra-wide and ultra-tall LED screen applications.

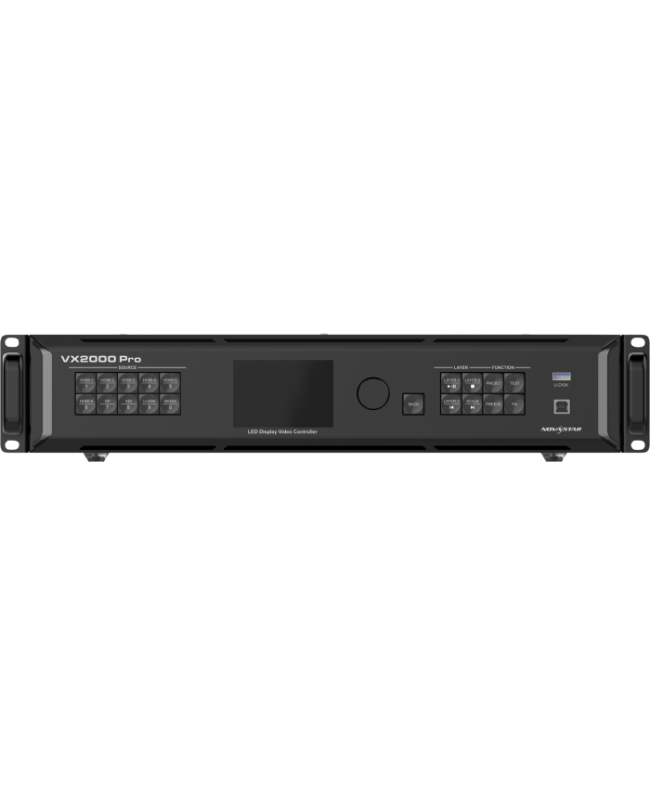

The VX2000 Pro is equipped with powerful front-end processing and eliminates the need for an external scaler. The HDMI Mosaic function allows you to combine 2x HDMI 2.0 or 4x HDMI 1.3 inputs to easily drive large LED screens. Switch seamlessly between sources with support for up to 12 2K x 1K tiles (position and size can be adjusted). The VX2000 Pro also offers color correction and accepts the most common image interfaces. Input can be selected easily with the direct access buttons on the front and the bright LCD display allows you to navigate through the intuitive menus. Thanks to the 3D emitter input, also suitable for 3D audiovisual LED screen configurations, the internal media player function allows multimedia files to be played directly on LED screens without the need for additional equipment.

In addition to the integrated sending card with 20 Ethernet ports, the VX2000 Pro offers the option of installing an SFP module (101623) to cover distances greater than the 100-meter limit of Ethernet cables. This can be used to control another VX2000 Pro to control the LED screens.

• Internal scalability function and Image Mosaic support

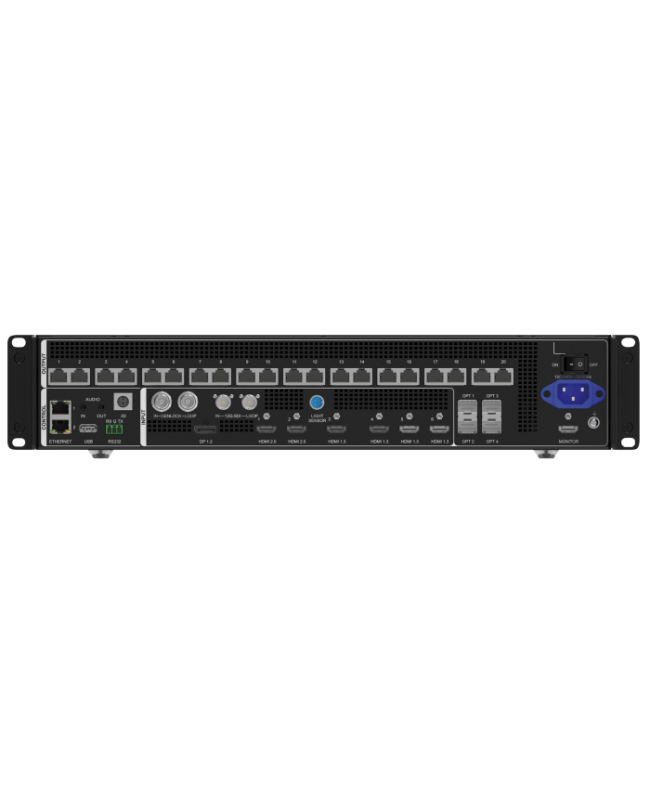

• Inputs: 1x 12G SDI / 1x DP 1.2 / 2x HDMI 2.0 / 4x HDMI 1.3 / 2x Optical / 1x USB 3.0
• Outputs: 1x 12G-SDI / 1x HDMI 1.3 / 4x Optical (optional)
• Up to 12 2K x 1K levels
• 20x Ethernet ports control up to 13 million pixels
