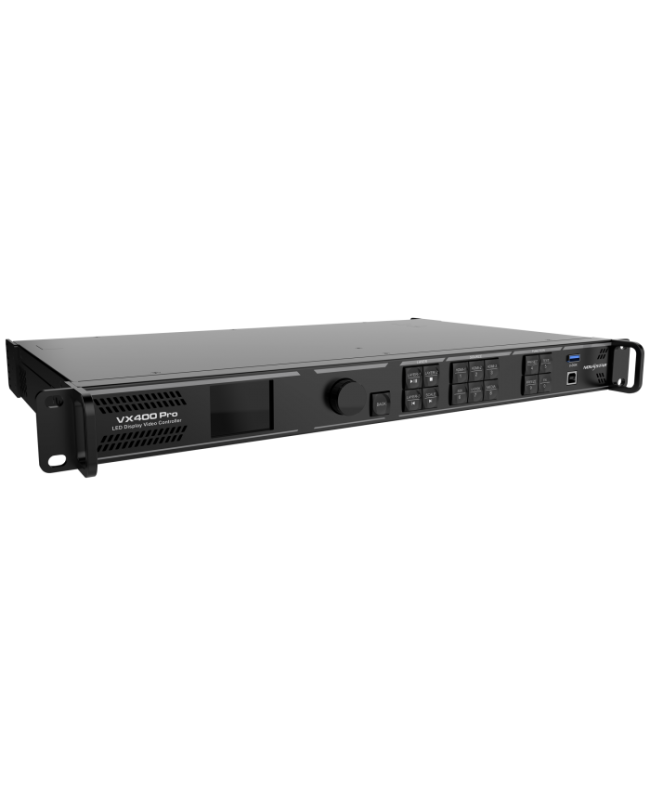

Novastar VX400 PRO

The Novastar VX400 Pro is the successor to the VX400 and offers an all-in-one solution for managing small and medium-sized LED screen installations. It can handle up to 2,600,000 pixels in total, with a maximum width of 10,240 pixels or a maximum height of 8,192 pixels, ideal for ultra-wide and ultra-high LED screen applications.

The VX400 Pro offers a wide variety of video inputs and allows you to switch seamlessly between multiple input sources. It supports six layers, has powerful front-end processing with color correction, and eliminates the need for an external scaler. An internal media player allows you to play content from a USB device without the need for additional external hardware.

In addition to the 4 integrated outputs, two fiber optic output ports are available to cover distances beyond the 100-meter Ethernet cable limit. When using fiber optic outputs, an additional optical conversion unit is required to drive the LED displays. In this case, you can use one of the separately available Novastar CVT10-M or CVT10-S fiber converters, or a second VX400 Pro in fiber converter mode. A light sensor input is available for direct connection of a light sensor, enabling automatic brightness control.

The screen can be configured via the front panel, NovaLCT, the Unico web page, and the VICP application. The sleek 1U enclosure fits perfectly into a 19-inch rack or flight case, making it ideal for rental companies and fixed installations.

• Internal scalability feature
• Inputs: 1x 3G-SDI, 1x HDMI 2.0, 2x HDMI 1.3, 1x USB 3.0
• Outputs: 1x HDMI 1.3, 4x Ethernet, 2x optical, 1x 3D emitter output
• Internal media player
• 4 Ethernet output ports to control up to 2,600,000 pixels
