Novastar VX600 PRO

The Novastar VX600 Pro is the successor to the VX600 and offers an all-in-one solution for managing small and medium-sized LED screen installations. It can handle up to 3,900,000 pixels in total, with a maximum width of 10,240 pixels and a maximum height of 8,192 pixels, ideal for ultra-wide and ultra-high LED screen applications.

The VX600 Pro offers a variety of video inputs and allows you to switch seamlessly between multiple input sources. In addition, it supports up to six layers, has powerful front-end processing with color correction, eliminates the need for an external scaler, has low latency, and a Gen-Lock function. An internal media player allows you to play content from a USB device without the need for additional external hardware.

In addition to the 6 integrated outputs, two fiber optic output ports are available to cover distances beyond the 100-meter Ethernet cable limit. When using fiber optic outputs, an additional optical conversion unit is required to drive the LED displays. In this case, you can use one of Novastar's CVT10-M or CVT10-S fiber converters, available separately, or a second VX600 Pro in fiber converter mode. A light sensor input is available for direct connection of a light sensor, allowing automatic brightness control.

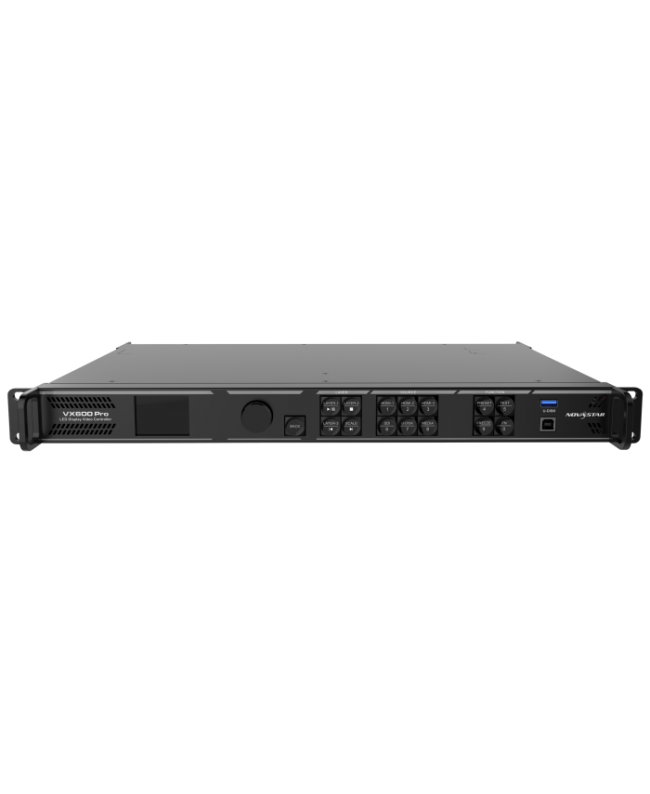

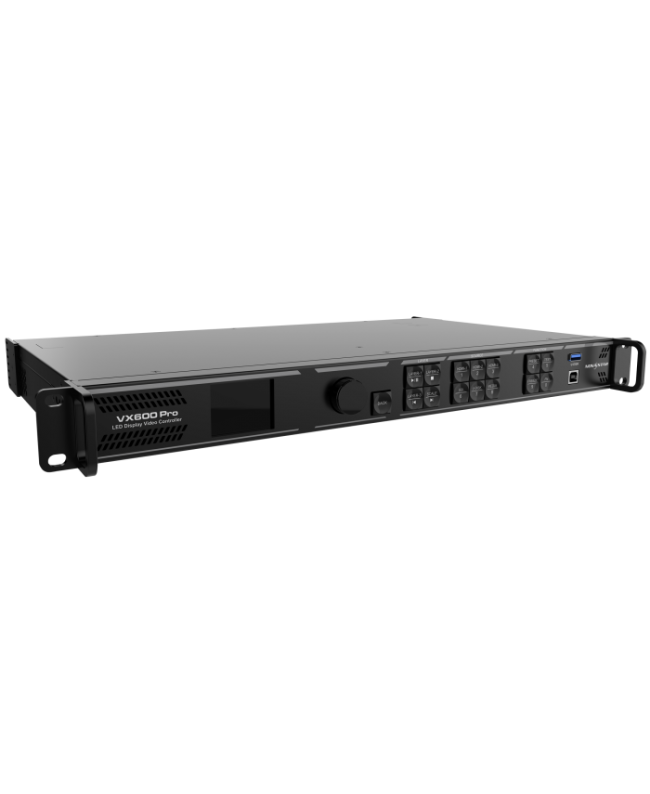

The screen can be configured via the front panel, NovaLCT, the Unico web page, and the VICP application. The sleek 1U enclosure fits perfectly into a 19-inch rack or flight case, making it ideal for rental companies and fixed installations.

• Internal scalability feature

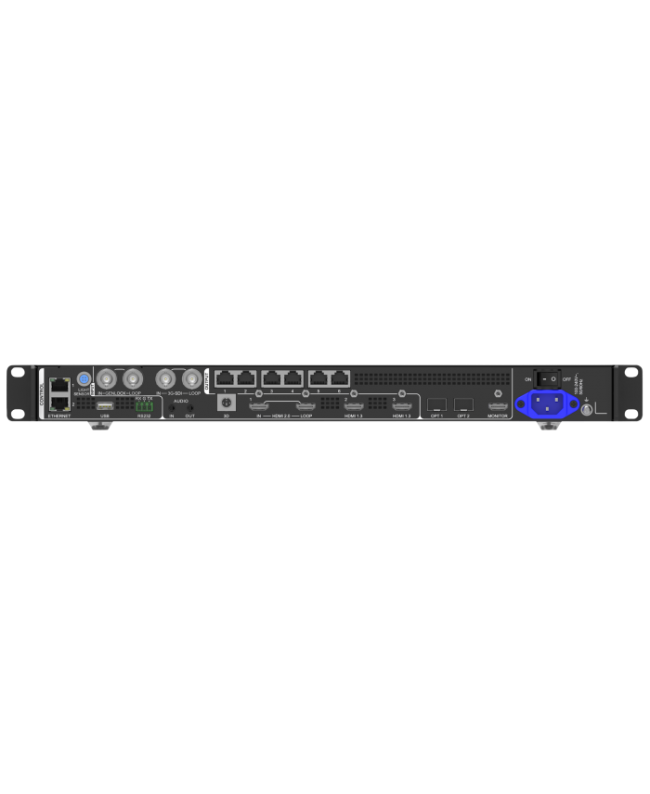

• Inputs: 1x 3G-SDI, 1x HDMI 2.0, 2x HDMI 1.3, 1x USB 3.0
• Outputs: 1x HDMI 1.3, 6x Ethernet, 2x optical, 1x 3D emitter output
• Internal media player
• 6 Ethernet output ports control up to 3,900,000 pixels
