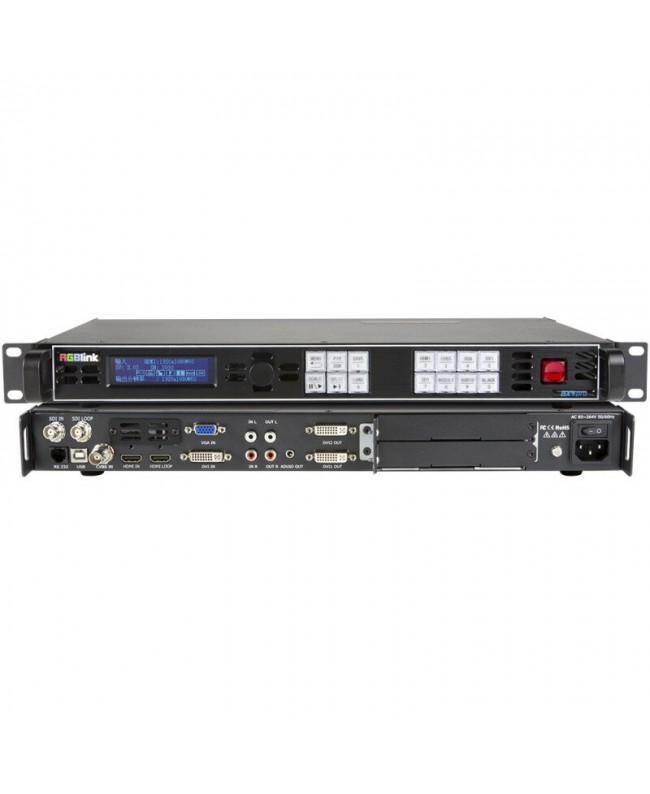

RGBlink GX4pro-1S

GX4pro-1S is the version with pre-installed SDI input module of the GX4pro. It is a processor / scaler for Video wall or LED wall on demand applications that offers a whole series of essential functions, such as seamless switching between sources, transition effects, PIP, dynamic configuration of LED displays, audio management and multi-device splicing, i.e. the possibility of combining multiple GX4pro-1S by connecting them via HDMI loop to obtain the perfect splicing between multiple displays required, for example, in Video walls.

Fully modular, in addition to standard HDMI, CVBS, VGA, SDI (with loop) and DVI inputs, it comes with an empty slot for any single input module that can be chosen from HDMI, DP, DVI, 3G SDI, VGA, CVBS and USB to adapt the GX4pro-1S to a particular application environment.

The two outputs are DVI 2K (2048 x 1152 and #64; 60 Hz) with the possibility of choosing multiple resolutions, even customized, based on the display you want to use. EDID management ensures that the processor output resolution and frame rate are always matched with those of the display. The TAKE button on the front panel, already known to RGBlink users, allows in addition to the preview to change inputs with a transition effect, choosing from one of the 12 available.

The GX4pro-1S supports both embedded audio and audio from an external audio source with both external outputs (OUT L/R, also on 3.5 mm mini-jack). The RCA audio output is ideal for connecting the processor to dedicated audio systems, while the embedded audio is ideal for transmitting audio and video to remote LED displays that include speakers such as in digital signage applications.

GX4pro-1S can work as a LED display controller when universal sender cards are installed in the respective slots; in fact, there are 2 empty slots suitable respectively for a 2.6 Mpixel card or two 1.3 Mpixel cards. Another option for controlling an LED wall is via the RGBlink Subito. NX card at 2.3 Mpixels up to 3840 x 1920 pixels resolution via 4 RJ45 ports, with the advantage of having a library of profiles available for quick configurations.

• Main features
• Picture-in-Picture (PIP)
• Transition effects
• RGBlink instant TAKE with pre-Sync
• Audio controls
• Support for additional input options
• EDID management on board
• On board test patterns
• Support for multi-device cascade
• Two empty slots reserved for universal sender cards and RBGlink Subito. NXQuatro sender module to install
• Support for XPOSE 2.0 control
• Support for RGBLink Open. API
