DAP WMS4T-B Black


€108.50
Tax included

Passive 4 100 V design wall speaker - black


Qty

In Stock

Delivery

Do You want Your order by Tuesday, 28/04/2026? Order within 1 hours and 55 minutes

Free shipping


wishlist

DAP WMS4T-B Black

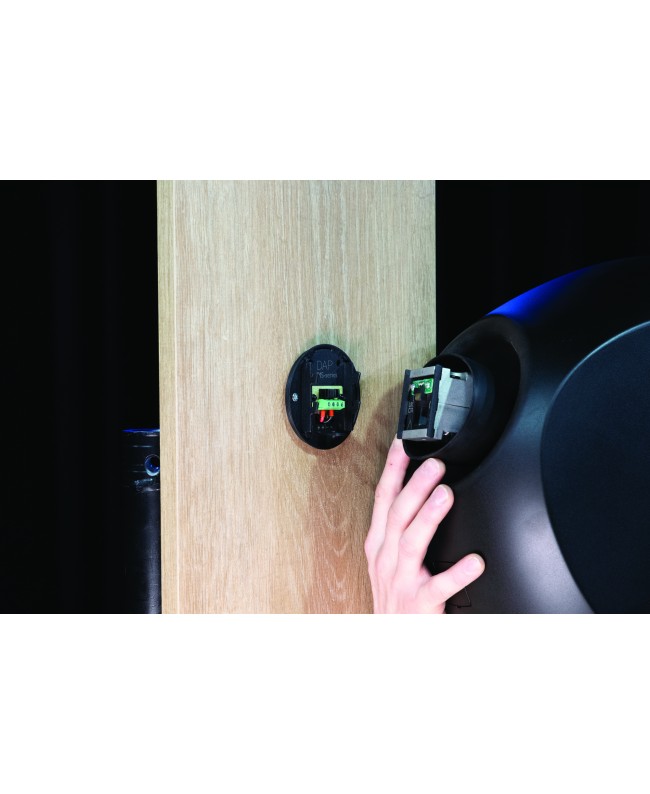

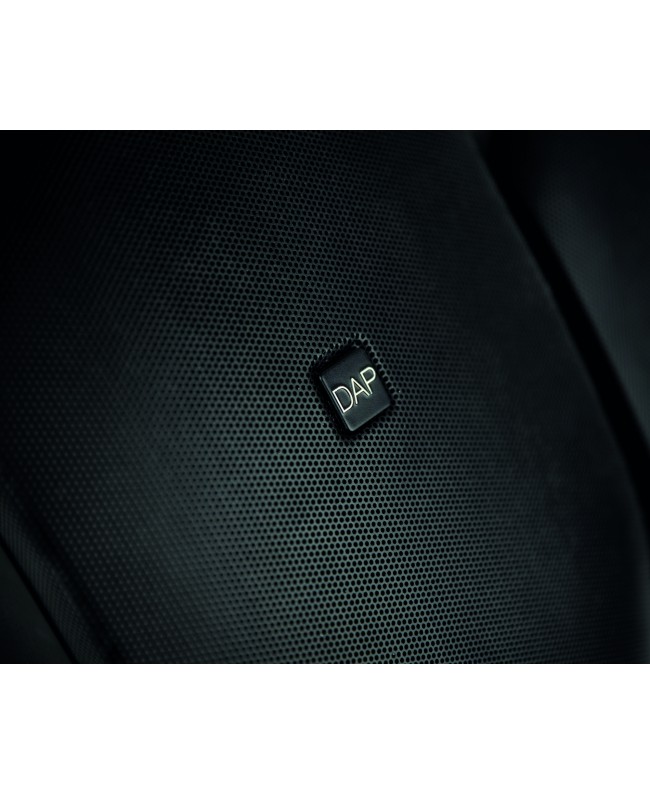

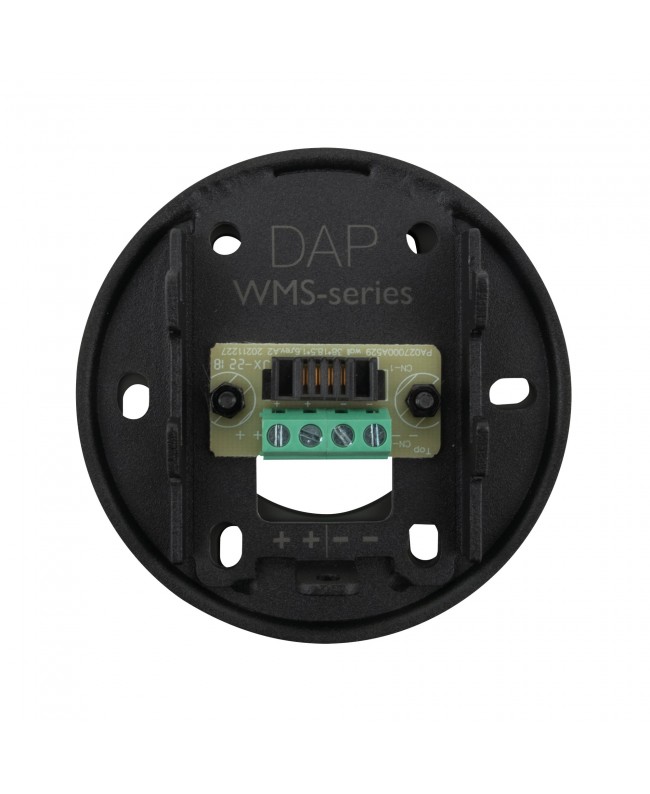

Thanks to the included wall mounting plate, the DAP WMS speakers are incredibly easy to install. The speakers can be mounted horizontally or vertically and the ball joint enables easy rotation and angle adjustment. The DAP logo on the front of the speaker is also rotatable, so that it can always be the right way round.

Each model comes in 16 ohm and 100 V versions. The 100 V versions feature a multiple power tap on the back so that the volume can be easily adjusted to match other components in the system. A clear, full-range sound is ensured on all models thanks to the speakers' 2-way system.

The DAP WMS speakers have a robust, IP54-rated housing made of ABS, which protects the speaker against the ingress of dust and water splashes. This means they can also be used in damp environments and sheltered outdoor locations.

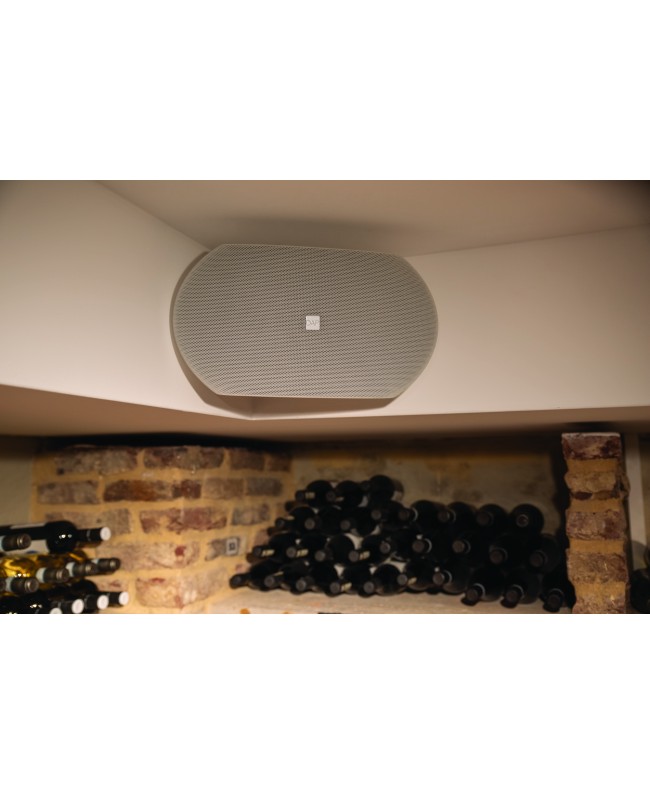

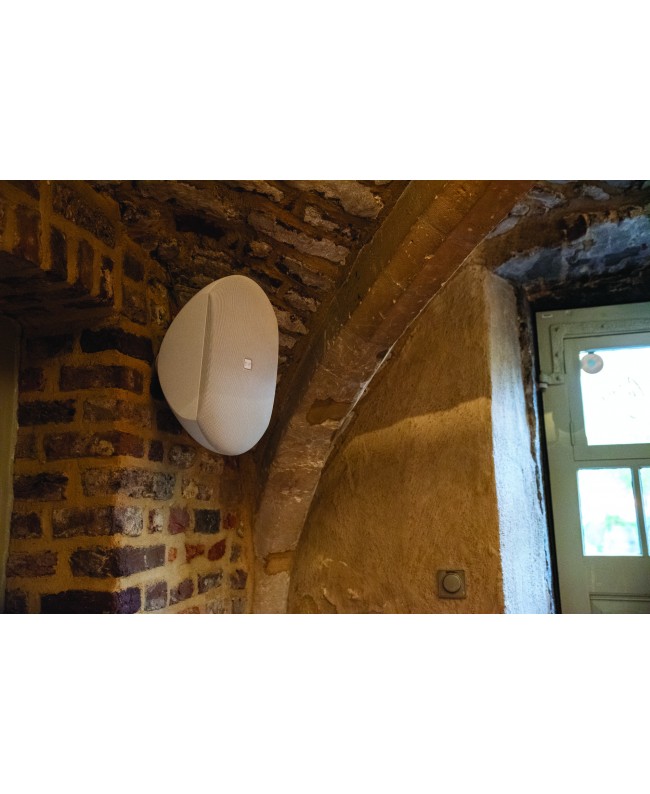

Available in both black and white, the stylish DAP WMS speakers blend beautifully into any surroundings.

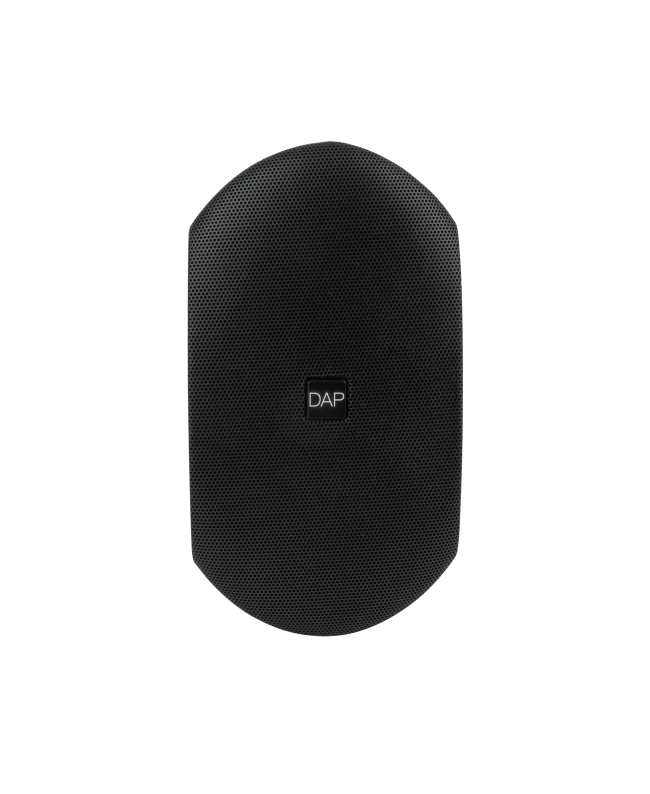

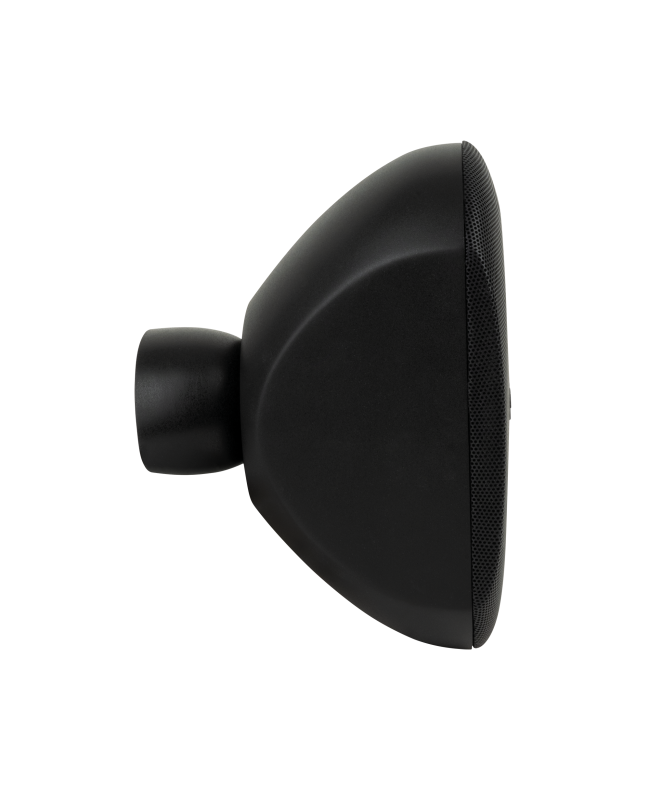

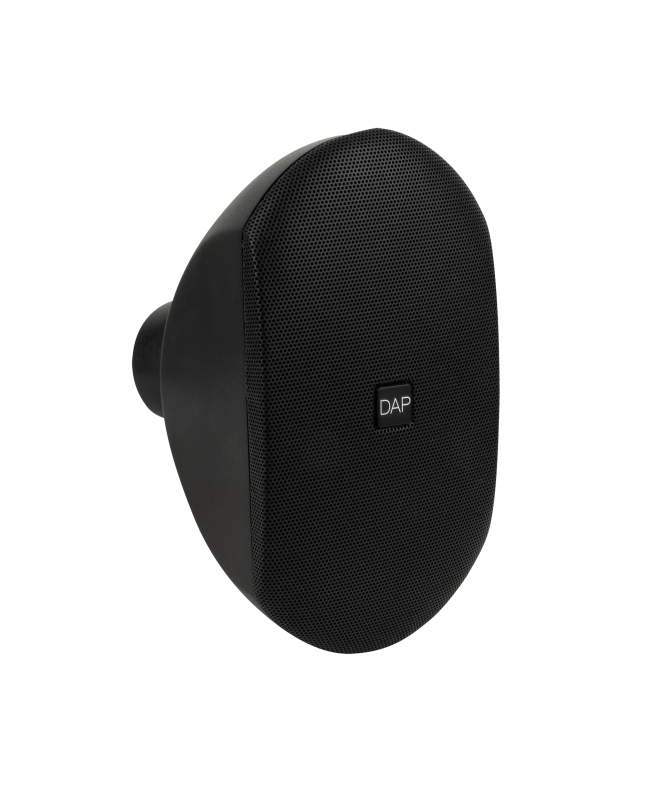

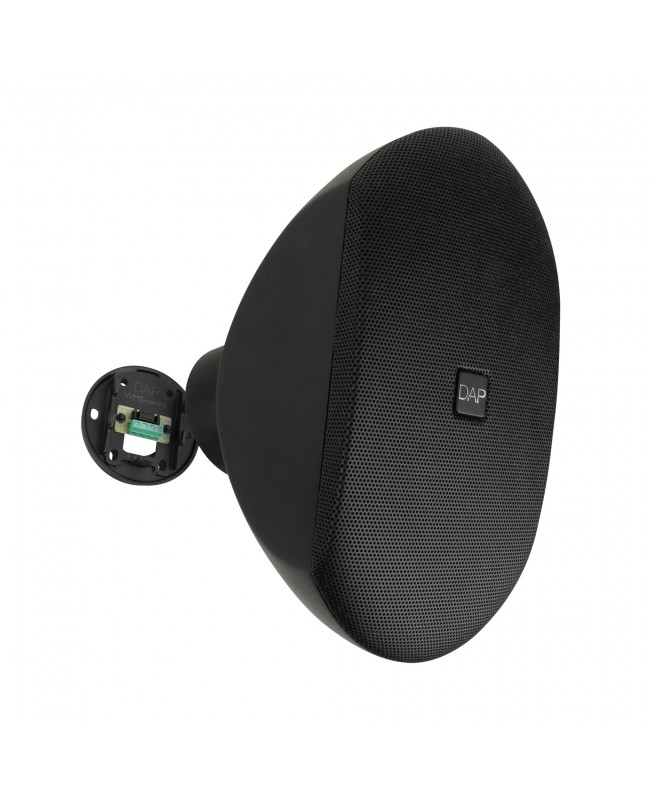

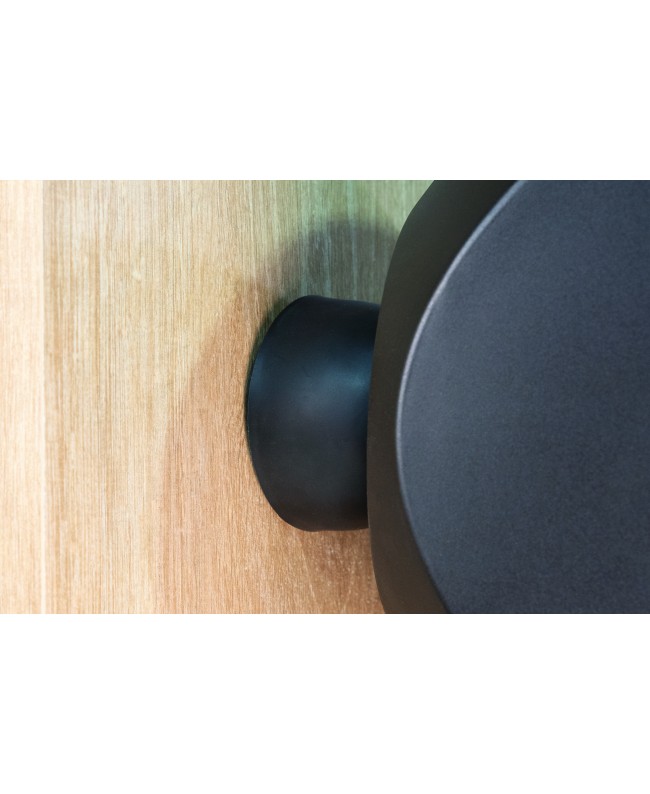

The DAP WMS4T-B is a black 4-inch design wall speaker suitable for 100 V audio installations. The smart design of this speaker allows you to mount it easily by using the included wall mounting plate. This is very beneficial for installers to get the job done quickly. In addition, it is a versatile design speaker that uses a ball joint to make it easily tiltable over 30° in both horizontal and vertical directions and rotatable over 90°. Therefore, the DAP logo on the front is rotatable. Due to the quick, easy installation and versatile applicability, this type of speaker is excellent for use in a lot in public spaces, such as shops, restaurants and even clubs.

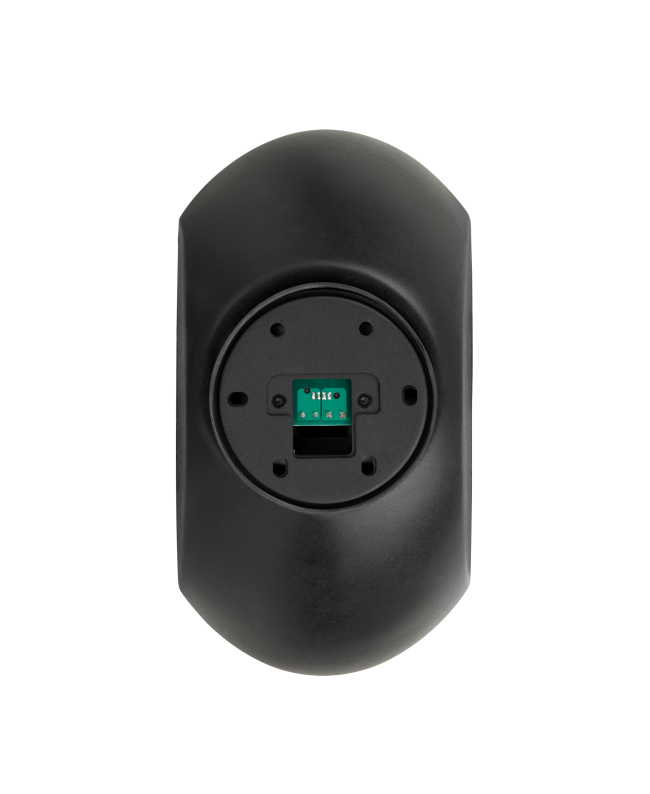

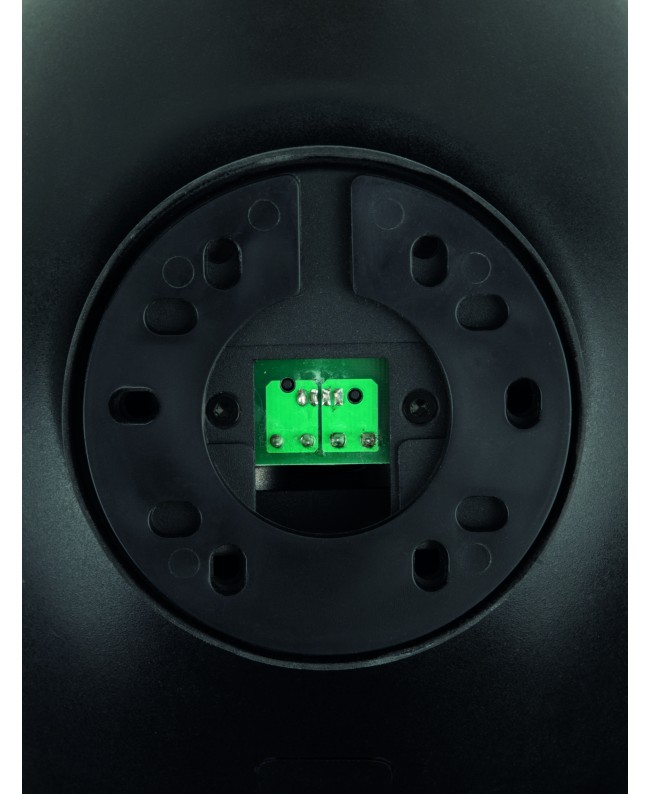

The WMS4T-B is equipped with a 2-way system and therefore has a clear full-range sound. With a maximum RMS power of 20 watts (80 W peak), it can produce an SPL of up to 98.5 dB at 1 metre. The volume can be adjusted to the volume of other components in the system due to the presence of multiple power taps on the transformer.

A sturdy ABS housing protects against the ingress of dust and splash water. This means you can even use the speakers in damp places and sheltered outdoor locations, for example on a porch.

  • 20 W RMS/80 W peak - 100 V - 2-way - ABS

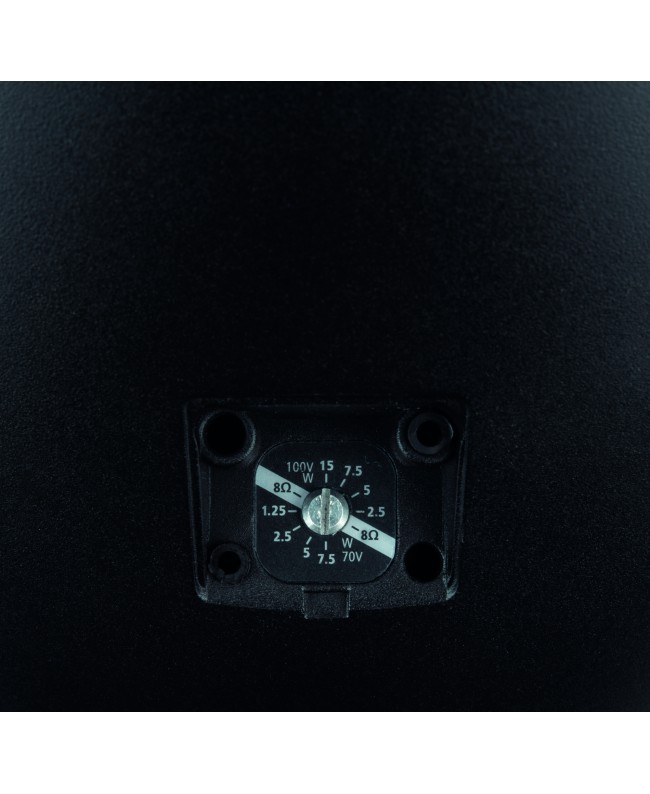

  • Four power taps (2.5, 5, 7.5 and 15 W) and 8 Ω
  • Easy installation
  • Horizontal and vertical positioning
  • Protected against dust ingress and downpour (IP54)
  • RMS Input Power: 20 W
  • Peak Input Power: 80 W
  • Transformer: 70+100 V
  • Line Transformer Taps: 2.5 / 5 / 7.5 / 15 W
  • Passive Input Connection: Terminal
  • Passive Output Connector: Terminal
  • Speaker System: 2-way
  • Speaker Sensitivity (1 W/1 m): 86.5 dB
  • Speaker Impedance: 8 Ω
  • Maximum SPL at 1 m: 98.5 dB
  • Frequency Response Minimum: 90 Hz
  • Frequency Response Maximum: 20000 Hz
  • Woofer Diameter: 4
  • Woofer Voice Coil Diameter: 1
  • Woofer Magnet Type: Ferrite
  • Compression Driver Voice Coil: 0.7
  • Compression Driver Magnet Type: Ferrite
  • Dispersion Angle (Horizontal): 60°
  • Dispersion Angle (Vertical): 30°
  • Speaker Grille Material: Aluminium
  • Height (mm): 260 mm
  • Width (mm): 144 mm
  • Depth (mm): 180 mm
  • Installation Depth (Excl. Connector): 180 mm
  • Weight: 1.9 kg
  • IP Rating: IP54
  • Housing: ABS
  • Material: ABS
  • Colour: Black
  • Finish: Painted
  • Minimum Ambient Temperature: -10 °C
  • Maximum Ambient Temperature: 45 °C

D3832

Data sheet

Woofer inch
4"
Miscellaneous
Suitable for outdoor use
Color
Black
