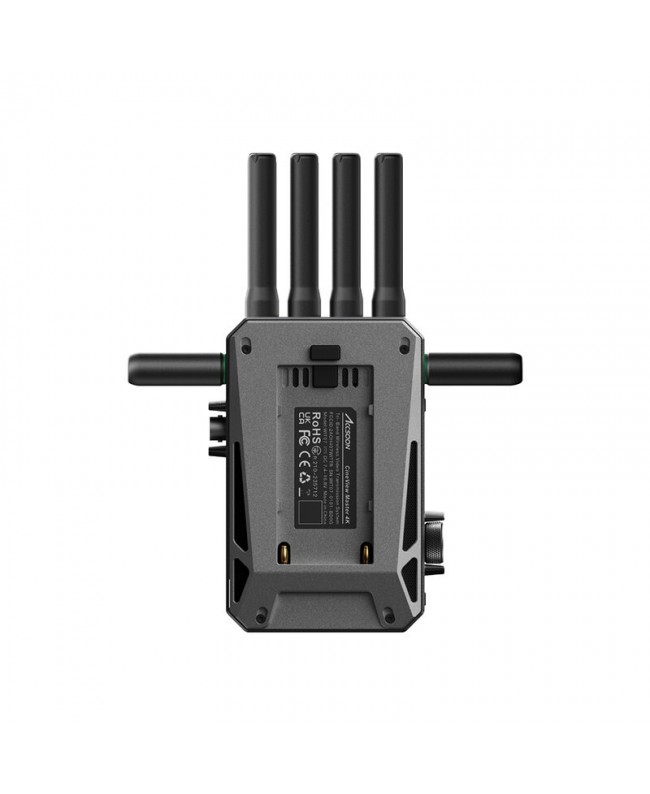

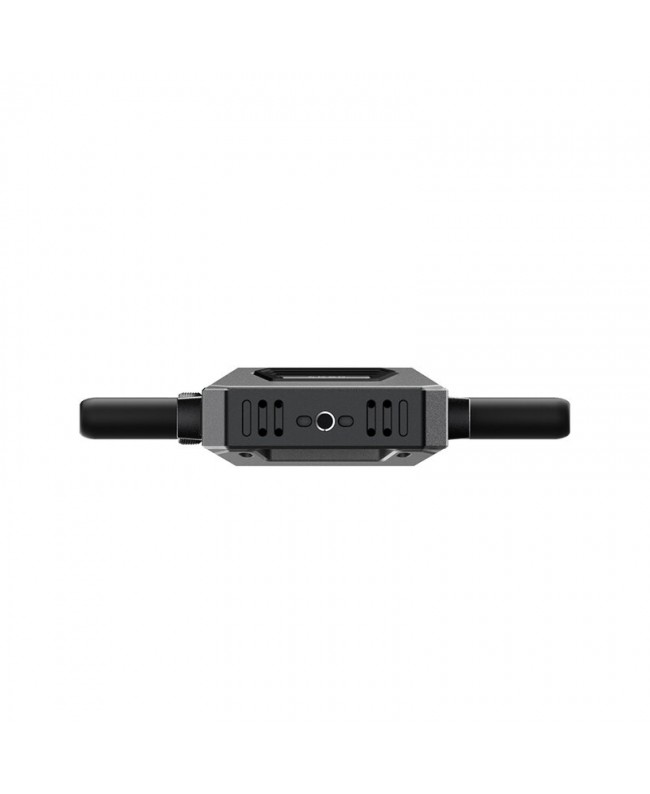

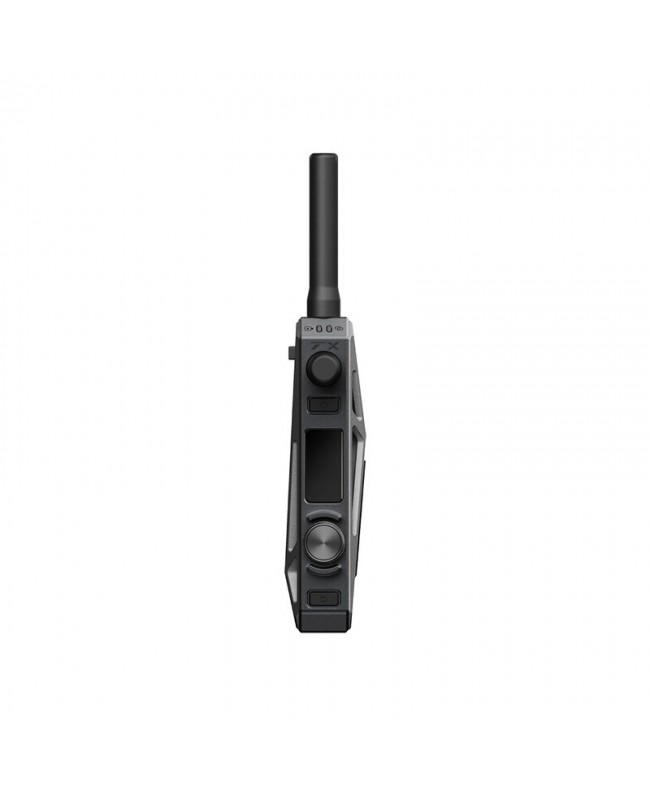

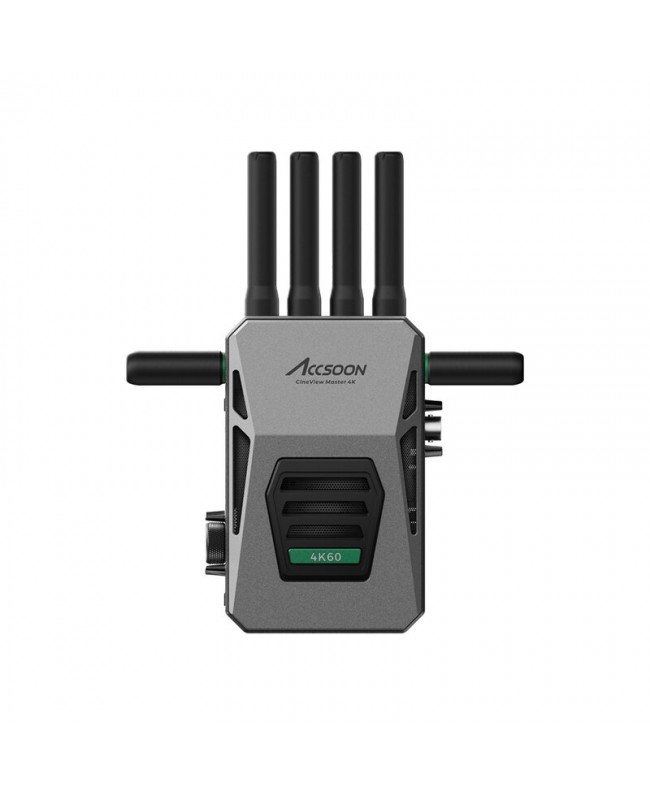

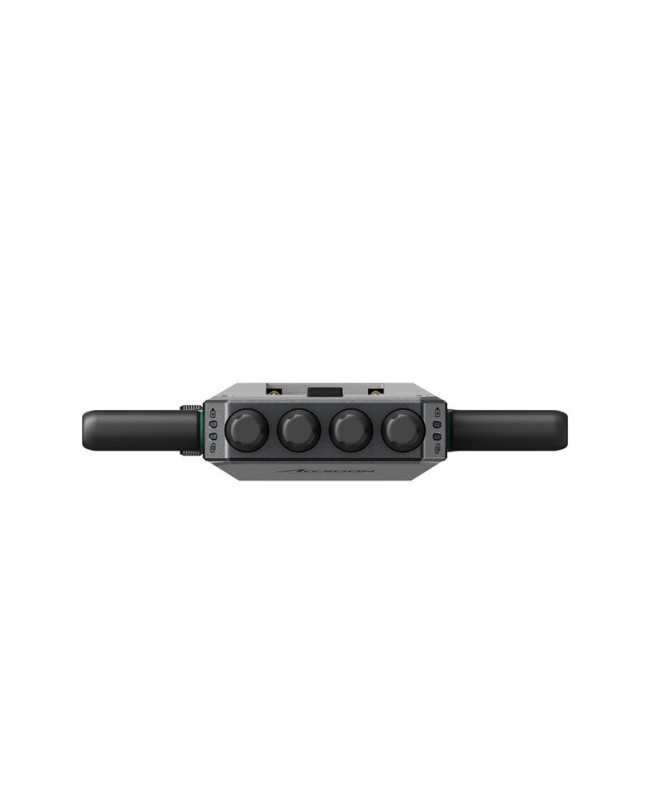

ACCSOON CineView Master 4K Transmitter

AV transmitter belonging to the new Cine. View Master 4K wireless transmission system, top of the range of the Accsoon line, capable of offering 4K video quality at 60 fps (using the HDMI input) and therefore ideal for monitoring, recording, live streaming and any other video production.

It uses a Tri-Band transmission technology at 2.4, 5 and 6 GHz to ensure a stable and robust connection with a latency of only 25 ms from input to output in SD (35 ms in 4K). Based on the proprietary RTMS 4.0 protocol developed by Accsoon, this technology allows for intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency and the ability to easily handle multiple connections. Accsoon has developed the proprietary RTMS 4.0 protocol to work with the new high-performance A/V processor with 8K capabilities. In combination, the protocol and the processor represent a remarkable 400% increase in processing capabilities.

For 6 GHz transmission, two additional antennas have been used, bringing the total number of antennas to six.

Cine. View Master 4K TX, thanks not only to the revolutionary Tri-band transmission technology but also to the innovative hardware design, is able to transmit video up to a distance of 2.5 km, making it suitable for professional cinema productions. Not only does it work over great distances, but it does with incredible stability!

In addition, it supports multiple streaming connections, allowing you to connect up to four wireless devices and one wired device at the same time.

The Cine. View Master 4K design features clean lines, a modern design, and is built to withstand intensive production use. It is also optimized for heat dissipation with the ability to reduce the fan speed or even turn it off for critical audio scenarios. Finally, it can be powered by NP-F batteries or 12 VDC connector.

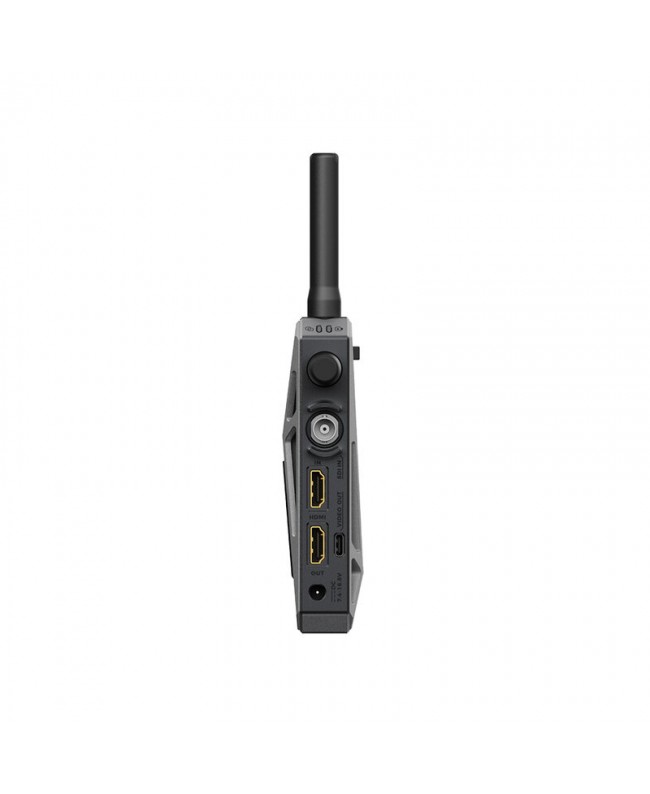

In terms of connections, it offers a 3G SDI input, HDMI 2.0 up to 4k 60 fps, an HDMI 2.0 pass through output and USB wired video to i. Phone / i. Pad (MFi certified).

N.B. Battery and power supply are not included.

• Finally, Accsoon has made a V-Lock adapter so that you can mount the transmitter on the back of virtually any camera.
• User benefits
• 4K 60 fps video from point to point (HDMI)
• 2.5 km line-of-sight (LOS) transmission range (without obstacles)
• Ultra-low latency
• Clean and interference-free signal transmission thanks to integrated Tri-Band technology
• Multiple streams for different needs
• Ruggedness for heavy-duty rental use
• No overheating thanks to the internal fan
• Plug and amp; Play
• Areas of use
• Film and TV production
• Live streaming
• On-set monitoring
