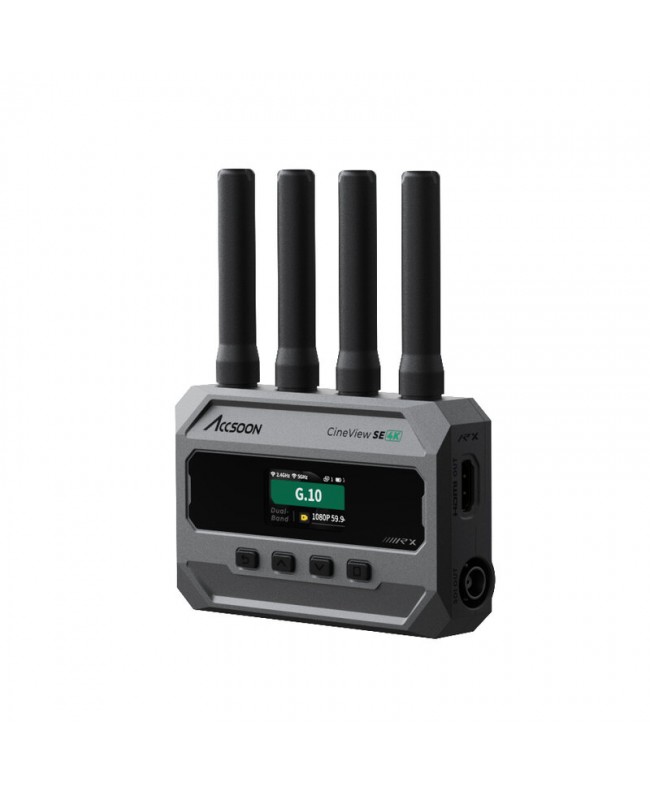

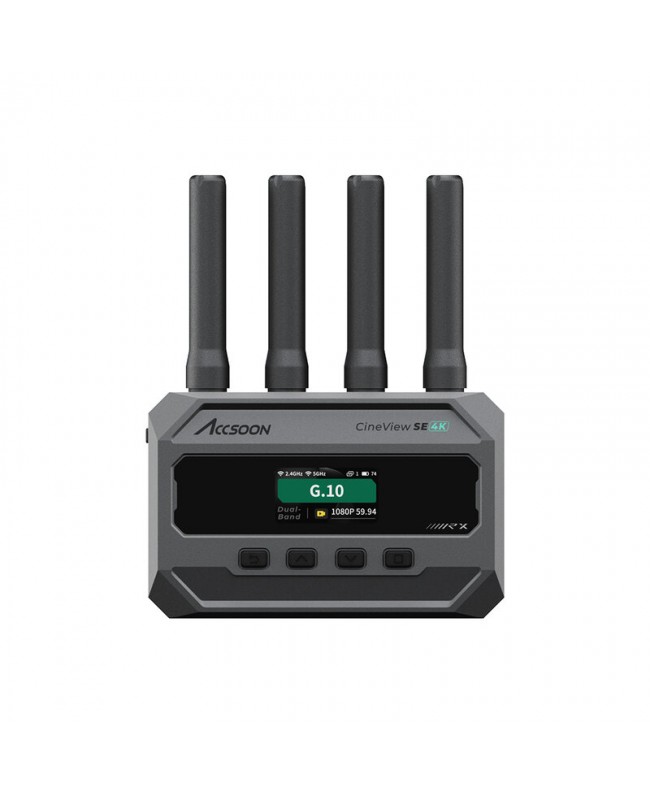

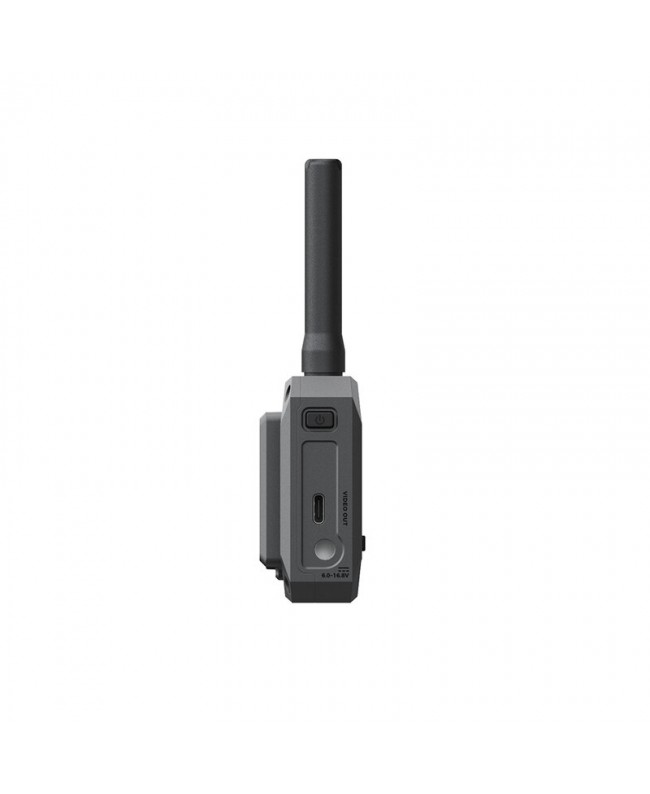

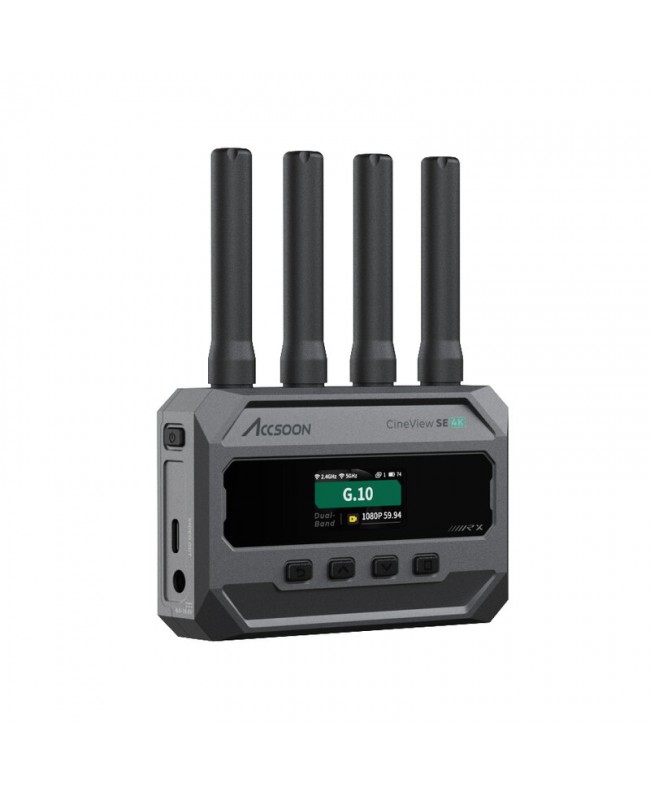

ACCSOON CineView SE 4K Receiver

The Cine. View SE 4K receiver is a cutting-edge device designed to deliver high-quality wireless video and audio reception in 4K 30 fps for crisp, smooth images. It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments, thanks to its four antennas.

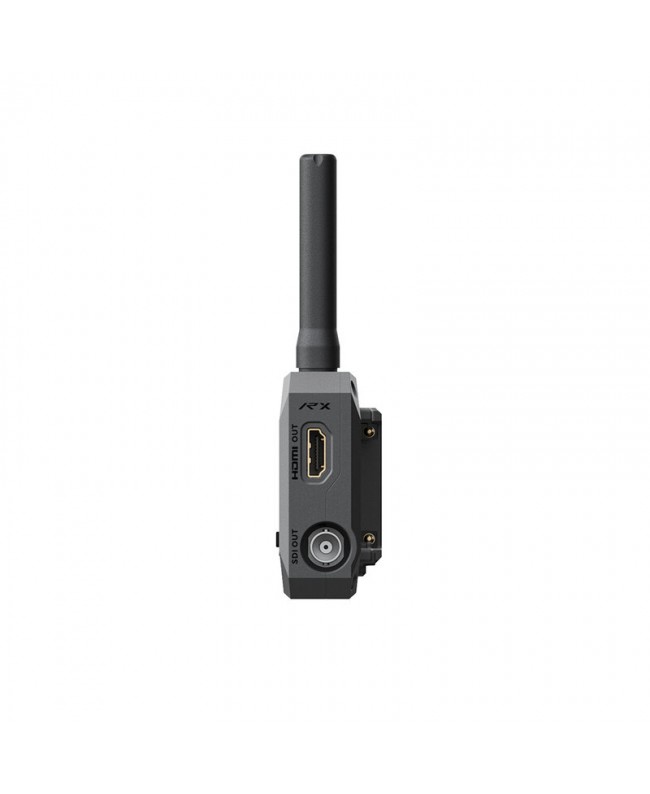

It outputs both HDMI (4K 30) and SDI (1080p 60).

The Cine. View SE 4K receiver wirelessly receives video and audio signals from supported transmitters and transmits them via HDMI, SDI or USB to monitors and mobile devices. Compatible transmitters include: Cine. View SE 4K, Cine. View Master 4K, Cine. View Master 4K Lite receiver, Cine. View M7 Pro (TX mode) and Cine. View M7H Pro (TX mode).

Cine. View SE 4K is compact and lightweight, weighing just 245 g without antennas, thanks to a solid, aerospace-grade aluminum body. It and #039;s designed for fanless operation for ultra-quiet operation, ideal for noise-sensitive recording environments. A convenient 1.05 and #34; color LCD screen facilitates device monitoring and configuration.

The addition of wired USB transmission on both the transmitter and receiver allows you to connect a mobile device for use as a professional monitor, significantly increasing the flexibility of on-site monitoring.

Regarding power supply, it supports several options, including NP-F batteries and DC power, offering great flexibility in terms of use in the field. Technical specifications include support for various video formats, both for SDI and HDMI outputs, and a typical power consumption of 4.4 W, making it energy efficient.

Compact size, the ability to operate over a wide temperature range (-10 to 40°C), and the availability of a professional monitoring app for i. OS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a high-performance and versatile device, ideal for professional video productions that require reliability and quality.

• User benefits
• End-to-end reception in 4K 30 fps
• 50 Ms latency (measured at 1080p 60 fps)
• 400 m range
• USB video output
• SDI input signal conversion on the transmitter to HDMI output signal on the receiver
• HDMI input signal conversion on the transmitter to SDI output signal on the receiver
• Simultaneous SDI and HDMI outputs
• High-performance AV processor
• Powered by NP-F batteries or DC input
• Areas of use
• Professional monitoring stations (director, DOP, focus puller) via SDI/HDMI monitor
• Video assist for production and clients
• Integration into broadcast control rooms, OB vans, and TV studios
• Signal distribution to multiple stations via multiple receivers
• Remote stations on complex sets (factory, large locations, multi-camera)
• Quiet setups thanks to the fanless unit
