ACCSOON CineView SE 4K Wireless VideoTransmission

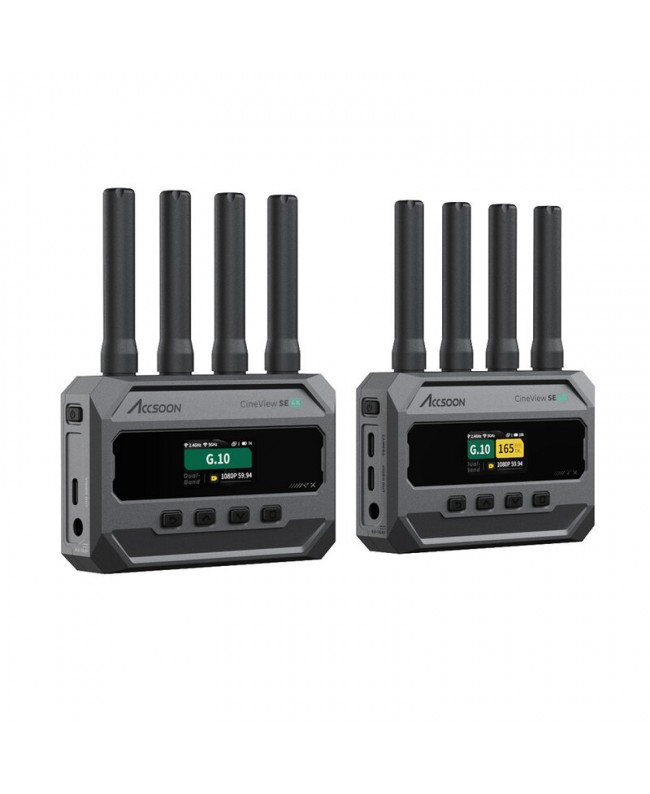

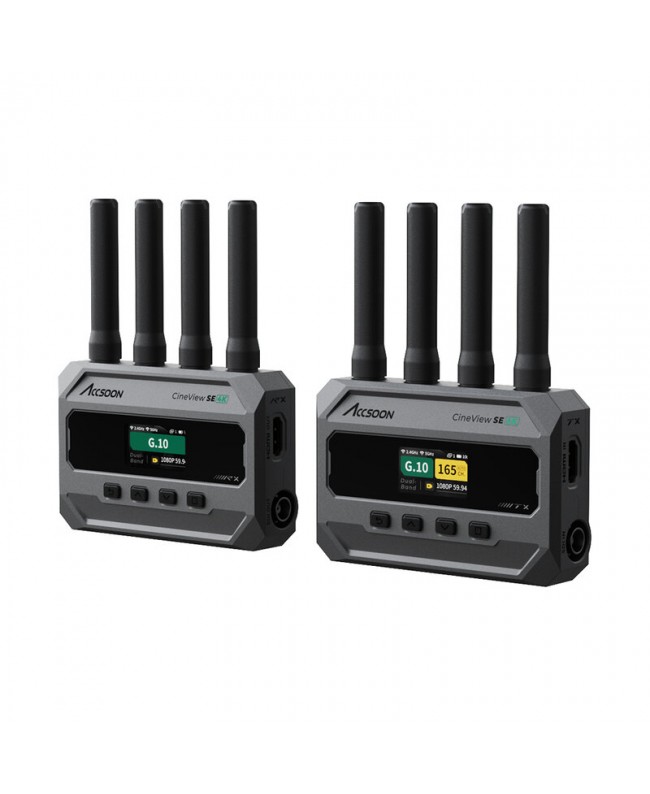

Wireless system consisting of a Cine. View SE 4K transmitter and receiver.

N.B. Batteries and power supplies are not included.

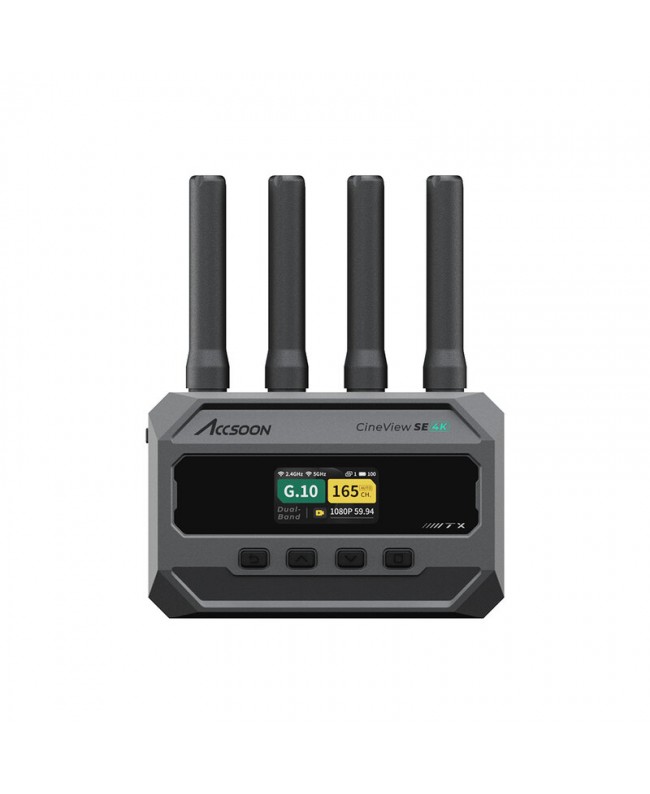

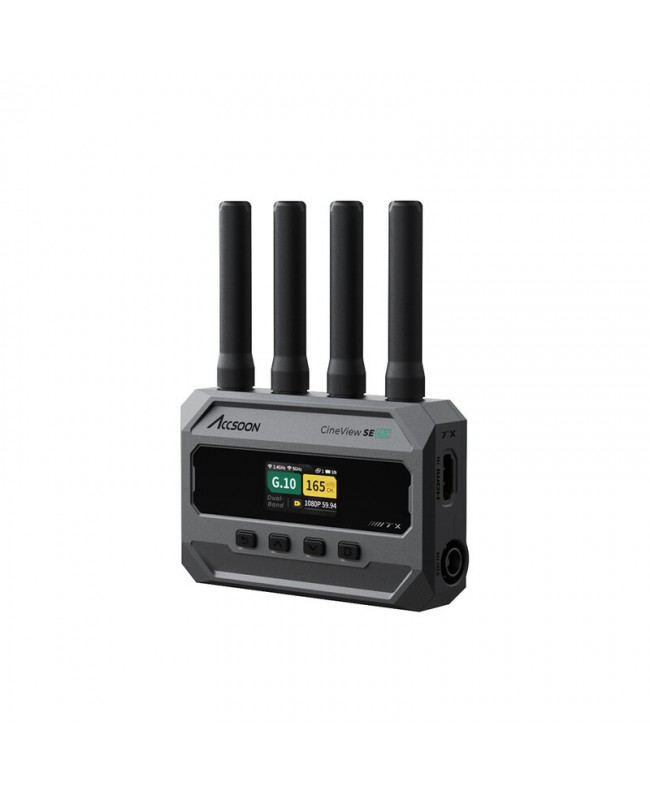

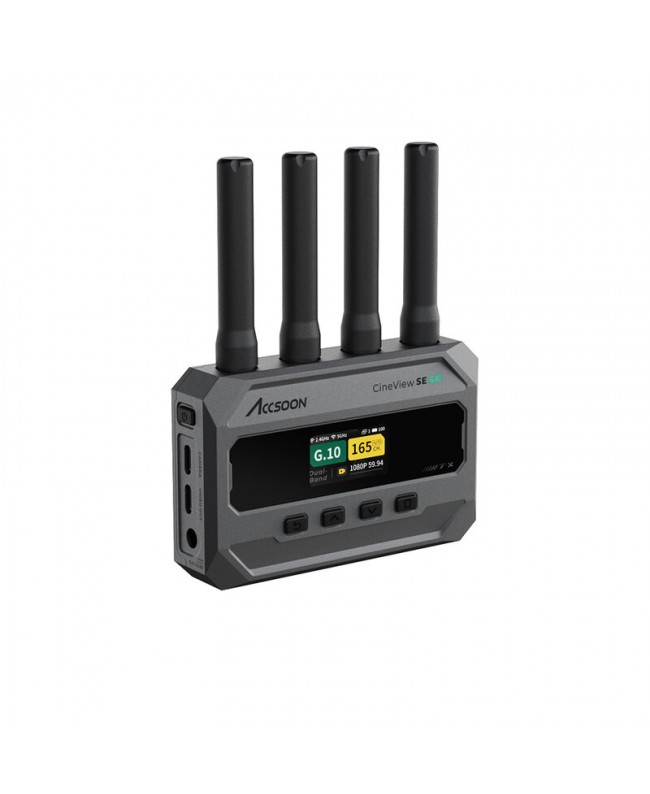

The Cine. View SE 4K transmitter is a cutting-edge device designed to deliver high-quality wireless video and audio transmission at 4K 30 fps for crisp, smooth images. It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments, thanks to its four antennas. This transmitter can cover considerable distances, up to 400 m (line of sight), while maintaining a latency of less than 50 ms in 1080p for (near) real-time transmission.

It features HDMI and SDI inputs and can transmit up to five devices simultaneously, including smartphones, i. OS, and Android tablets: a combination of a wired connection on the transmitter and four wireless connections, allowing for great operational flexibility.

Cine. View SE is compact and lightweight, weighing only 245 g without antennas, thanks to a solid, aerospace-grade aluminum enclosure. It is designed for fanless operation for ultra-quiet operation, ideal for noise-sensitive recording environments. A convenient 1.05 and #34; color LCD screen facilitates device monitoring and configuration.

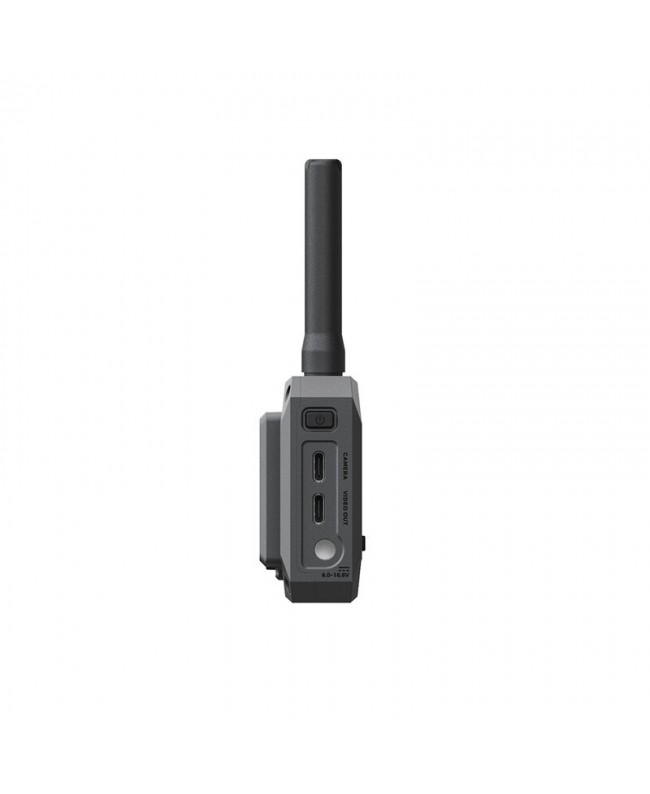

The addition of wired USB transmission, on both the transmitter and receiver, allows you to connect a mobile device for use as a professional monitor, significantly increasing the flexibility of on-site monitoring.

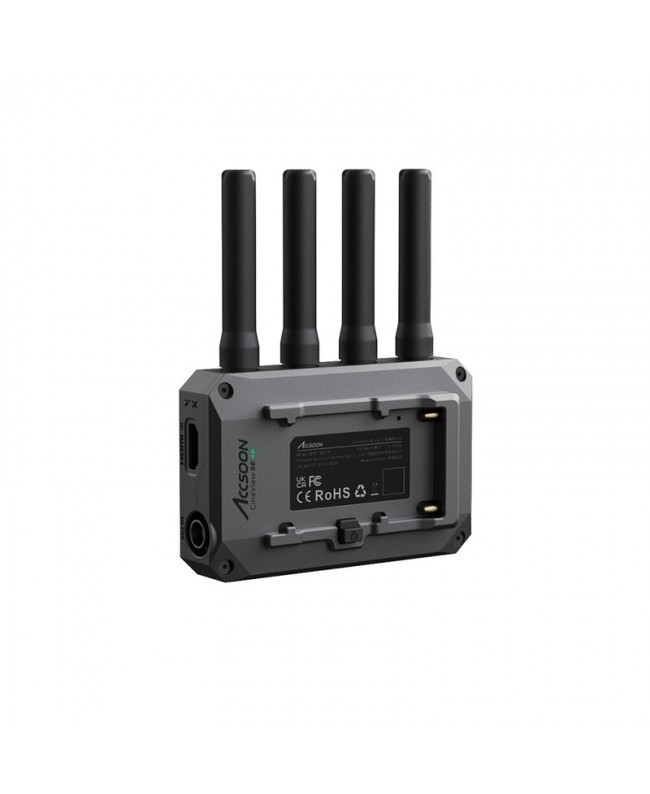

Regarding power supply, it supports several options, including NP-F batteries and DC power, offering great flexibility in terms of use in the field. Technical specifications include support for various video formats, for both SDI and HDMI inputs, and a typical power consumption of 4.4 W, making it energy efficient.

Compact size, the ability to operate over a wide temperature range (-10 to 40°C), and the availability of a professional monitoring app for i. OS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a high-performance and versatile device, ideal for professional video productions that require reliability and quality.

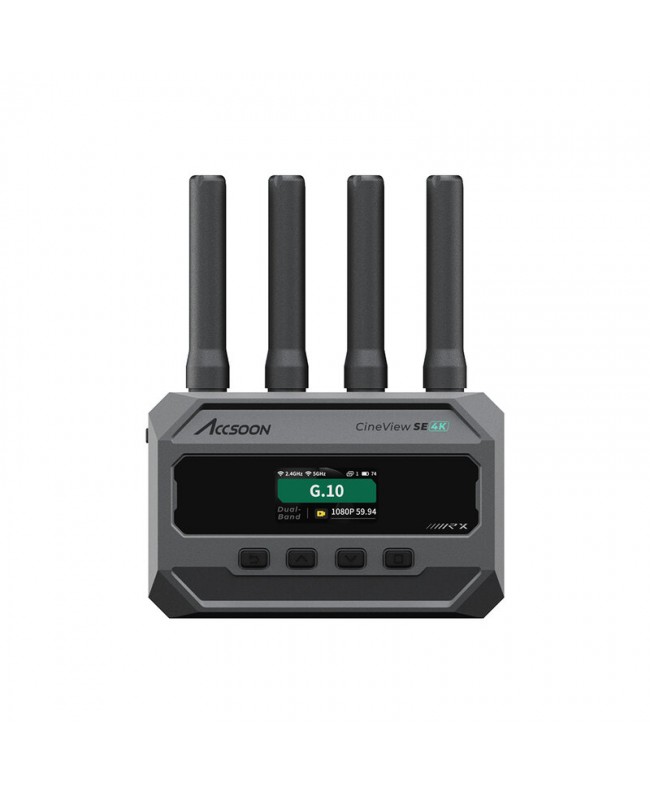

The Cine. View SE 4K receiver is a cutting-edge device designed to deliver high-quality wireless video and audio reception in 4K 30 fps for crisp, smooth images. It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments, thanks to its four antennas.

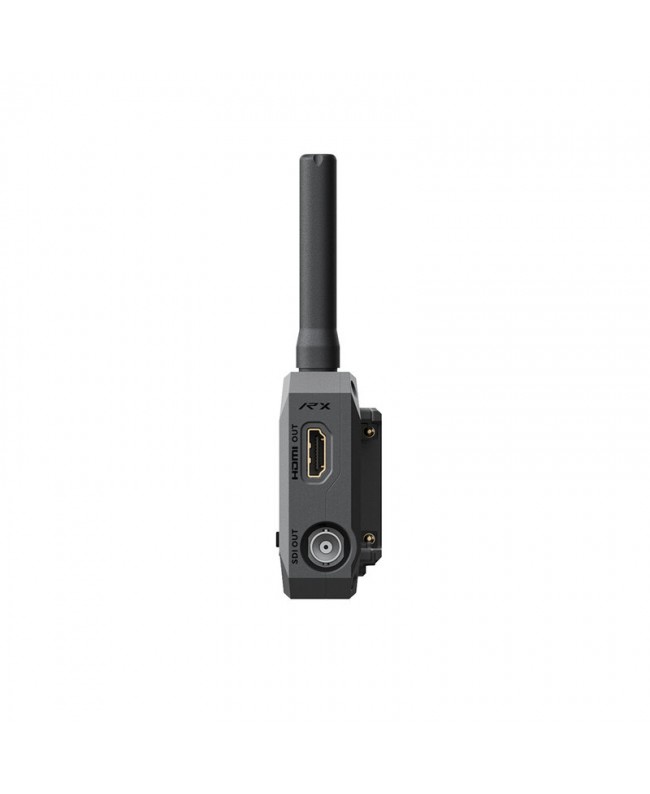

It outputs both HDMI (4K 30) and SDI (1080p 60).

The Cine. View SE 4K receiver wirelessly receives video and audio signals from supported transmitters and transmits them via HDMI, SDI or USB to monitors and mobile devices. Compatible transmitters include: Cine. View SE 4K, Cine. View Master 4K, Cine. View Master 4K Lite receiver, Cine. View M7 Pro (TX mode) and Cine. View M7H Pro (TX mode).

Cine. View SE 4K is compact and lightweight, weighing just 245 g without antennas, thanks to a solid, aerospace-grade aluminum body. It and #039;s designed for fanless operation for ultra-quiet operation, ideal for noise-sensitive recording environments. A convenient 1.05 and #34; color LCD screen facilitates device monitoring and configuration.

The addition of wired USB transmission on both the transmitter and receiver allows you to connect a mobile device for use as a professional monitor, significantly increasing the flexibility of on-site monitoring.

Regarding power supply, it supports several options, including NP-F batteries and DC power, offering great flexibility in terms of use in the field. Technical specifications include support for various video formats, both for SDI and HDMI outputs, and a typical power consumption of 4.4 W, making it energy efficient.

Compact size, the ability to operate over a wide temperature range (-10 to 40°C), and the availability of a professional monitoring app for i. OS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a high-performance and versatile device, ideal for professional video productions that require reliability and quality.

• Transmitter
• These are typical usage scenarios for wireless transmission:
• 4 Cine. View SE 4K Receivers (or other compatible models)
• 2 Cine. View Receivers, 1 Mac. Book, 1 Cine. View M7 Pro RX
• 2 Cine. View Receivers, 1 Cine. View M7 Pro RX, Android/i. OS App
• 1 Cine. View Receiver, 1 Cine. View Master 4K RX, 2 Cine. View M7 Pro RX
• 4 Android/i. OS Apps
• Receiver
