ACCSOON CineView SE 4K Transmitter


€376.00
€281.00 -26%
Tax included
Lowest price within the last 30 days: €281.00

4K dual-band wireless AV transmitter for reliable on-set monitoring, 50 ms latency, 400 m range, SDI / HDMI inputs, USB video output, monitoring on the Accsoon SEE App


Out of Stock

Free shipping


wishlist

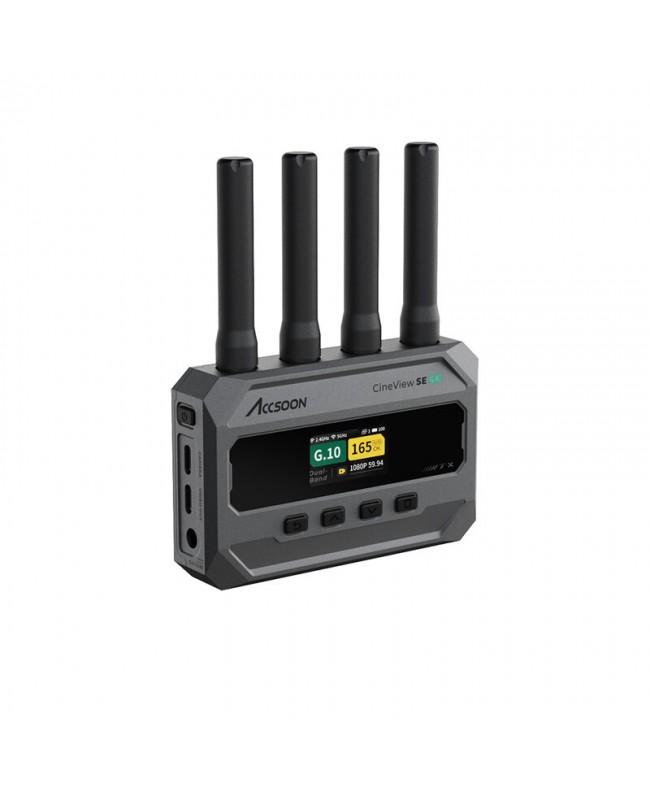

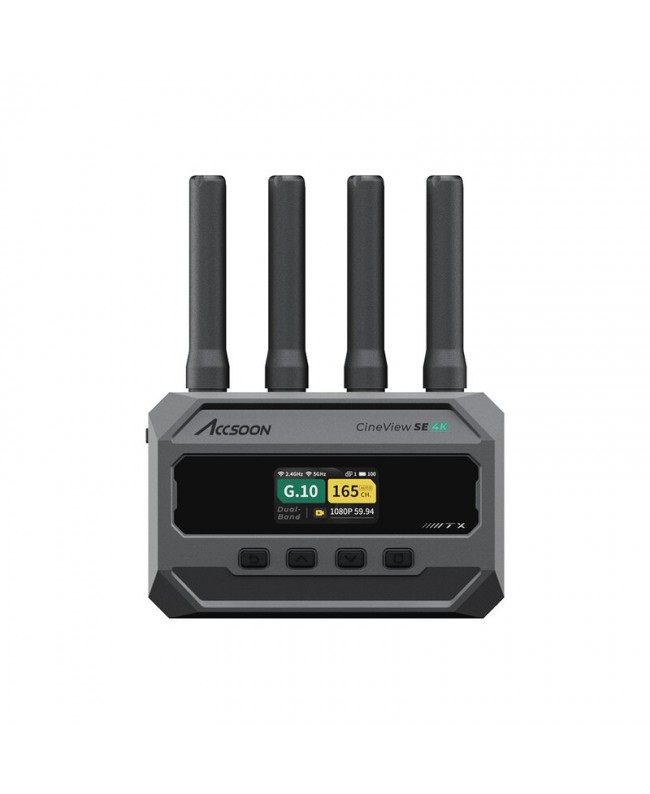

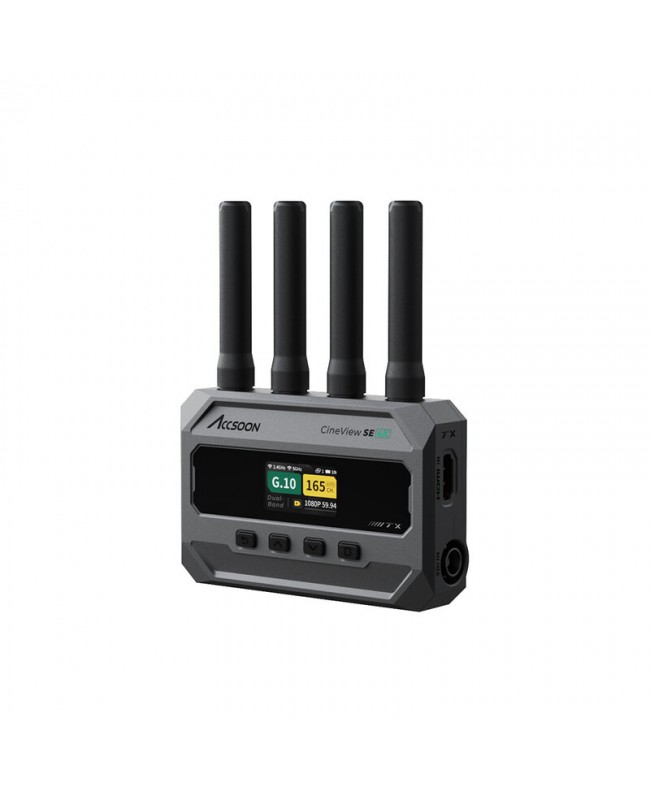

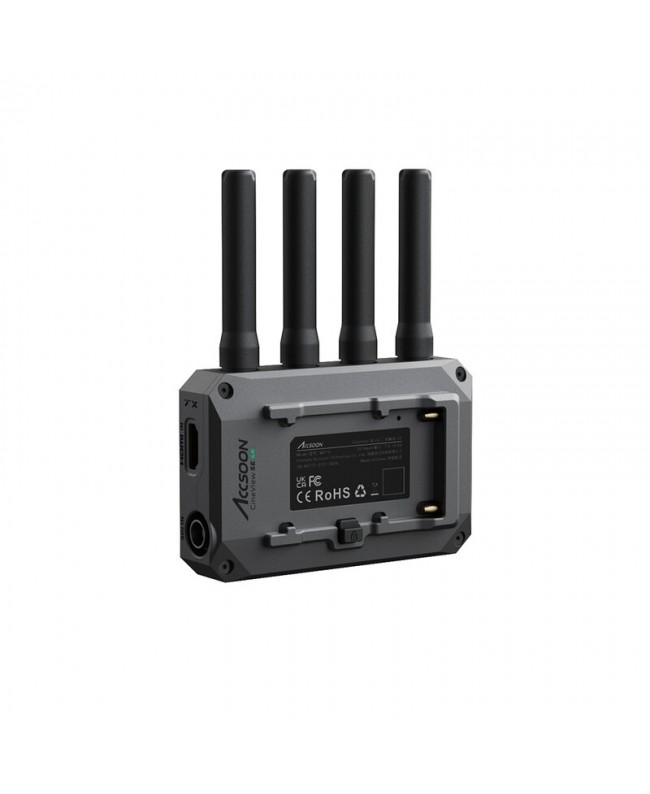

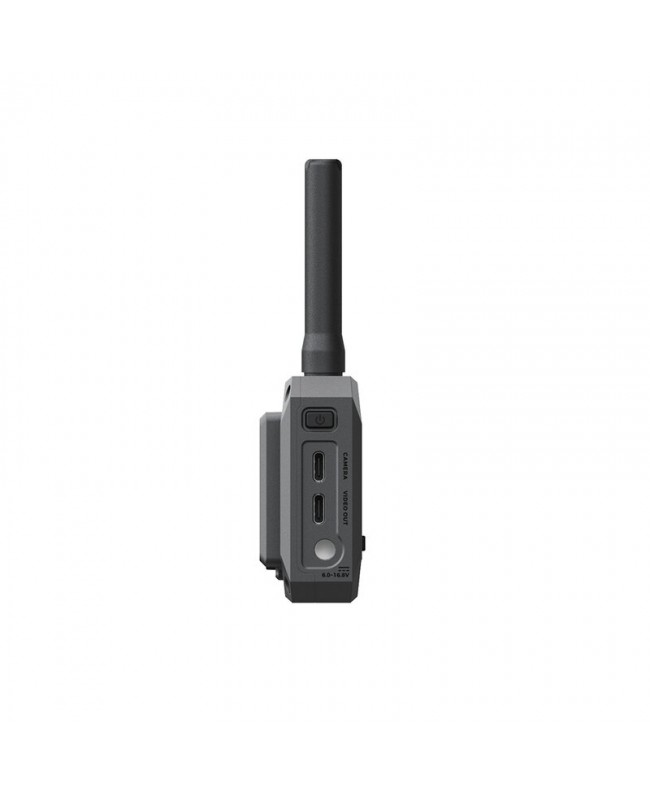

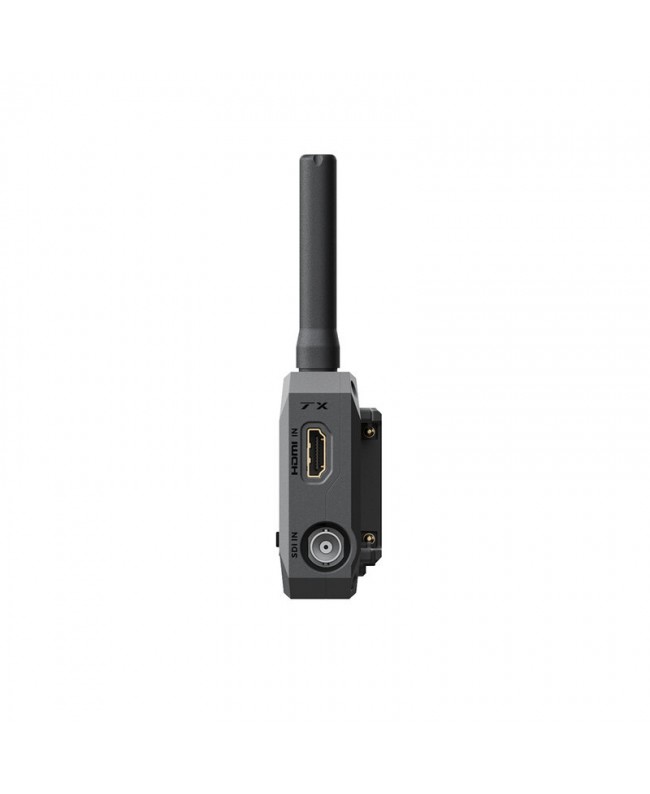

ACCSOON CineView SE 4K Transmitter



The Cine. View SE 4K transmitter is a cutting-edge device designed to deliver high-quality wireless video and audio transmission at 4K 30 fps for crisp, smooth images. It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments, thanks to its four antennas. This transmitter can cover considerable distances, up to 400 m (line of sight), while maintaining a latency of less than 50 ms in 1080p for (near) real-time transmission.

It features HDMI and SDI inputs and can transmit up to five devices simultaneously, including smartphones, i. OS, and Android tablets: a combination of a wired connection on the transmitter and four wireless connections, allowing for great operational flexibility.

Cine. View SE is compact and lightweight, weighing only 245 g without antennas, thanks to a solid, aerospace-grade aluminum enclosure. It is designed for fanless operation for ultra-quiet operation, ideal for noise-sensitive recording environments. A convenient 1.05 and #34; color LCD screen facilitates device monitoring and configuration.

The addition of wired USB transmission, on both the transmitter and receiver, allows you to connect a mobile device for use as a professional monitor, significantly increasing the flexibility of on-site monitoring.

Regarding power supply, it supports several options, including NP-F batteries and DC power, offering great flexibility in terms of use in the field. Technical specifications include support for various video formats, for both SDI and HDMI inputs, and a typical power consumption of 4.4 W, making it energy efficient.

Compact size, the ability to operate over a wide temperature range (-10 to 40°C), and the availability of a professional monitoring app for i. OS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a high-performance and versatile device, ideal for professional video productions that require reliability and quality.

  • These are typical usage scenarios for wireless transmission:
  • 4 Cine. View SE 4K Receivers (or other compatible models)
  • 2 Cine. View Receivers, 1 Mac. Book, 1 Cine. View M7 Pro RX
  • 2 Cine. View Receivers, 1 Cine. View M7 Pro RX, Android/i. OS App
  • 1 Cine. View Receiver, 1 Cine. View Master 4K RX, 2 Cine. View M7 Pro RX
  • 4 Android/i. OS Apps
  • User benefits
  • End-to-end transmission in 4K 30 fps
  • 50 Ms latency (measured at 1080p 60 fps)
  • Dual-band wireless transmission (2.4 and #43; 5 GHz) and #43; DFS
  • 400 m range
  • USB video output
  • SDI input signal conversion on the transmitter to HDMI output signal on the receiver
  • HDMI input signal conversion on the transmitter to SDI output signal on the receiver
  • Monitoring of up to 5 devices
  • Monitoring on the Accsoon SEE App
  • High-performance AV processor
  • Powered by NP-F batteries or DC input
  • Areas of use
  • Wireless video monitoring on film, TV, and commercial sets
  • Long-distance video transmission for directors, DOPs, and camera departments
  • Video assist for directors, production, and clients
  • Frame control via smartphone, tablet, or computer
  • Shooting with gimbals, steadicams, and compact rigs
  • Multi-operator sets with monitoring of up to 4 devices
  • Technical characteristics
  • Protocol: proprietary RTMS4.0 protocol developed by Accsoon
  • Video input: HDMI, 3G-SDI
  • Video output: USB video out
  • Camera control: USB-C
  • SDI input formats: 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps Level A/B

HDMI input formats

  • UHD 4K at 23.98 / 24 / 25 / 29.97 / 30p
  • 1080P at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
  • Audio: 44.1 kHz / 48 kHz 16 / 24 bit

Latency

  • 50 Ms (1080p)
  • 100 Ms (4K) (camera latency not included)
  • DC port: 5.5 x 2.1 mm, center positive
  • DC voltage: 7.4 - 16.8 V (power supply not included)
  • Battery: compatible with NP-F550, NP-F750, NP-F970 battery (not included)
  • Transmission range: 400 m (no obstacles, no interference)
  • Power consumption: 4.4 W average (without powering other devices)
  • Operating environment temperature: -10 to 40 ℃
  • Dimensions: 110 x 74 x 32 mm (without antennas)
  • Weight: 245 g (without antennas)

ACS-WIT10-TX
