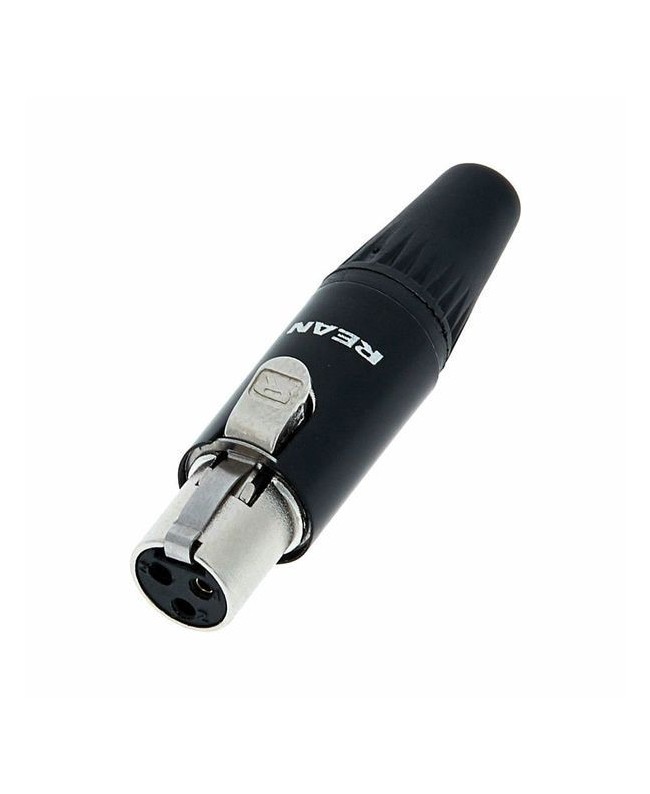

REAN RT3FC-B XLR Cable Connectors
  • -10%

REAN RT3FC-B

€2.50
€2.30 -10%
Tax included
Lowest price within the last 30 days: €2.30

3 pole female TINY xlr cable connector

Out of Stock

Compare

wishlist

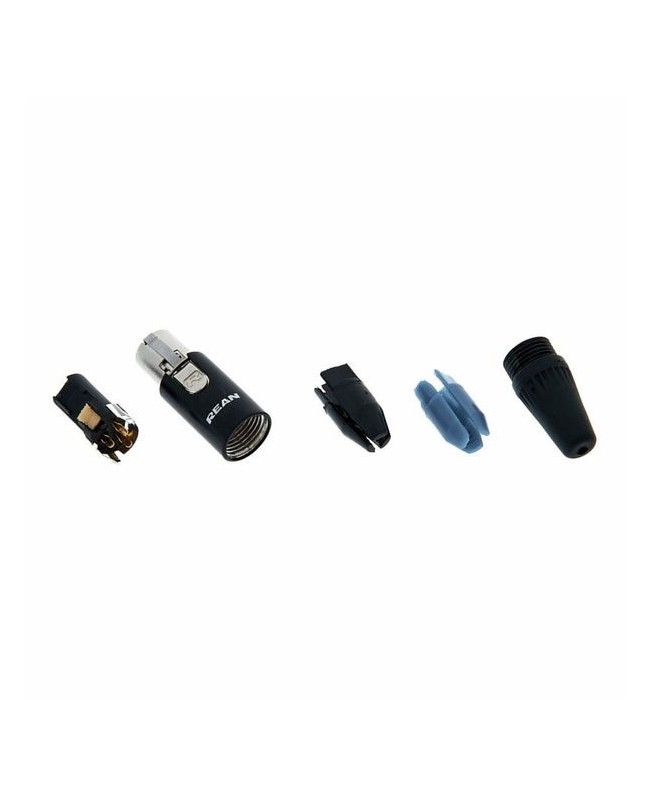

REAN RT3FC-B



  • Mini XLR connector available in 3-pin and 4-pin versions, flying female and panel-mount male
  • Easy to assemble
  • Sturdy metal body
  • Gold-plated contacts
  • Available in water-resistant version

Technical Information

Product

  • Title RT3FC-B
  • Connection Type XLR

Electrical

  • Contact Resistance ≤10 mΩ
  • Insulation Resistance >1 GΩ
  • Dielectric Strength >500 V rms
  • Rated current per contact ＜5 A

Mechanical

  • Cable O.D. Range 2.0-4.5mm
  • Lifetime >1000 Mating Cycles
  • Wiresize 0.22 mm²
  • Wiresize 24 AWG

Material

  • Ground Contact Steel
  • Rubber Spring Rubber
  • Latch Zinc
  • Chuck POM
  • Boot PC/ABS+TPU
  • Housing Zinc
  • Plastic housing PA6+30%GF
  • Jack Bronze
  • Ground Contact Bronze
  • Tube Aluminum
  • Latch Nickel Plating
  • Housing Nickel Plating
  • Jack Gold Plating
  • Ground Contact Tin
  • Tube Black Plating

NKRT3FCB
