REAN RT3MC-B XLR Cable Connectors

REAN RT3MC-B

€2.50
Tax included

3 pole male TINY xlr cable connector

Out of Stock

Compare

wishlist

REAN RT3MC-B

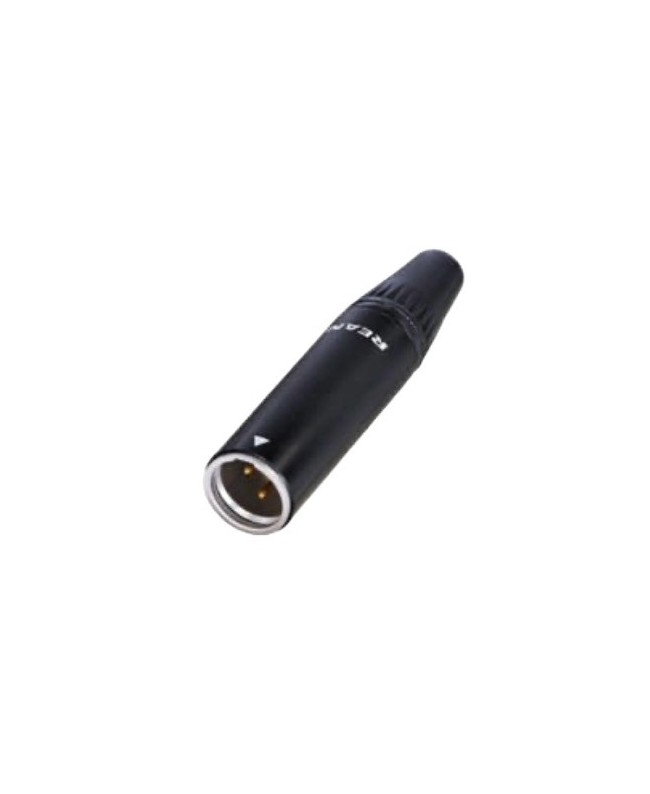

Mini XLR 3-pin male, black metal shell, gold contacts

Technical information

Product

  • Title RT3MC-B
  • Connection Type XLR

Electrical

  • Contact Resistance <10 mΩ
  • Insulation Resistance >1 GΩ
  • Dielectric strength. >500 V rms
  • Rated current per contact ＜5 A

Mechanical

  • Cable O.D. range 2.0-4.5 mm
  • Lifetime >1000 Mating Cycles
  • Wiresize 0.22 mm²
  • Wiresize 24 AWG

Material

  • Housing Zinc
  • Tube Aluminum
  • Pin Brass
  • Plastic Body PA6+30%GF
  • Ground Contact Bronze
  • Chuck POM
  • Boot PC/ABS+TPU
  • Housing Nickel Plating
  • Tube Black Plating
  • Pin Gold Plating
  • Ground Contact Tin

NKRT4FCB
