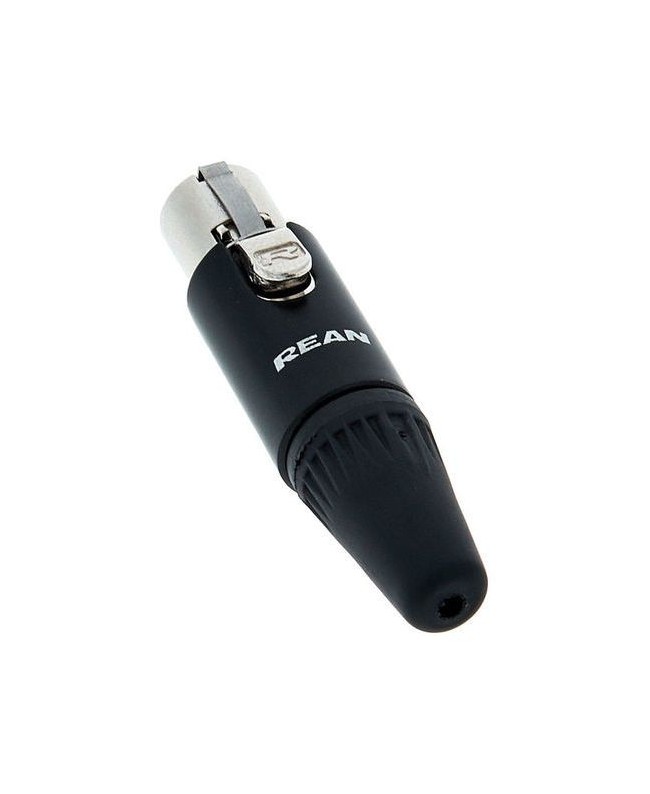

REAN RT4MC-B

Technical information

Product

• Title RT4MC-B
• Connection Type XLR

Electrical

• Contact Resistance <10 mΩ
• Insulation Resistance >1 GΩ
• Dielectric strength >500 V rms
• Rated current per contact＜5 A

Mechanical

• Cable O.D. range 2.0-4.5 mm
• Lifetime >1000 Mating Cycles
• Wiresize 0.22 mm²
• Wiresize 24 AWG

Material

• Housing Zinc
• Tube Aluminum
• Pin Brass
• Plastic Body PA6+30%GF
• Ground Contact Bronze
• Chuck POM
• Boot PC/ABS+TPU
• Housing Nickel Plating
• Tube Black Plating
• Pin Gold Plating
• Ground Contact Tin
