NEUTRIK XLR 3P Connector male TOP Gold contacts - stainless steel housing XLR Cable Connectors

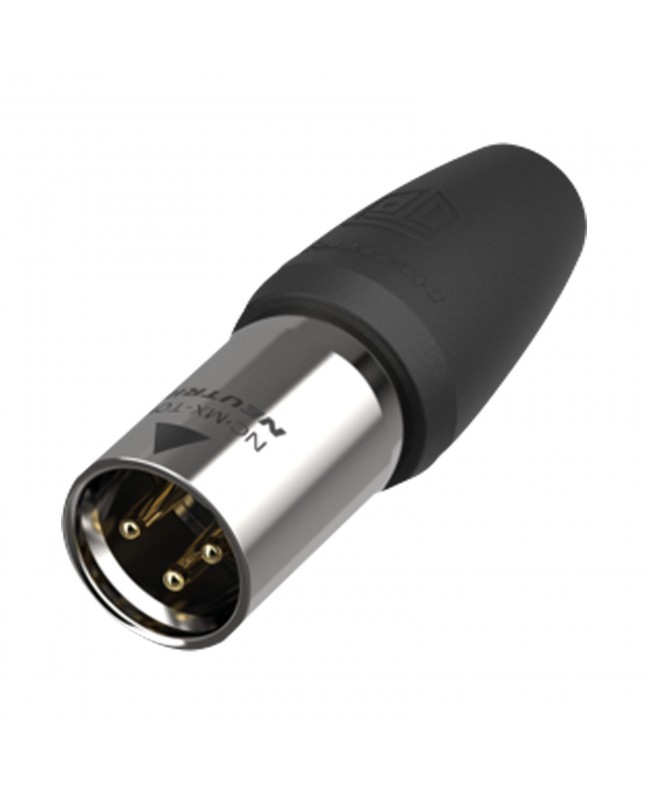

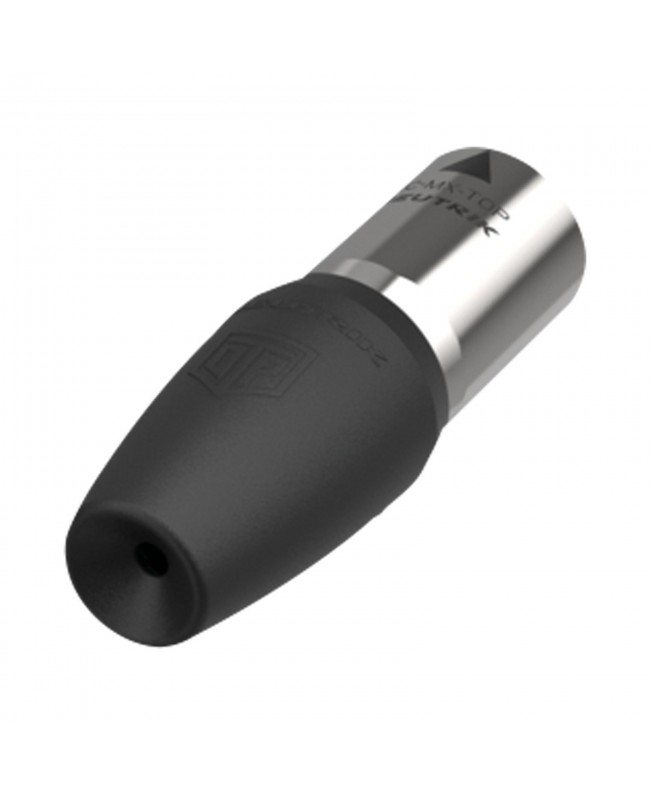

NEUTRIK XLR 3P Connector male TOP Gold contacts - stainless steel housing


€9.50
Tax included

Gold contacts - stainless steel housing


Out of Stock



wishlist

NEUTRIK XLR 3P Connector male TOP Gold contacts - stainless steel housing



New line of True Outdoor Protection (TOP) connectors for demanding outdoor applications. This new range includes the popular powerCON TRUE1, etherCON and XLR series. These rugged, sealed connectors offer not only IP protection but also UV resistance to UL50E.

  • Heavy duty sealed XLR connector for harsh and demanding environments
  • Outdoor protection according to IP65 and UL50E enclosure type 3
  • Maintains seal in mated and un-mated condition
  • Uses high impact UV-resistant materials
  • Brand Connector 1: Neutrik
  • Pins: 3
  • PCB Mount: No
  • Maximum Wire Size: 1.5 mm²
  • Maximum Wire Size AWG: 16 AWG
  • IP Rating: IP65
  • Housing: Metal
  • Colour: Silver
  • Bushing Colour: Black
  • Locking Device: Latch
  • Contact Type: Gold plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

NC3MX1TOP

Data sheet

Miscellaneous
Suitable for outdoor use
Color
Silver

Specific References
