NEUTRIK NC3FAAH1 XLR Chassis Connectors
  • -40%

NEUTRIK NC3FAAH1


€2.40
€1.40 -40%
Tax included
Lowest price within the last 30 days: €1.40

NC3FAAH1


Qty

In Stock

Delivery

Do You want Your order by Friday, 17/07/2026? Order within 15 hours and 46 minutes



wishlist

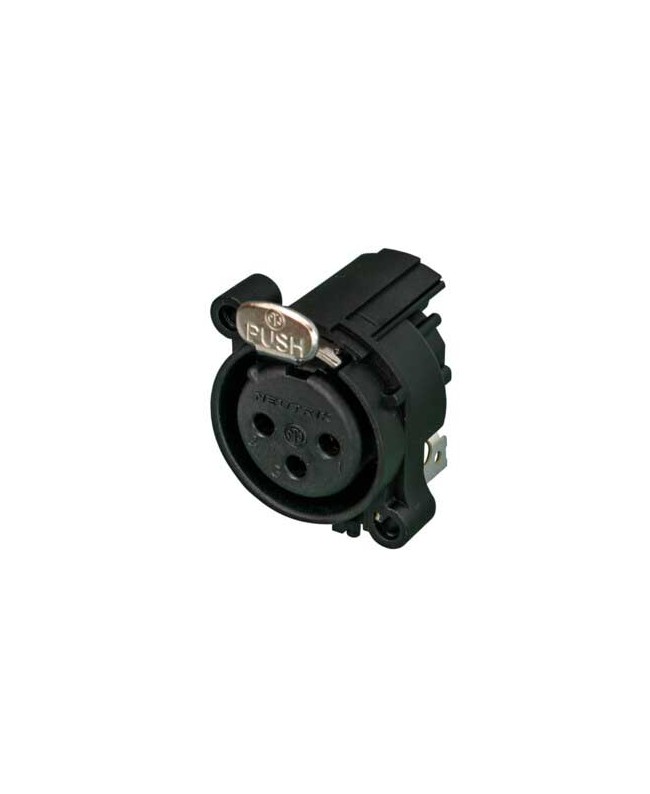

NEUTRIK NC3FAAH1



3-pin female XLR connector. AA series. Color: black, gold-plated contacts. Horizontal mounting on board. Round body made of low-cost plastic. Ground: Pin 1 connected directly to front panel and connector housing, no separate ground contact. Tulip contact design with high contact pressure for maximum durability. Front panel cutout and PCB design 100% compatible with A-series. Mounted safety latch. Materials: polyamide housing. Environmental specifications: flammability UL 94 HB, standard IEC 61076-2-103, protection IP 40, temperature range -30 °C to +80 °C.


697167
