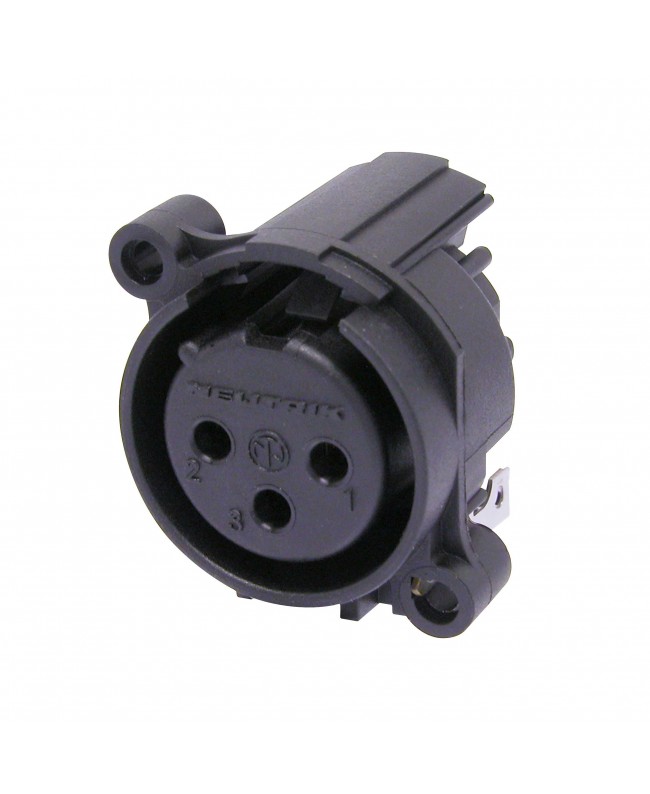

NEUTRIK NC3FAAH1-0

3-pin female XLR connector. AA series. Color: black, gold-plated contacts. Horizontal mounting on board. Round body made of low-cost plastic. Ground: Pin 1 connected directly to front panel and connector housing, no separate ground contact. Tulip contact design with high contact pressure for maximum durability. Front panel cutout and PCB design 100% compatible with the A-series. Integrates a retention spring instead of a latch. Materials: polyamide housing. Environmental specifications: flammability UL 94 HB, standard IEC 61076-2-103, protection IP 40, temperature range -30 °C to +80 °C.
