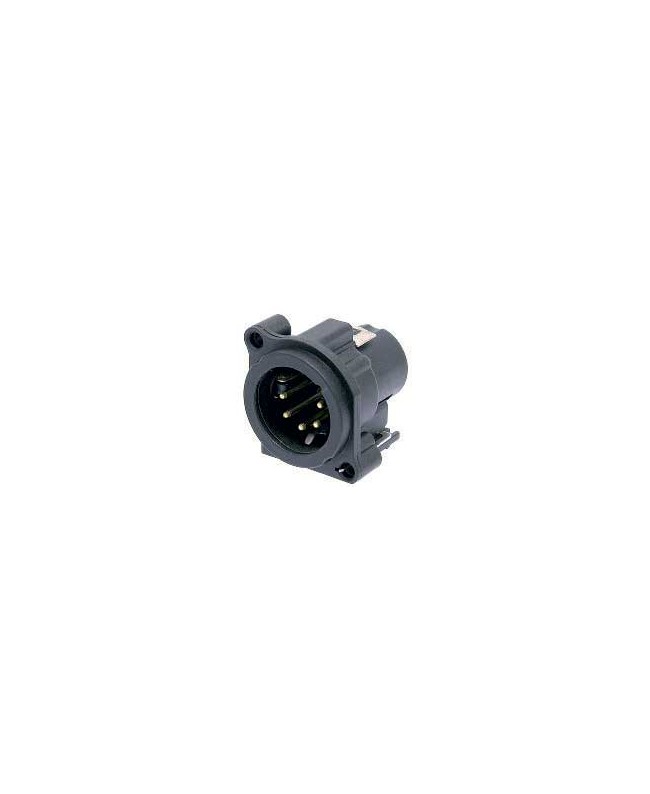

NEUTRIK NC5MAV-SW

5-pin female XLR connector, contact switching, grounding: separate ground contact for connector housing and front panel, vertical PCB mounting, color coding capability.Switch contacts are activated via the mating connector, providing the ability to indicate, monitor, and control the mated connection. The switch provides one normally open and one normally closed contact.The XLR panel connector for PCB mounting with round body is state of the art. These connectors have the smallest size and highest packing density (23 mm center to center). Newly developed fork contacts with hard gold plating and polished contact areas.
