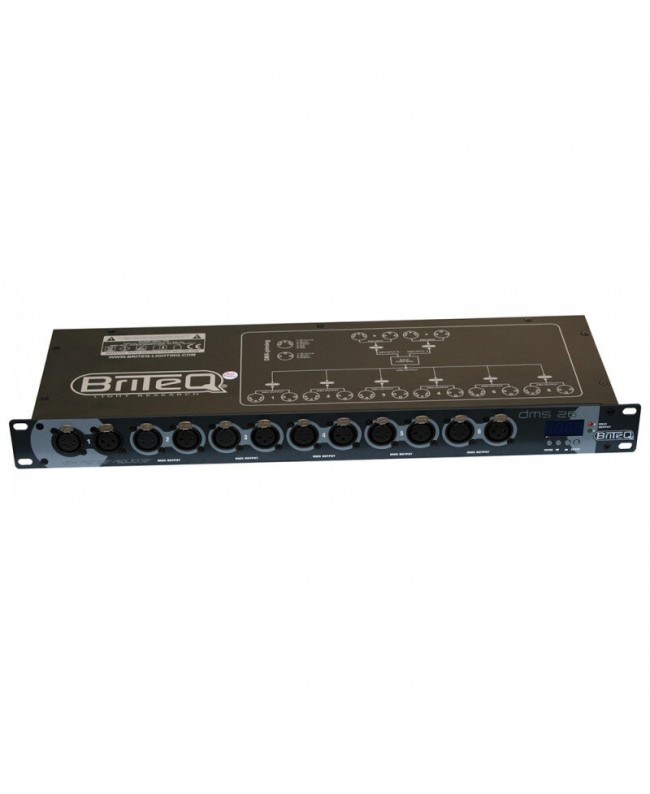

Briteq DMS-26

Merger, Splitter, Booster: the perfect all-in-one solution for professional DMX cabling. 2 DMX inputs and #43; 6 DMX outputs, each equipped with 3- and 5-pin XLR connectors with 100% electrical isolation.

The Booster function analyzes the incoming DMX signal and amplifies it.

The Merger function combines two DMX signals in different ways: HTP with the highest value of two identical channels takes priority; Merger when two different DMX signals are combined, choosing the start address of the second controller.

The Backup function ensures that if the DMX signal on input A fails, the DMX signal on input B immediately takes over.

The Splitter function distributes the DMX signals from the inputs to the 6 outputs.

The timing of the DMX outputs can be adjusted from 23 ms to 45 ms. If both DMX inputs fail, you can set: Null for no DMX signal on the outputs, Hold to maintain the last DMX values on the outputs, or Clear to reset the DMX values on all outputs to zero.

• Easy configuration via 4-digit LED display.
