3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
Microphone input 3 with adjustable priority circuit
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-digit LED level meter
Master control for the output signal
(19) 48.3 cm rack installation 2 U
The device is cooled by cooling fan
Control via IR remote control
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Scope of delivery
1 x amplifier
1 x user manual

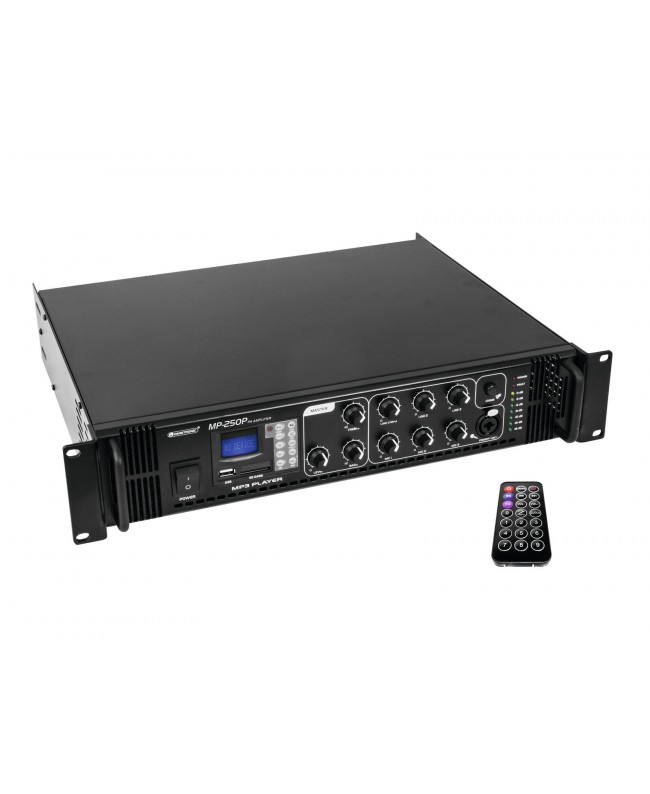

1 x remote control
1 x battery
Power supply: 230 V AC, 50 Hz
Power consumption: 500.00 W
Output power: 250 W RMS
Power connection: Fixed power supply cord with safety plug
Frequency range: 80 - 14000 Hz
S/N ratio: 75 dB microphone, 85 dB line
THD: 0.5 % at 1 kHz
Cooling: Cooling fan
Impedance: Public address systems 100V; 4-16 ohms; Public address systems 70V
Control: IR remote control
Audio player: USB + SD
Circuitry: Class AB
Controls: Power on/off transient; Overvoltage; short-circuit

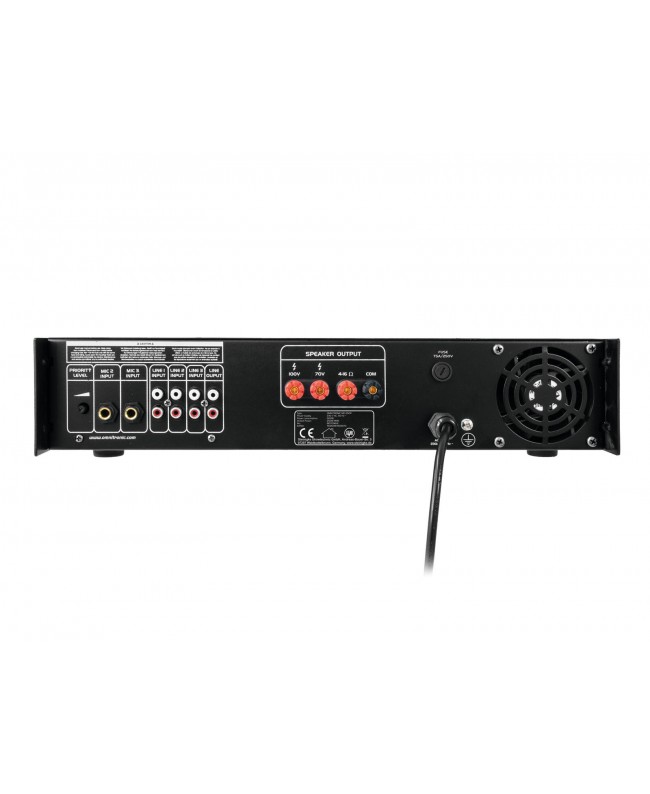

Connections: Input: microphone via 2 x 6.3 mm plug (unbal.), Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 3 x stereo RCA 0.3 V, Output: line via 1 x stereo RCA 0.3 V, Output: speaker via screw terminal
Equalizer: Master: 1 x 2-band tone control mono
Music format: MP3
Number of files: Max. 999
Available storage media: USB devices/SD cards max. 32GB (FAT 32)
Housing design: (19) 48.3 cm rack installation 2 U
Dimensions: Width: 48.3 cm, Depth: 40 cm, Height: 8.9 cm
Weight: 10.30 kg
Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
