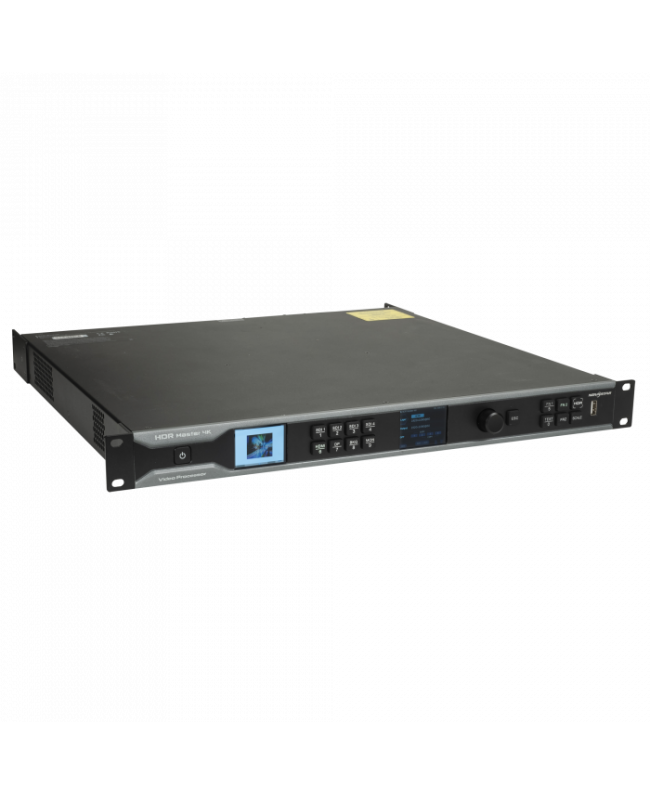

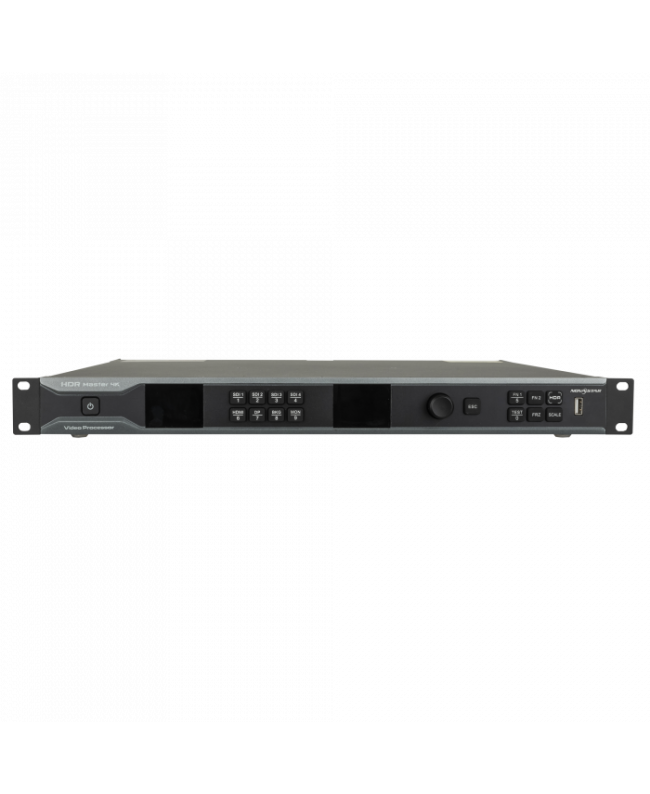

Novastar HDR Master 4K

Specifications

Inputs

• DP 1.2: 1
• HDMI 2.0: 1
• 12G-SDI: 4
• USB 2.0 (In): 3

Outputs

• HDMI 2.0 (Out): 2
• HDMI (for control): 1
• 12G-SDI (Out): 4

Optical

• SFP Slot Type: 10G
• SFP Slot Quantity: 4

Extra Functions

• Scaler Function: Yes
• Image Mosaic: Yes
• Levels: 1
• GenLock: In and Out
• Background Image: Yes
• Logo: Yes

Control and Programming

• Display: LCD
• Screen size: 2 ”
• Maximum Input Resolution: 4K x 2K
• Maximum Output Resolution: 4K x 2K

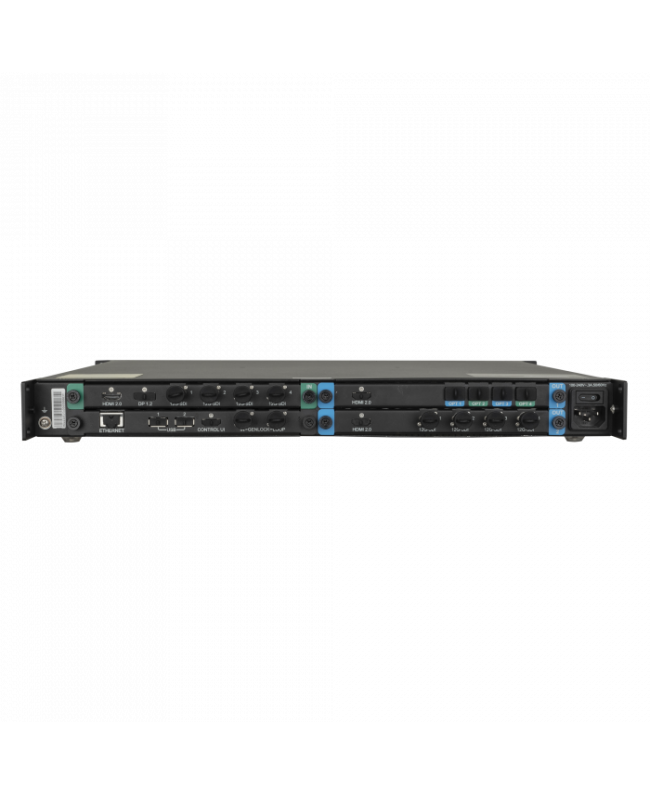

Connections and Electrical Features

• Ethernet Ports: 1
• Power Supply: 100-240 V AC 50/60 Hz
• Power consumption: 120 W
• Power input connection: IEC
• Data input connection: RJ45

Mechanical features

• Width (excluding handles): 482 mm (18.976″)
• Height (handles excluded): 45 mm (1.772″)
• Depth (handles excluded): 442 mm (17,402″)
• Weight: 7.9 kg (17,416 lb)
• Flightcase size: 19”
• Rack unit: 1 U
• IP rating: IP20 (indoor use only)
• Housing: Steel
• Color: Black

Product Features.

• Cooling: Active

Thermal Characteristics.

• Maximum surface temperature: 45 °C (113 °F)
• Operating humidity: 10-90 %rH

Parts Included

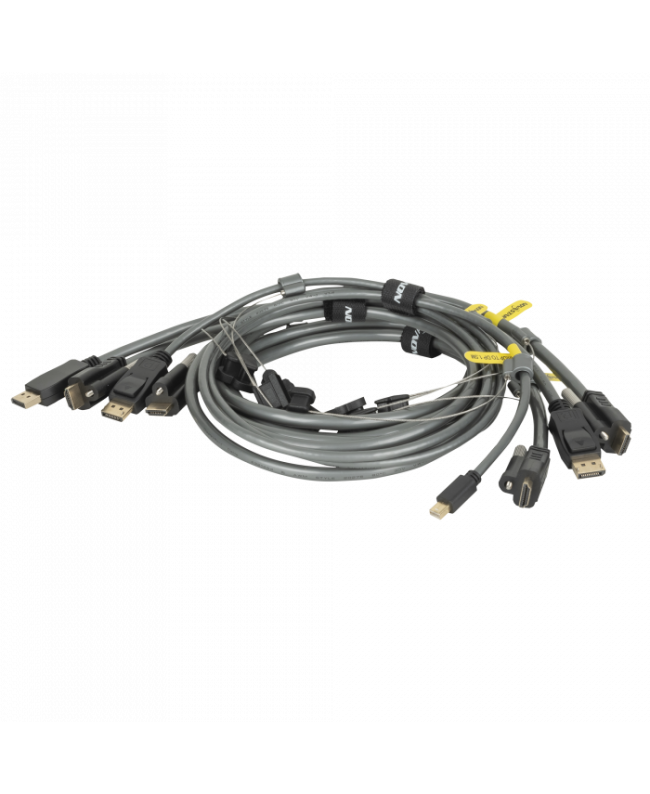

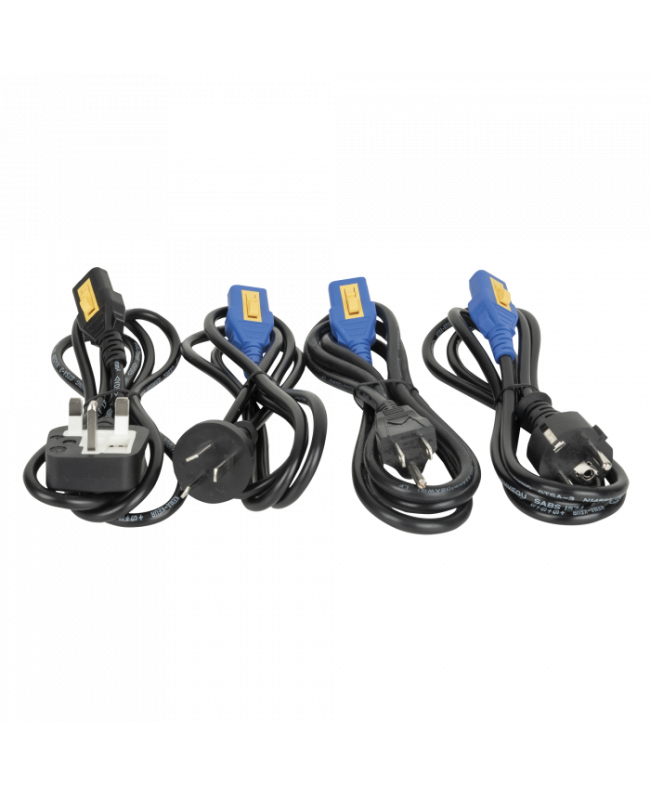

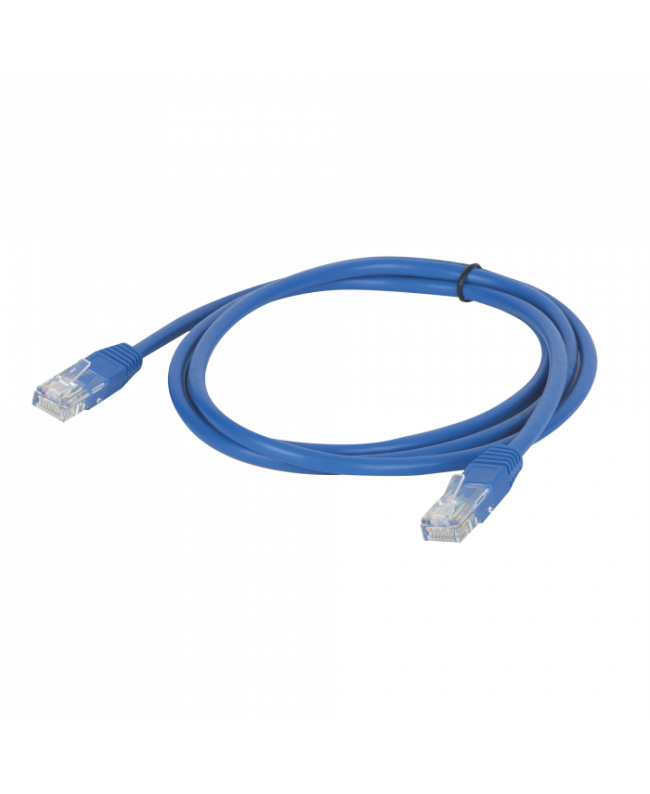

• Cables included: CAT-5 cable, DP-DP cable, HDMI-HDMI cable, IEC cable, Mini DP- Mini DP cable
