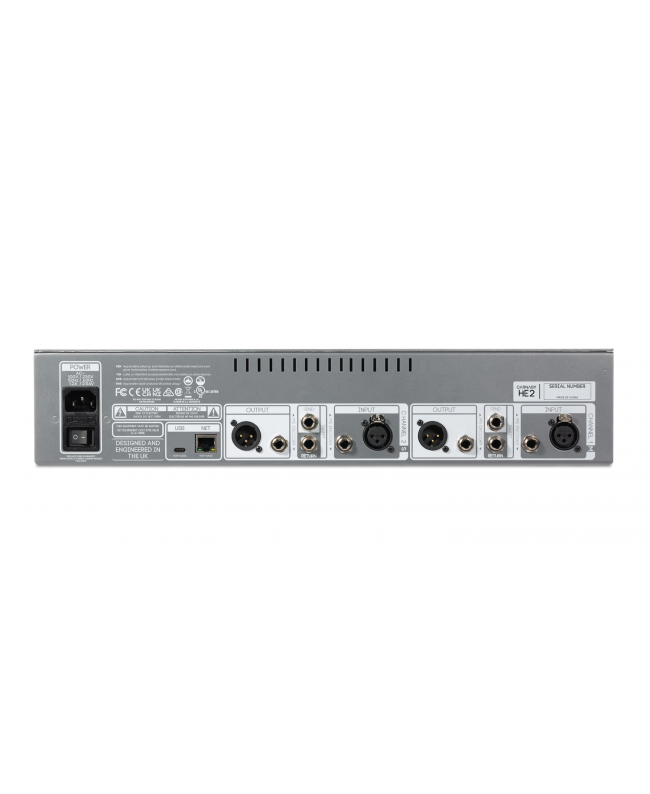

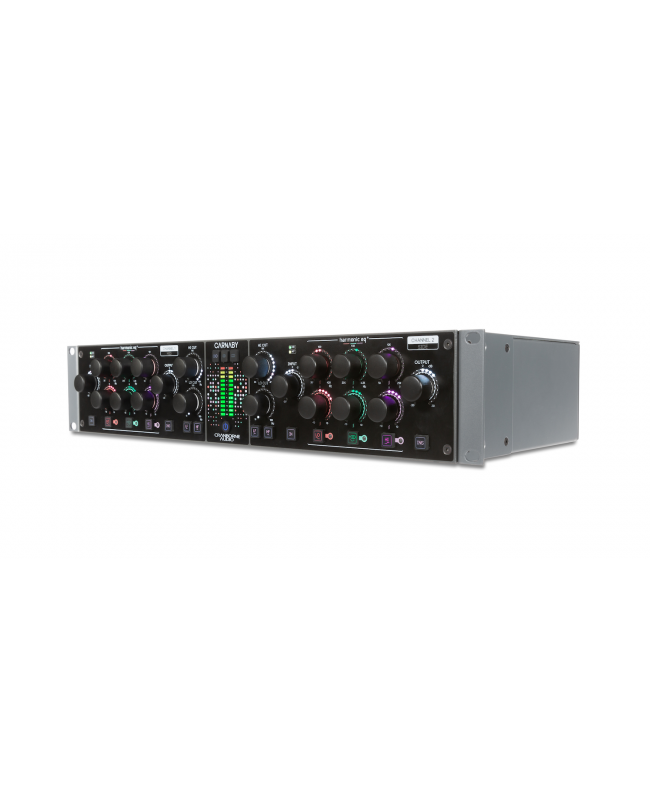

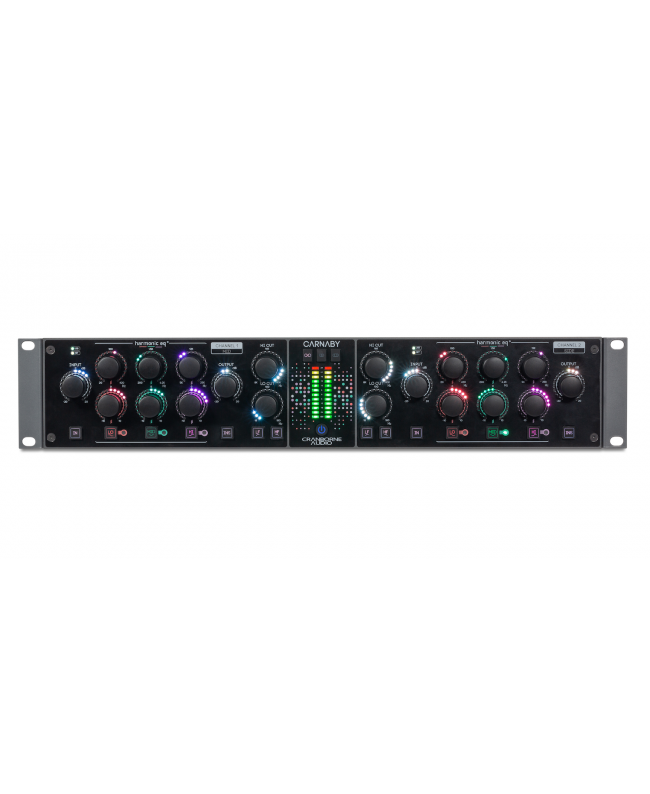

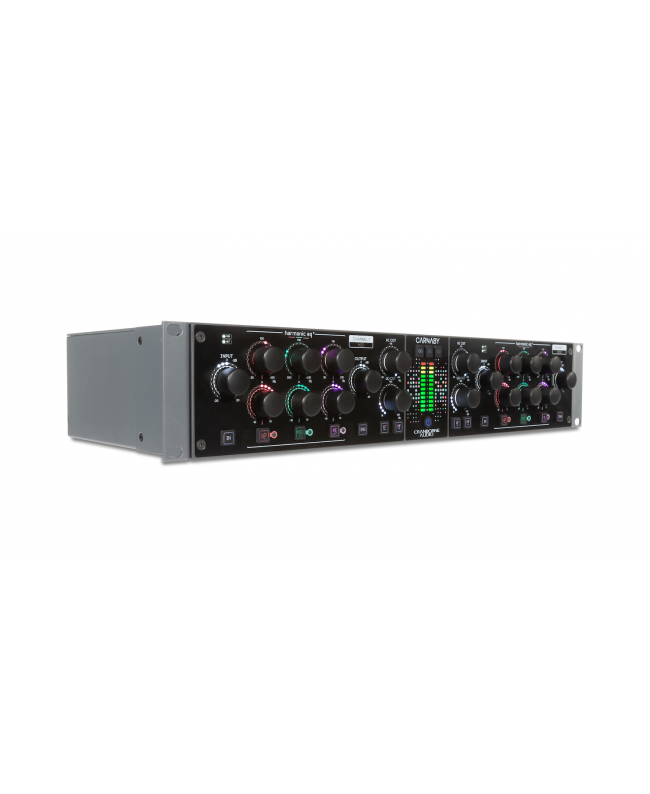

Cranborne Audio Carnaby HE2

Technical Data

• Test Signal Path
• APx555 (Line Out) - Input - Line Output - APx555 (Line In)
• Max Input Level +26.0dBu (<0.003% THD)
• Max Output Level +26.0dBu (<0.003% THD)
• Noise Floor <-93dBu all bands bypassed
• Input Impedance Line = 10 kOhms
• Output Impedance Line = 150 Ohms
• Current Draw 140mA per rail - idle, 160mA peak

EQ Specifications

• Hi Band
• Filter Type
• High Shelf Filter
• Frequency Range
•  5kHz - 25kHz
• Boost/Cut ±12dB,  @ -6dBu
•  +13dB, - 18dB, @ +14dBu
• Harmonics
• ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
• Mid Band
• Filter Type Peak Filter
• Frequency Range 200Hz - 6.2kHz
• Boost/Cut ±5dB @ -6dBu
• +10dB, - 18dB @ +14dBu
• Harmonics ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
• Lo Band
• Filter Type Low Shelf Filter
• Frequency Range 20Hz - 420Hz
• Boost/Cut ±8.5dB @ -6dBu
•  ±12dB @ +14dBu
• Harmonics ~8% THD+N (100Hz, +4dBu)
• ~12% THD+N (100Hz, +14dBu)
• Hi Cut Filter
• Type Progressive slope low-pass filter
• Slope 1st order - 3db per octave
• 2nd order - 6db per octave
• 3rd order - 12dB per octave
• Frequency Range -3db, 8kHz -40kHz
• Lo Cut Filter
• Type Progressive slope high-pass filter
• Slope 1st order - 6db per octave
• 2nd order - 12db per octave
• 3rd order - 18dB per octave
• Frequency Range -3db, 18Hz -180Hz
• 1/4" TRS Inserts
• Type Balanced, dedicated send & return, normalled
• Config Post M/S encoding & Carnaby, pre M/S decoding
• Max Input Level (return) +26.0dBu (<0.003% THD+N)
• Max Output Level (send) +26.0dBu (<0.003% THD+N)
• Mid/Side Type Encoder/decoder
• Matrix Sum-difference matrix

Environmental

• Operating Temperature +1 to 35 degrees Celsius
• Storage Conditions -20 to 50 degrees Celsius

Dims/Weights

• Unit Width 48.3cm (19”) (Rackmount)
• Height 8.9cm (3.5") (2u)
• Depth 23.6cm (9.3")
• Unit Weight 6kg (13lbs)
