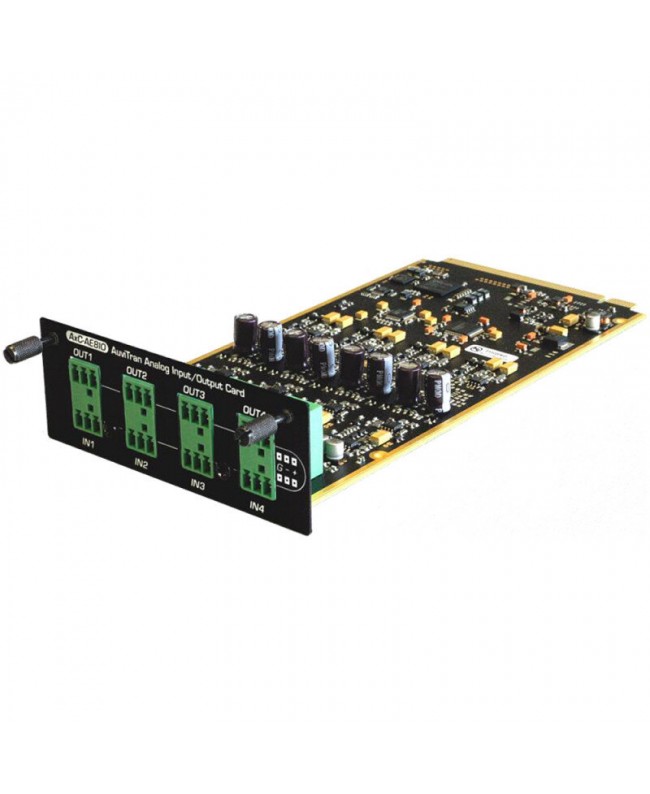

Agora AxC-AE8io

Analog input and output card with 4 IN and 4 OUT on Euroblock. Must be inserted into the available slot on the rear panel of the Agora H1 to build the audio bridge.

Ax. C-AE8IO provides 8-channel high-end analog inputs / outputs with Euroblock connectors. It combines high-performance A/D and D/A conversion chips with excellent circuit design in an Ax. C card format for high-end fixed installation applications.

Perfectly meets the constraints of high-power sound reinforcement systems for professional audio applications, thanks to an intelligent design that avoids noise during power-up and power-down

Fine level calibration is possible as required in many applications in professional audio systems: a digital attenuator / gain in 0.5 d. B steps from -115 d. B to and #43;12 d. B and 2 hardware reference level pads of and #43;10 d. Bu or and #43;24 d. Bu fully controllable via software

The attenuation gain setting and VU meters can be monitored and controlled individually per channel, via a network, for remote management from virtually any location

• Main features
• 4 Analog audio inputs and 4 analog outputs on one Ax. C card for the Auvi. Tran Audio Tool. Box platform
• High-performance balanced inputs and outputs for high-end professional fixed installations
• Individual gain control for inputs and outputs
• Euroblock connectors
• Remote management with AVS-Monitor software via the Ether. Sound network
• Dedicated control page for remote monitoring and control of all card parameters
• Dynamic range and gt; 112 d. B (A-weighted)
• THD and #43;N and lt; 98 d. B
• Areas of use
• Stadiums, concert halls, exhibition venues and conference centres
• Paging and public address systems in museums, theme parks, resorts, transport terminals
• Live broadcast, live broadcasts and OB vans
• Theatres, bars, pubs and discos
• Recording studios
