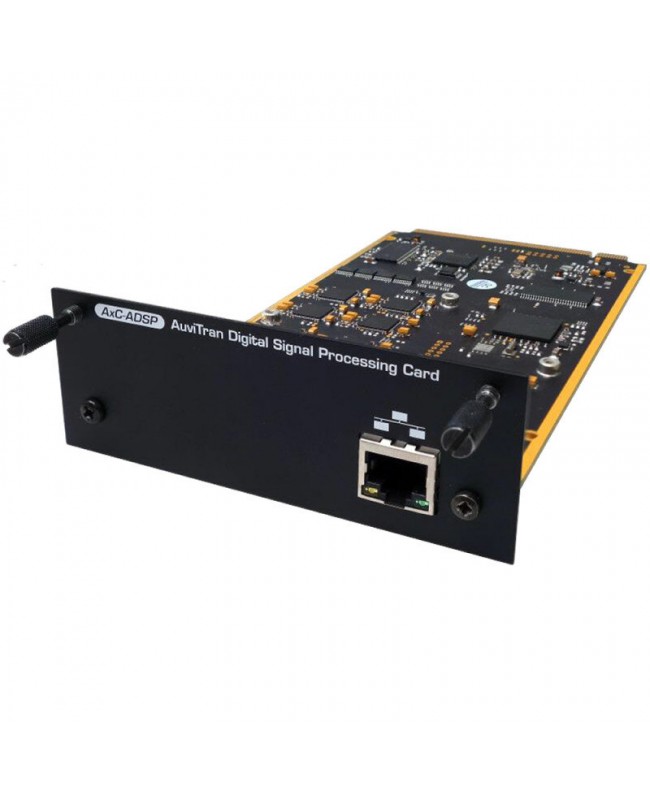

Agora AxC-ADSP

ASRC / DSP card, remote IP control over RJ45. Configurable as 64 x 64 ASCR or 64 x 64 DSP mixer 128 x (EQ and #43; LC and #43; delay 1.7 s). It must be inserted in the slot available on the rear panel of the Agora H1 to build the audio bridge.

Using a slot of one of the two Tool. Boxes, the Ax. C-ADSP can act as a DSP (Digital Signal Processing) card or ASRC (Asynchronous Sample Rate Conversion) card. ASRC allows up to 64 x 64 audio channels to be exchanged between an Ax. C card running at different frequency or clock domain than other Audio Tool. Box interface cards.

The DSP adds Tool. Box audio processing while simultaneously converting your Dante, AES67, MADI, Ether. Sound, Cobra. Net, AES3... analog world.

Ax. C-ADSP is a compact and efficient solution for processing audio channels between different networks and audio interfaces or for exchanging audio signals operating at different frequencies.

Exchange of audio signals from different types of interfaces (Dante, AES67, MADI, AES3,...) by resynchronizing different clock sources between the digital audio system of a stadium, theatre, live concert and radio stations o television

A box to equalize, mix, delay inputs from any type of audio interface: MADI, AES67, Dante, Ether. Sound, Cobra. Net, AES3...

• Main features
• In DSP mode, the Ax. C-ADSP can process 64 inputs from different interface cards and generate 64 different processed audio outputs to other cards:
• 64 Mixers with 64 audio inputs
• 128 X 2.7 s delay for audio inputs / outputs
• 128 X 8-band EQs
• 128 X limiter / compressors
• Universal HTML5 / Web 2.0 interface
• Quick scene management to change DSP processing
• Compatible with W10, Mac OS, IOS, Android, Linux
• Ax. C-ADSP applications
• To quickly and easily swap a large number of audio channels between two different audio worlds without asking to synchronize them together
