Agora AXC-AS16O V2

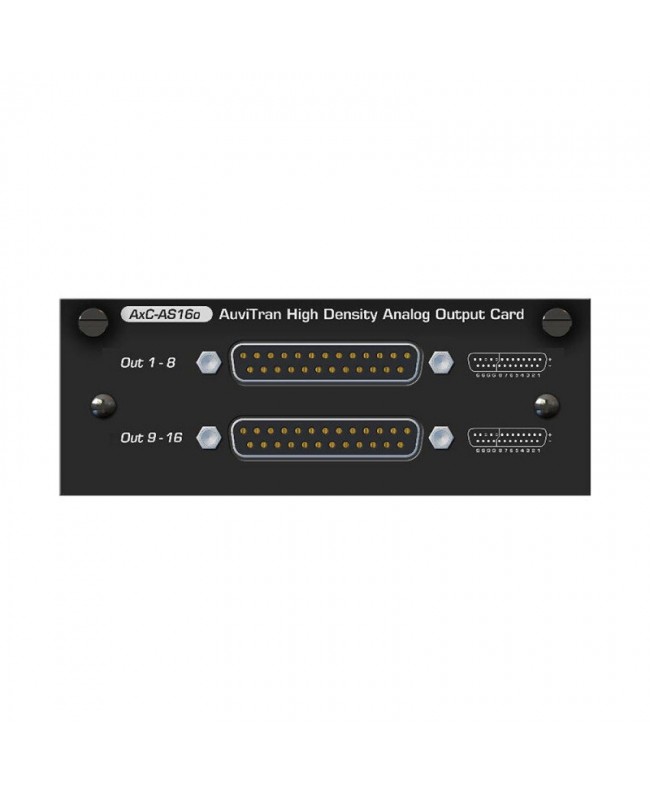

The Ax. C-AS16O V2 is a 16-channel high-density analog output card on 2 x DB-25 connectors that combines high-performance D/A conversion chips in an incredibly compact size for high-end professional audio applications. It must be inserted in the slot available on the rear panel of the Agora H1 to build the audio bridge.

An intelligent internal design that reduces loud noises during power on and off, meeting the constraints of using high power sound amplification systems

Fully software controllable digital attenuation in 0.5 d. B steps to allow fine-tuning to address a wide variety of applications in professional audio systems

• Main features
• 16 High quality balanced outputs with dynamic range and gt; 112 d. B and THD and #43;N and lt;-90 d. B
• Individual gain control of each output
• 2 Sub-DB25 female connectors
• Applications
• Ax. C-AS16O V2 is suitable for all professional applications that require a large number of high-quality analog outputs with small dimensions:
• New standards in quality, price and density ratio for professional audio applications
• Large analog line output capability with high performance, high class D/A converter chip and excellent circuit design
• Attenuation/gain settings and VU-meter can be individually controlled and monitored per channel via network for remote management virtually anywhere
• Dedicated control page to monitor and control all board parameters (gain, mute, phase, level on each channel, pre-amp values, VU-meter)
