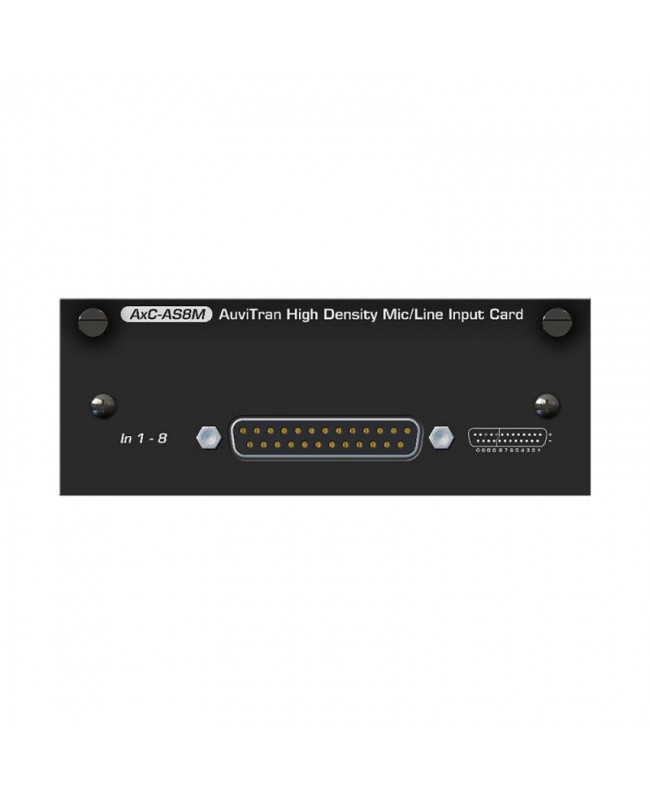

Agora AXC-AS8M V2

The Ax. C-AS8M V2 provides 8 high-end MIC / line inputs (both line and microphone level) using just one slot, with incredible density. It must be inserted into the slot available on the rear panel of the Agora H1 to build the audio bridge.

Attenuation / gain settings and VU-meter can be individually controlled and monitored per every channel via network for remote management from virtually anywhere

• Applications Ax. C-AS8M V2
• Suitable for all professional applications that require a large number of high quality MIC / line inputs with small dimensions:
• 8 High-performance microphone and line preamplifiers, high-class A/D converter chip, excellent circuit design
• The Ax. C-AS8M V2 board sets new standards in quality, price and density ratio (number of channels per slot) for professional audio applications
• Activation of and #43;48 V Phantom power for each channel, preamp value setting
• Digital 0.5 d. B linear step attenuator / gain and -56 d. Bu to and #43;24 d. Bu input sensitivity
• Main features
• 8 Balanced MIC / line and #43; high quality preamplifiers
• Input sensitivity from and #43;24 d. Bu to -56 d. Bu
• Analog gain range: 0 to and #43;80 d. B (0.5 d. B increments)
• E.I.N. and lt; -126 d. Bu
• Dynamic range and gt; 115 d. B(Aw)
• THD and #43;N and lt; -90 d. B
• and #43;48 V phantom power, individually controllable for each input
• 1 X DB25 female connector
• Control page dedicated to monitor and control all board parameters (gain, phantom power on each channel, pre-amp values, VU-meter)
