Agora AxC-AVB Accessories for AV Networking
  • -26%
  • New

Agora AxC-AVB

€3,146.00
€2,339.00 -26%
Tax included
Lowest price within the last 30 days: €2,339.00

AVB MILAN card with 32 IN and 32 OUT on etherCON with remote IP control on RJ45

Out of Stock

Free shipping

Compare

wishlist

Agora AxC-AVB

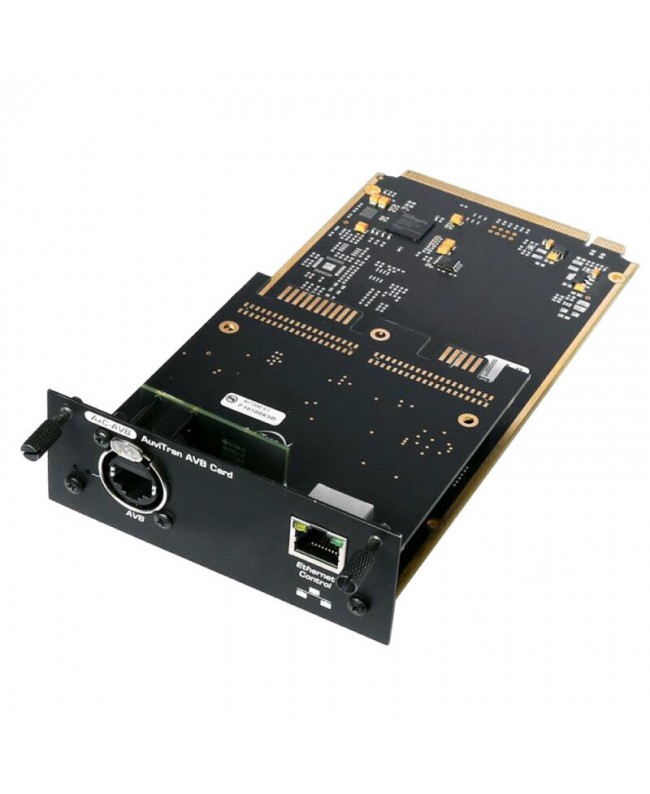

AVB MILAN card with 32 IN and 32 OUT on ether. CON with remote IP control on RJ45. It must be inserted into the slot available on the rear panel of the Agora H1 to build the right audio bridge. Using just one slot in the Tool. Box, the Ax. C-AVB can connect the AVB network and any other audio or network connections in the rack. The Ax. C-AVB card provides a powerful and cost-effective gateway between AVB devices and other audio interfaces or different audio networks.

  • Main features
  • 1 Ether. CON connector for audio connection and remote control over the AVB network
  • 1 RJ45 ethernet connector for remote control over a standard IP/Ethernet network
  • Remote management with AVS-Monitor or via UDP/IP for third party remote control
  • AVB MILAN compatible features
  • Stream formats supported:
  • AAF
  • CRF
  • IEC61883-6 (AM824)
  • Clock synchronization capability:
  • CRF
  • Stream
  • Audio streams and channels capability:
  • 4 X 8 channel streams at 48 k. Hz
  • 2 X 8 channel streams at 96 k. Hz
  • Number of inputs channels: 32 x input channels at 48 kHz or 44.1 kHz16 x input channels at 96 kHz or 88.2 kHz
  • Number of outputs channels: 32 x output channels at 48 kHz or 44.1 kHz16 x output channels at 96 kHz or 88.2 kHz
  • Number of input streams: 4 x AVB input streams of 8 channels at 48 kHz or 44.1 kHz2 x AVB input streams of 8 channels at 96 kHz or 88.2 kHz
  • Number of output streams: 4 x AVB output streams of 8 channels at 48 kHz or 44.1 kHz2 x AVB output streams of 8 channels at 96 kHz or 88.2 kHz
  • Audio sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Audio sample resolution: all AVB audio sample format between 8 to 32 bits
  • Audio ToolBox platform: AxC-AVB is one the cards for the AuviTran Audio ToolBox platform
  • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor any Audio ToolBox interface and provides enhanced control pages to manage the AxC-AVB card parameters.
  • OS Supported: Windows 10 for 32 or 64-bit versions
  • Dimensions: 20 x 10 x 4 cm‚ AuviTran Audio ToolBox platform cards format
  • Power supply: +12 V / +3.3 V - Through AuviTran Audio ToolBox backplane
  • Temp / humidity: Storage: -5 to 70 °C / 0 to 95% (non-condensing)Operating: 0 to 50 °C / 5 to 90% (non-condensing)
  • AVB connections: 1 x Neutrik etherCON for AVB
  • Remote connection: 1 x RJ45 connectors for remote control over any standard Ethernet IP network

AGO-AXC-AVB
