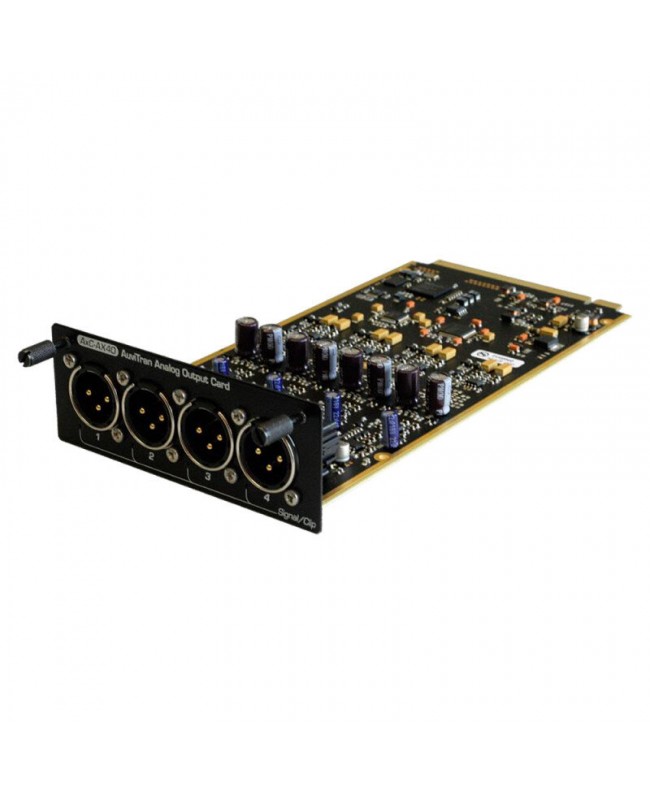

Agora AxC-AX4O

High-end 4-channel analog output board with XLR connectors. It must be inserted in the slot available on the rear panel of the Agora H1 to build the audio bridge. It combines high-performance D/A conversion chips with excellent circuit design in an Ax. C board format for high-end fixed installation applications.

Digital attenuation in 0.5d. B steps from -115d. B to and #43;12d. B and two hardware reference level pads of and #43;10d. Bu or and #43;24d. Bu, all fully software controllable to allow fine-tuning to address a wide variety of professional applications

• Main features
• 4 High quality balanced outputs with dynamic range and gt; 115 d. B (A-weighted) and THD and #43;N and lt; -100d. B
• Professional XLR male connectors
• Remote management via
• Attenuation gain setting and VU-meter can be monitored and controlled individually per channel via network for remote management virtually anywhere
• Individual gain control of each output
• An intelligent internal design to reduce noise during startup and shutdown, meeting the usage constraints for high-power sound reinforcement systems
• Applications Ax. C-AX4O
• Live concerts and recording
• Live broadcast studios and OB Vans
• Theaters, bars, pubs and discos
• Recording studios
• Fixed installations
• Stadiums, concert halls
