Agora AxC-CN32io Accessories for AV Networking
  • -26%
  • New

Agora AxC-CN32io

€3,670.00
€2,730.00 -26%
Tax included
Lowest price within the last 30 days: €2,730.00

Cobranet card with 16 IN and 16 OUT on 2 x RJ45 (primary / secondary)

Out of Stock

Free shipping

Compare

wishlist

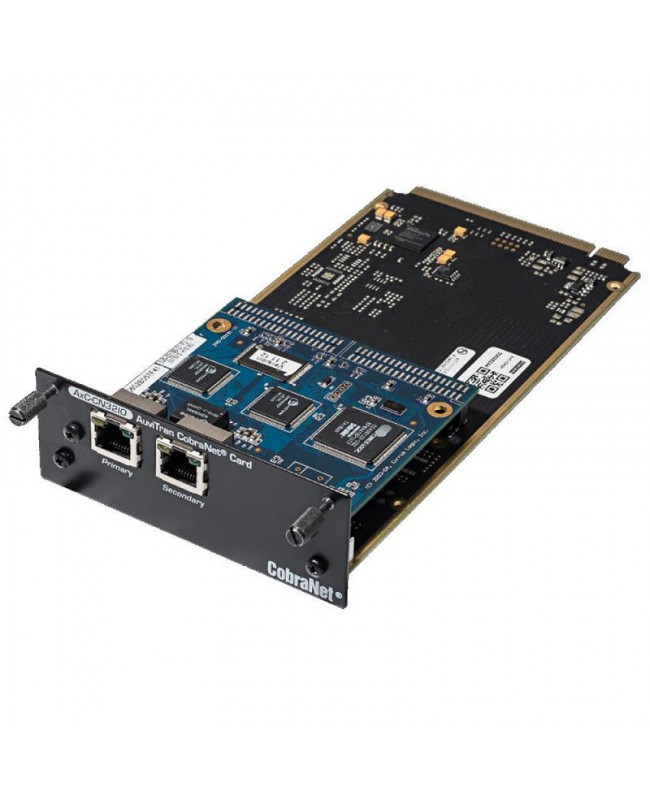

Agora AxC-CN32io



Cobra. Net card with 16 IN and 16 OUT on 2 x RJ45 (primary / secondary). It must be inserted into the slot available on the rear panel of the Agora H1 to build the right audio bridge. The Ax. C-CN32IO interface is the ideal solution for connecting up to 2 x 16 channels between a Cobra. Net device and other analog, digital or network devices.

  • Applications
  • In combination with other Auvi. Tran Audio Tool. Box boards, the Ax. C-CN32IO board opens up exciting interconnect possibilities such as:
  • Cobra. Net Bridge and gt; Dante
  • Cobra. Net Bridge and gt; MADI
  • Cobra. Net Bridge and gt; Ether. Sound
  • Cobra. Net Bridge and gt; AES/EBU
  • Cobra. Net Bridge and gt; Analog
  • Cobra. Net Bridge and gt; ADAT
  • Live applications (AVBx3/7 Stage. Box mode):
  • Concerts
  • Live broadcast, broadcast studios and OB Vans
  • Recording studios
  • Live applications (AVBx3/7 installation mode):
  • Stadiums, concert halls
  • Theaters, bars, pubs, discos
  • Main features
  • 16 Cobra. Net digital inputs and 16 Cobra. Net digital outputs on RJ45 connector
  • Redundant connection on RJ45 connector
  • Possible synchronization on Cobra. Net input
  • Remote management with AVS-Monitor software
  • Dedicated control page for remote monitoring and control of all card parameters
  • Audio patch with Cobranet Discovery Software
  • Number of Inputs: Up to 16 CobraNet inputs routed through the AuviTran ToolBox backplane from other cards
  • Number of outputs: Up to 16 CobraNet outputs routed through the AuviTran ToolBox backplane from other cards
  • Sampling frequency: 44.1 kHz / 48 kHz
  • Sample Format: Up to 24 bits
  • Synchronization: Possible synchronization from CobraNet input
  • Audio ToolBox platform: AxC-CN32IO is one of the cards of the AuviTran Audio ToolBox platform
  • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor an EtherSound network. It provides enhanced control pages to manage the specific parameters of the AxC-CN32IO card
  • CobraNet Discovery: For audio patch of any CobraNet device, and additional features: Remote Management possible via Simple Network Management Protocol (SNMP)
  • OS Supported: Windows 10, 8, 7, Vista, XP 32 or 64 bit
  • Dimensions: 200 x 100 x 40 mm‚ AuviTran Audio ToolBox platform cards format
  • Power supply: +12 V / +3.3 V - through AuviTran Audio ToolBox backplane
  • Storage:Temp/humidity: - 5 to 70 °C / 0% to 95% (non-condensing)
  • Operating:Temp/humidity: 0 to 50 °C / 5% to 90% (non-condensing)
  • Connectors: 2 x RJ45 connectors (main and redundant)

AGO-AXC-CN32IO
