Agora AxC-DANTE

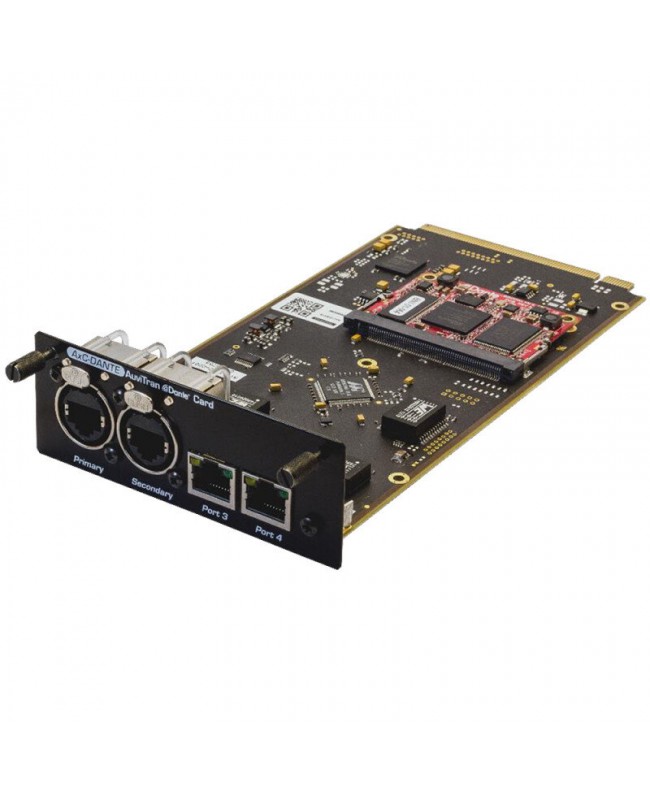

Ax. C-DANTE card with 64 IN and 64 OUT with 4 Gigabit ports on 2 ether. CON and 2 RJ45 and remote IP control. It must be inserted into the slot available on the rear panel of the Agora H1 to build the right audio bridge. Using just one slot in the Tool. Box, the Ax. C-DANTE allows you to control Dante networks and also connect them with other network configurations.

Dante bridge in combination with any other Ax. C network card such as Dante-AVB, Dante-MADI, Dante-Ether. Sound bridges, thus intelligently combining connectivity

• Main features
• 64 Dante inputs and 64 Dante outputs
• Remote management with AVS-Monitor software
• An integrated switch with 4 gigabit ports
• 2 Ether. CON connectors (primary/secondary) for connection in switch or redundant mode
• 2 RJ45 Ethernet connectors (port 3 and port 4) for use as integrated Gigabit switch ports
• Ax. C-DANTE applications
• Combined with other Auvi. Tran Audio Tool. Box cards, the Ax. C-DANTE card opens up exciting possibilities for professional audio systems
• Up to 24 analog microphone inputs can be monitored directly from a Yamaha Dante console, just like the RIOTM Stagebox
• Can work as a virtual sound card with any standard ASIO, WDM or Core Audio interface
